Check Whether the Fault Is Intermittent

Check Whether the Fault Is Intermittent












- Turn the ignition switch to the ON position.

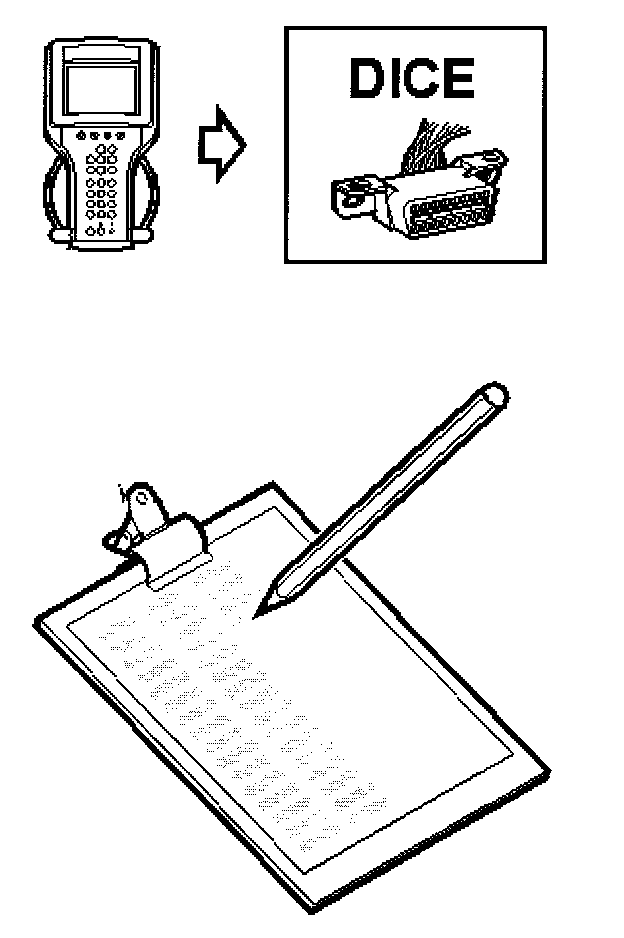

- Contact DICE.
- Obtain readouts of diagnostic trouble codes.
- Note all diagnostic trouble codes.

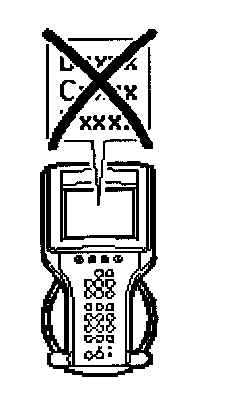

- Clear the diagnostic trouble codes in all systems.

Disconnect







- Disconnect the diagnostic tool from the vehicle (DICE).
- Turn the ignition switch to the OFF position.







- Turn the ignition switch to the ON position.

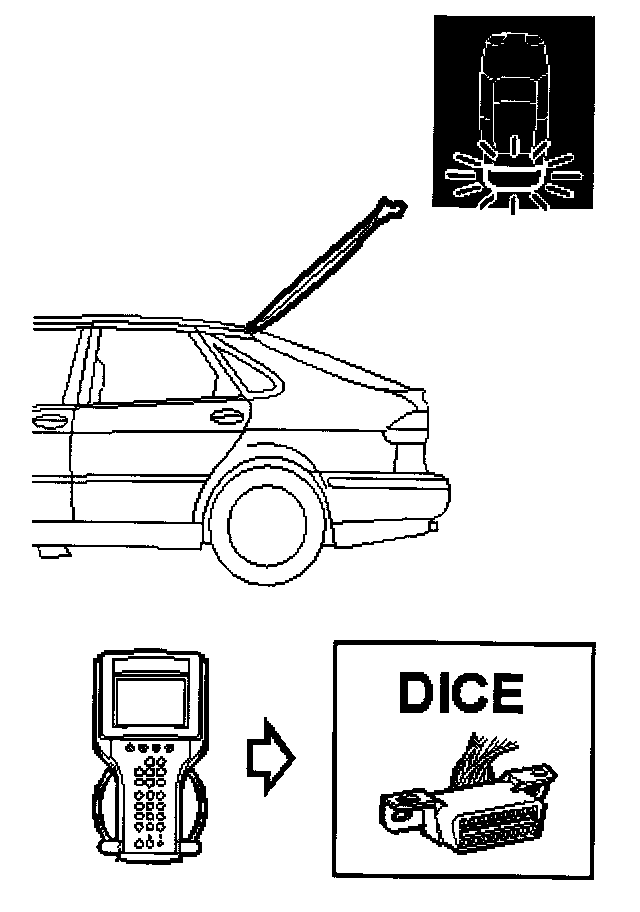

- Open and close the tailgate.
- Contact DICE.
- Obtain readouts of diagnostic trouble codes.

Is diagnostic trouble code B1235 present?

NO - Rectifying the Lead - II

YES - Rectifying the Lead - I
