Tie Rod End: Testing and Inspection

Track rod length





1. Adjust toe-in,

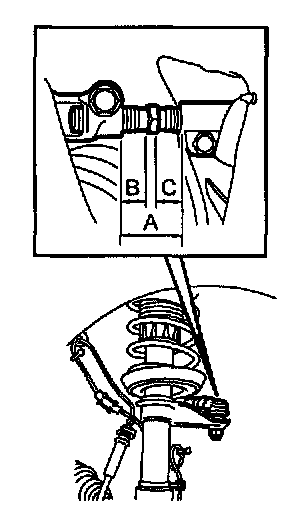

2. Measure A. The measurement must not under any conditions exceed 52 mm (2.0 inch).
3. Perform step 2 on the other side of the car.
4. Maximum allowable difference between B and C is 3 mm.
5. Adjust if necessary. After adjusting the length of the track rod, toe-in must again be checked.
6. Check the position of the steering wheel.
