Handbrake Switch

Handbrake Switch

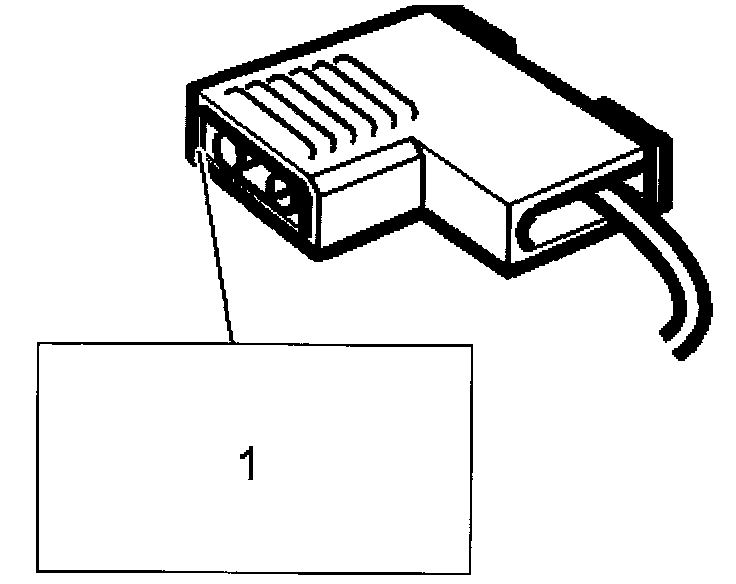

Unplug the connector:

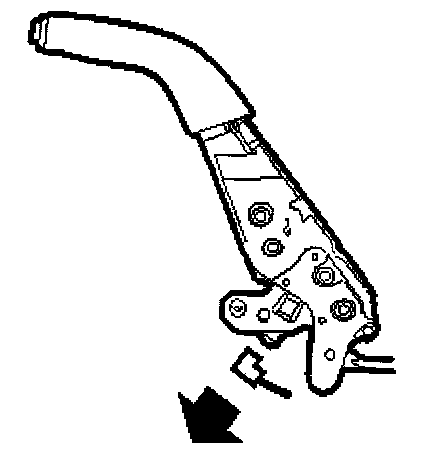

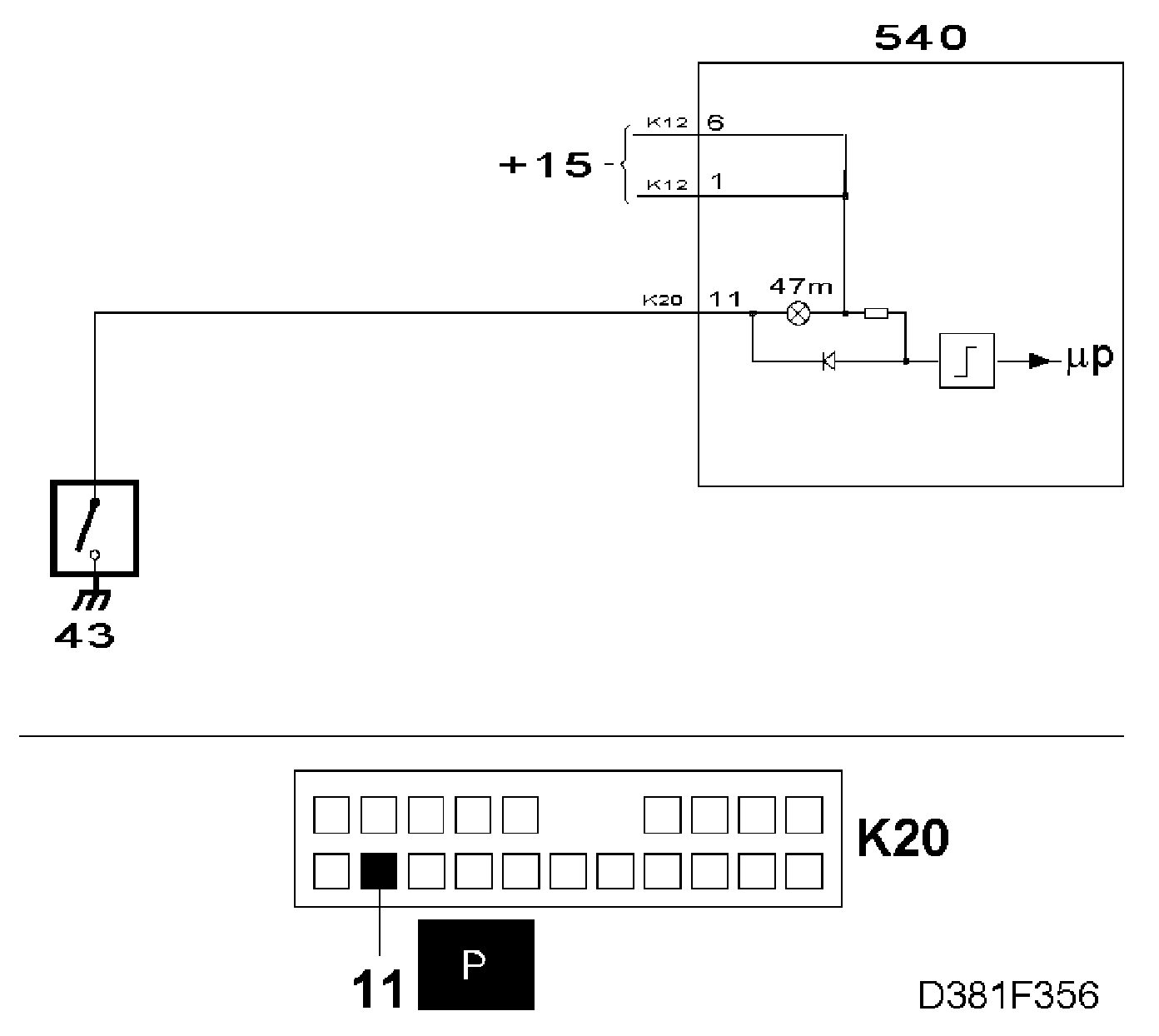

- Switch, handbrake (43)






















- Connect a jumper lead to a good ground.







- Turn the ignition switch to the ON position.







- The warning lamp should light up.

Is the function correct?

NO - Checking the Lead

YES - Changing Components - I
