Backrest, 40-Percent

To remove

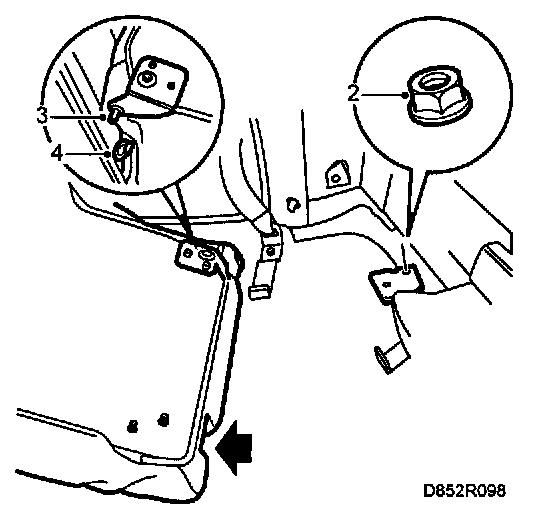

1 Release the backrest from the seat-belt member and fold it forwards.
2 Undo the bracket on the long load opening.
3 Pull the backrest away from the mounting by the long load opening and pull out the joint pin at the wheel housing.
4 Detach the upholstery tensioner and lift out the backrest.

To fit
Fit in reverse order
