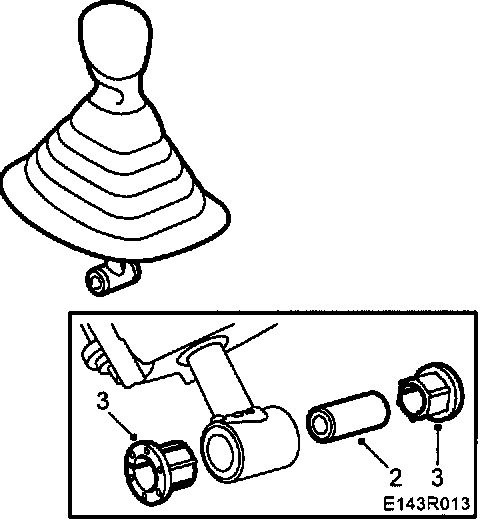

Lever Bushings


Change Bushes When There Is Play In The Joint.





1. Remove the selector rod, refer to Gear Lever.
2. Tap out the spacer sleeve using a drift.
3. Remove and change bushes.
4. Fit the spacer sleeve.
5. Fit the selector rod, refer to Gear Lever.
