To Remove


IMPORTANT: Cables, hoses, leads etc. are secured with hard plastic cable ties. After being tightened, the ends are cut off, leaving sharp edge at the fixing points. Be aware of the risk of injury due to these sharp ends of cable tie.

1. Place the car on a lift.
2. Place wing protectors over the wings to prevent soiling and damage to the paintwork.
3. Remove the front grille.





4. Remove the cover over the intake manifold.

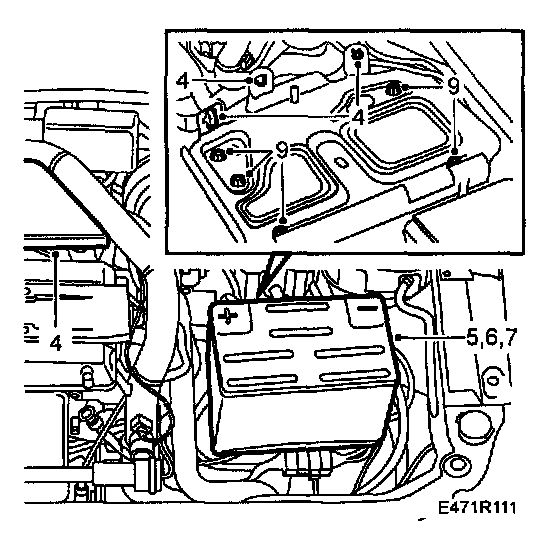

5. Remove the plastic cover from the battery.
6. Detach the battery leads from the battery.
7. Remove the battery.
8. Cut the cable ties from the wiring loom. Disconnect the upper mounting for the positive lead.
9. Remove the battery tray.

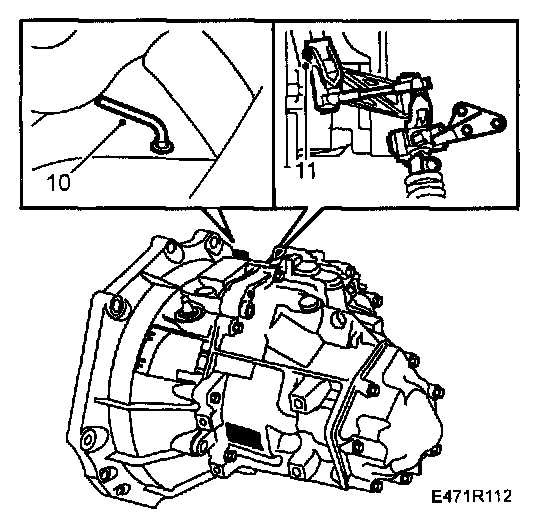

10. Engage 4th gear and remove the plastic plug from the gearbox. Lock 4th gear in the gearbox by inserting locking pin 87 92 335.
11. Remove the clip from above that secures the selector rod in the linkage on the gearbox.

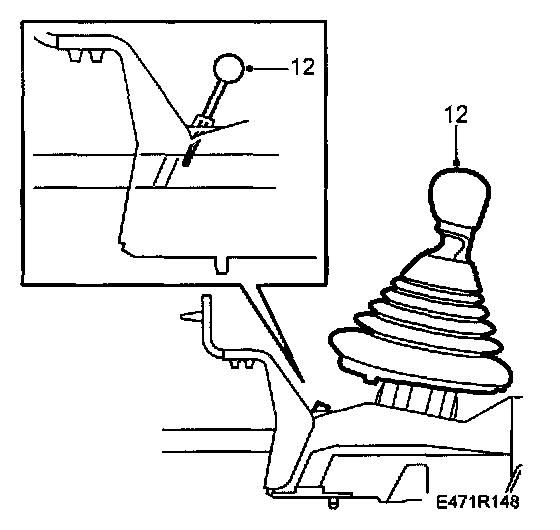

12. Lift up the gaiter.
Engage 3rd gear so that the selector rod disengages from the linkage and fit locking pin 87 92 632 in the selector lever housing.
13. Depress the clutch pedal about 50 mm with a brake bracket. This prevents the brake fluid from flowing out of the reservoir.

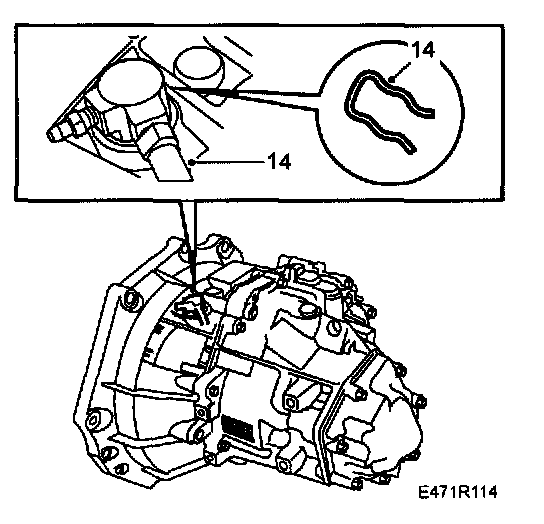

14. Remove the clip by the slave cylinder and disconnect the connection for the delivery line. Refit the clip.





15. Unplug the connector for the reversing lights.
16. Disconnect the positive lead's mounting on the engine.

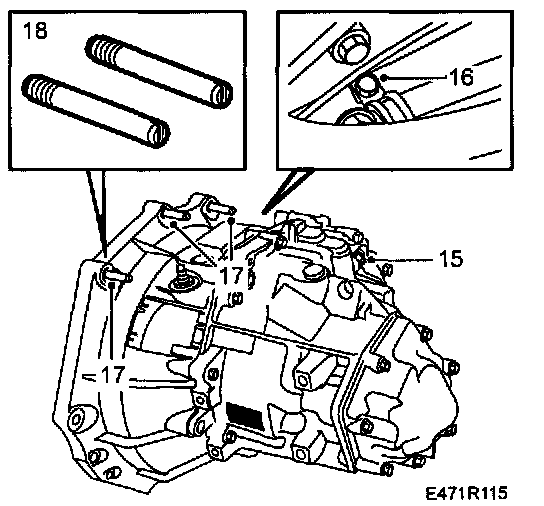

17. Remove the 3 upper gearbox bolts.
18. Fit locating studs 83 92 128 in the upper, outer screw holes in the engine.
19. Unplug the electric connection alt. electric connections for the oxygen sensor.





20. Disconnect the selector linkage by the gearbox.

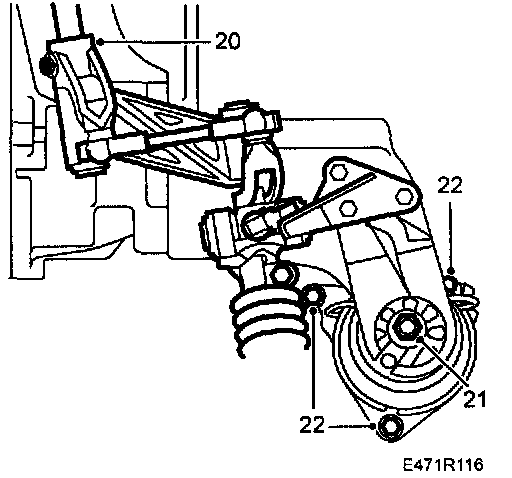

21. Remove the nut from the rear engine mounting.
22. Loosen the 3 screws that secure the rear engine cushion. Leave the screws in place.





23. Slightly lid the engine and gearbox with lining beam 83 93 850. Position the beam so that it rests on the edges of the wings near the wing retaining screws.
24. Remove the screws so that the torque arm releases from the subframe.
25. Raise the car.
26. Remove the front wheels.

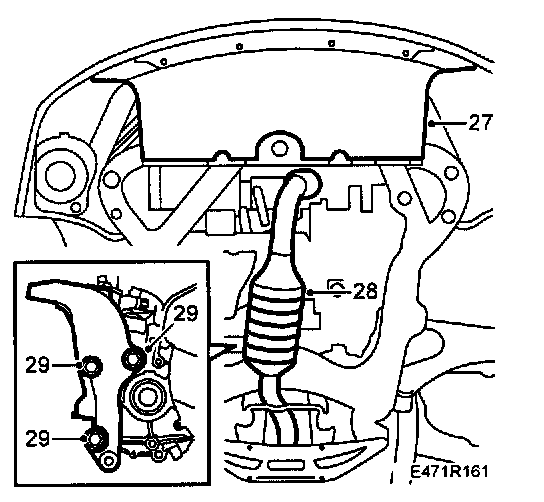

27. Remove the front cover, under the bumper and the cover for the belt circuit.
28. Remove the front exhaust system by first parting the flange against the turbo and then removing the rear mounting.
It is important that the exhaust system is removed in this manner since the flex gaiter may otherwise be damaged.
Also, be careful with the oxygen sensor(s).
29. Remove the rear engine mounting, torque arm and engine cushion. The gearbox linkage will follow along.

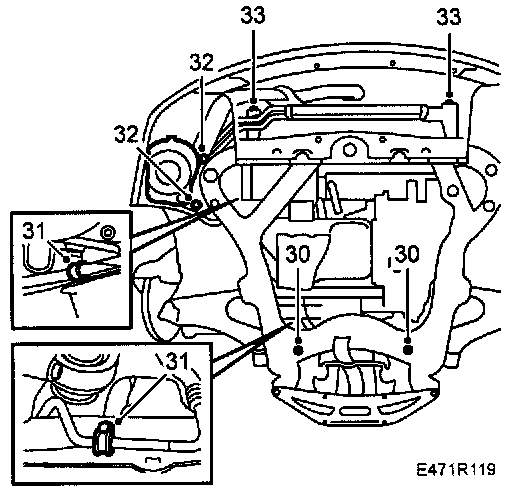

30. Remove the screws that secure the steering gear.
31. Remove the clips that secure the steering servo delivery line to the subframe.
32. Remove the air filter housing from the subframe.
33. Remove the AC-lines from the plastic clips on the subframe.
34. Remove the engine oil cooler from the charge air cooler (2 screws).
35. Route a strap 83 95 212around the radiator core and the radiator member to hold up the radiator assembly

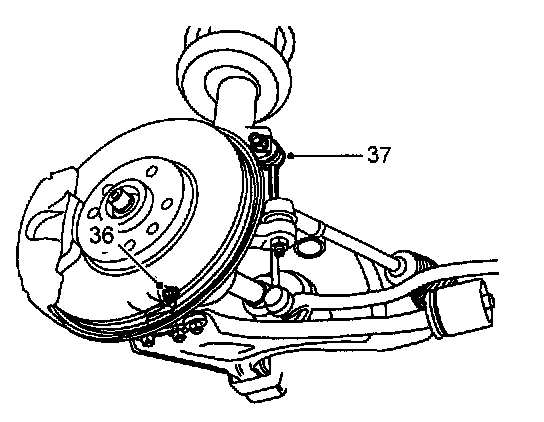

36. Remove the screws that secure the outer ball joints to the steering swivel member on both sides.
37. Remove the upper ball joint, on both sides, from the anti-roll bar. Offer resistance with an open 17 mm wrench so that the gaiter does not twist.





38. Remove the protective cover plate behind the flywheel.

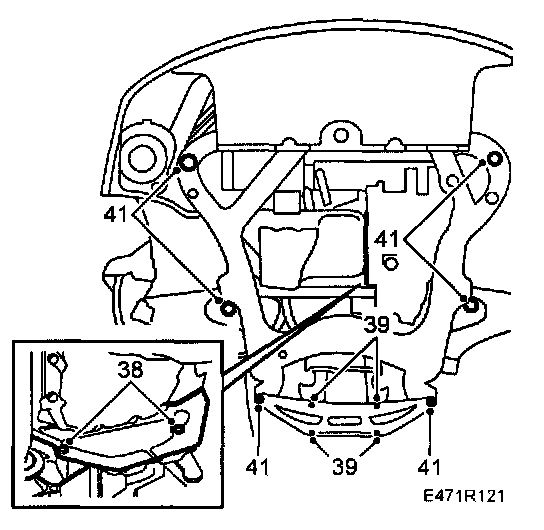

39. Remove the 4 screws that secure the rear support plate.
40. Position the lining trolley under the subframe. Trolley 83 94 793, parent fixture 83 94 801, adjusting feet 83 95 170, basic fixture 83 95 188 and assembly fixture 83 95 196.
41. Remove the 6 screws that secure the subframe. Retain any washers. (on chassis up to and including W3050999)
42. Lower the subframe and move it aside. At the same time, remove the front mountings (2) for the steering servo delivery line.
43. Drain the gearbox oil.
44. Remove the left drive shaft with removing tool 87 92 616 Suspend the shaft with a strap.
45. Lower the car.

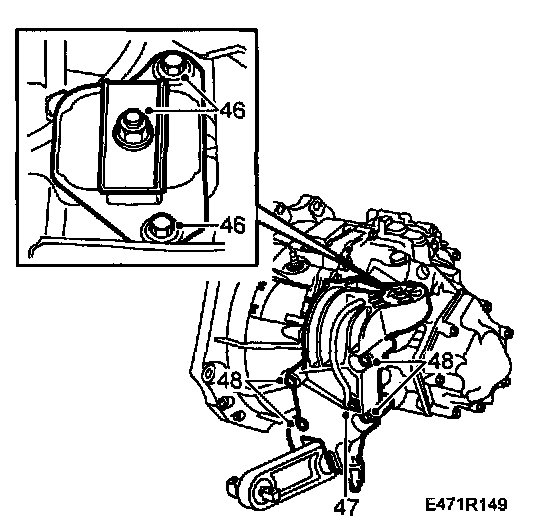

46. Mark the position and remove the screw from the led engine cushion.
47. Disconnect the ground lead from the gearbox mounting.
48. Remove the gearbox mounting from the gearbox.
49. Lower the unit so that the gearbox goes clear from the structural member
50. Raise the car.

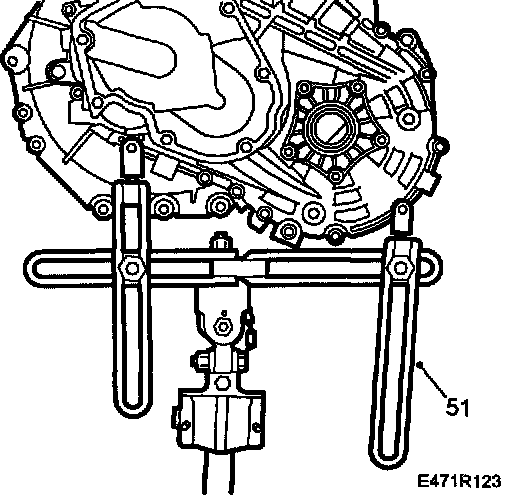

51. Fit lining tool 87 92 608 on a pillar-type jack.

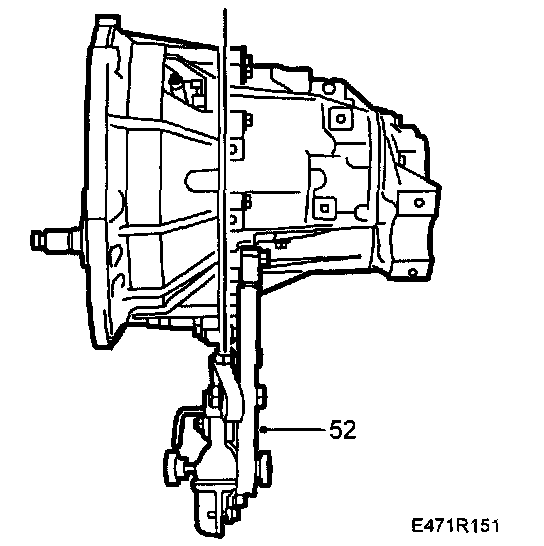

52. Adjust the lining tool so that it is centered in line with the gearbox center and mating face. Connect the lining tool to the gearbox

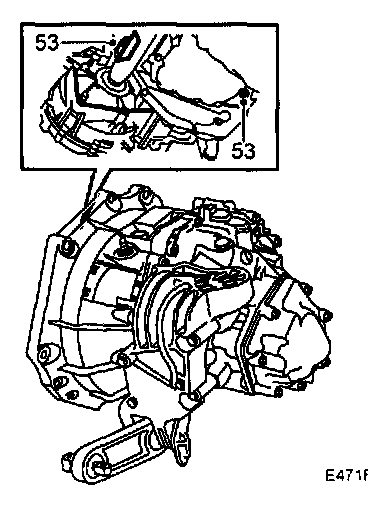

53. Remove the last 2 screws between the engine and gearbox.
54. Pull out and lower the gearbox.

WARNING: Take care not to tip the jack

55. Lift the gearbox from the jack and remove the lifting tool from the gearbox.
