Selector Lever

The selector lever must have been removed first.

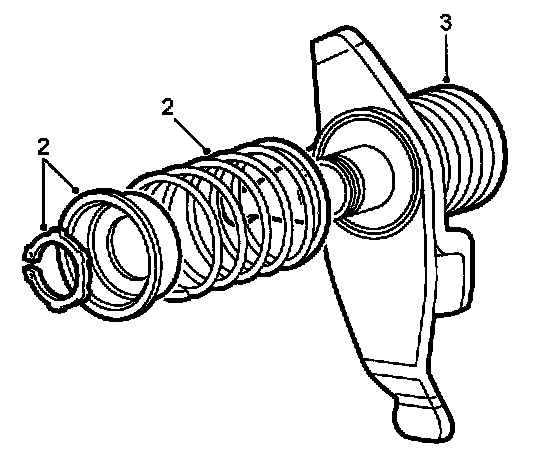

To Dismantle





1. Push down one of the springs and remove the circlip. Lift off and retain the spring and sleeve.
2. Remove the other spring and sleeve in the same way.

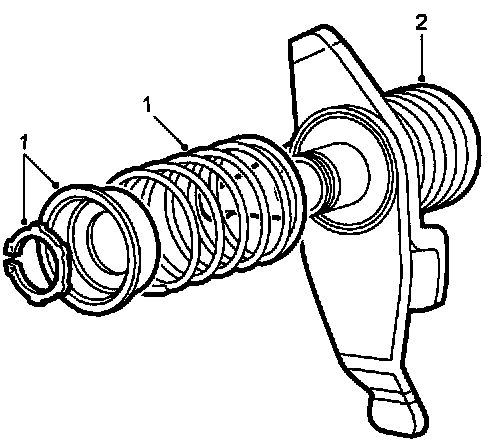

To Assemble





1. Fit springs to selector lever.

IMPORTANT: 1st and sleeve and spring are shorter.





2. Press down the spring and sleeve and fit a new circlip to the selector love
3. Fit the second spring and sleeve in the same way. Fit a new circlip.
