Selector Lever

To Remove
1. Remove the Selector lever housing Service and Repair

IMPORTANT: When working on a dismantled selector lever housing, the selector lever should be protected with foam rubber or the like.

2. Remove the Gear selector casing Assembly Lever Casing (Shift Knob)





3. Snip the cable tie holding the lead for the lighting button in place.
4. Snip the cable tie securing the lead for the electromagnet.

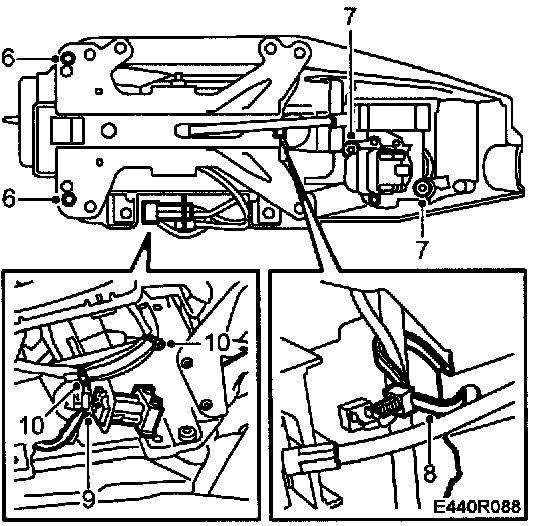

5. Unplug the electromagnet cable from the connector. Pin 5 and 6 Use Removal tool 85 80 151.
6. Remove the shift indication display. Remove the screws securing the ignition switch.
7. Drill out the rivets.
8. Dismantle the selector lever housing.





9. Remove the selector lever retaining bolt.
10. Remove the selector lever with holder from the base plate.
11. Remove the lock washer and tap out the spacer sleeve.
12. Detach the selector lever from the holder.

Fitting
1. Fit the selector in the holder.





2. Insert the spacer sleeve through the selector lever, ignition switch retaining catch, shift-lock retaining catch and holder. Fit new lock washer.
3. Fit the selector lever with holder into the groove at the front of the base plate.
4. Fit the bolt and tighten it.
5. Fit the selector lever and ignition switch in the selector lever housing. Place the sport button's lead in the clip.





6. NOTE: The selector lever housing does need to be riveted together.

7. Screw the ignition switch in place.
8. Fit a cable tie to hold the lead for the lighting in place.
9. Plug in the electromagnet's connector.
10. Insert a cable tie through the hole in the selector lever and round the electromagnet's and WINTER button's lead
11. Fit the gear selector casing, Lever Casing (Shift Knob)
12. Fit the selector lever housing, Service and Repair
