Starting System: Service and Repair

Replacing the clutch starting interlock contacts

To remove

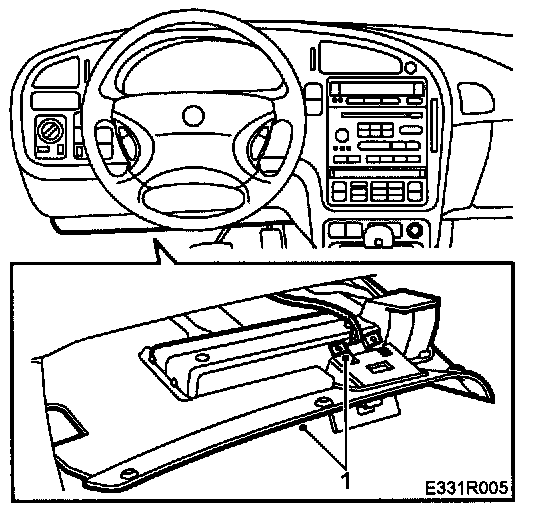

1 Remove lower panel from driver's side.

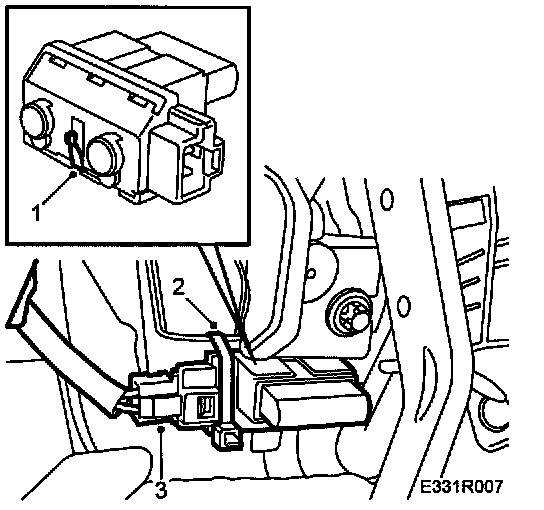

2 Unplug the connector from the contact.







3 Cut the cable tie.
4 Press in the catch and pull down the contact.

To fit

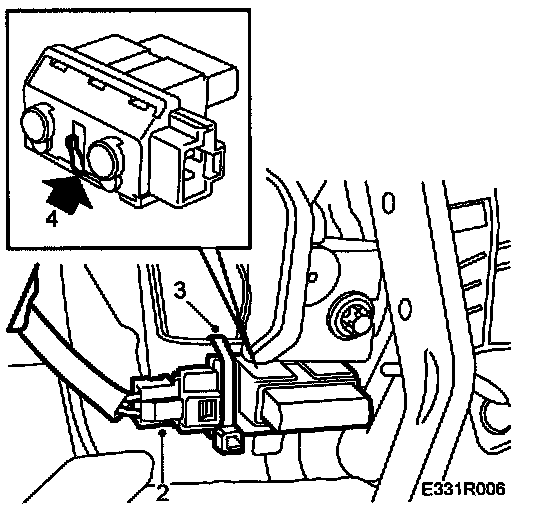

1 Replace the contact.
2 Fit a new cable tie.
3 Plug in the connector.

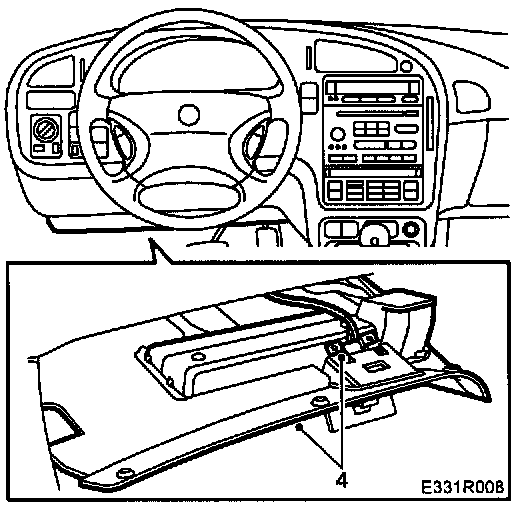

4 Replace the lower panel on the driver's side.
