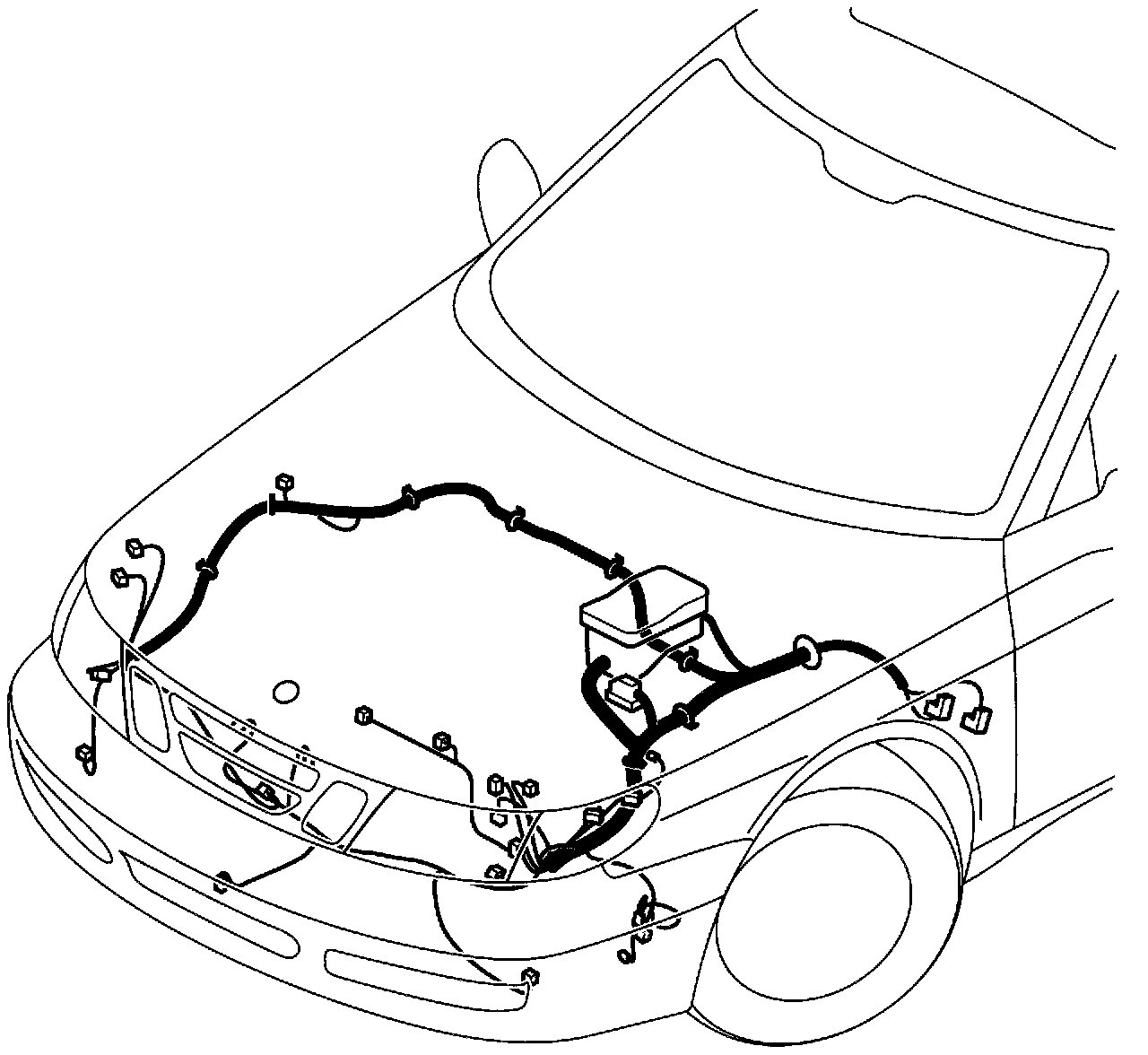

Front Wiring Harness

Front wiring harness, associated components:

SMS Component name
11FL Lamp, main beam, LH
11FR Lamp, main beam, right-hand
27FL Lamp, front direction indicator, LH
27FR Lamp, front direction indicator, RH
37FL Motor, radiator fan, LH
37FR Motor, radiator fan, RH
40FL Horn LH
40FR Horn RH
63a Motor, pump, washer fluid, headlamps
63b Motor, pump, washer fluid, windscreen
66FL Motor, headlamp wiper, LH
66FR Motor, headlamp wiper, right-hand
85FL Lamp, fog light, LH
85FR Lamp, fog light, RH
118FL Lamp, corner light, LH
118FR Lamp, corner light, RH
119FL Lamp, side reversing light, LH
119FR Lamp, side reversing light, RH
170 Compressor, A/C
195 Level switch, washer fluid
275 Siren, anti-theft alarm
280FL Motor, headlamp beam adjustment, RH
280FR Motor, headlamp beam adjustment, LH
286 Temperature sensor, outside air
298FL Wheel speed sensor, LH front
298FR Wheel speed sensor, RH front
321 EVAP canister purge valve
458 Pressure switch, vacuum
459 Motor, vacuum pump
547 Control module, ABS
620 Pressure sensor, A/C
H43-1 Connector
H43-2 Connector
