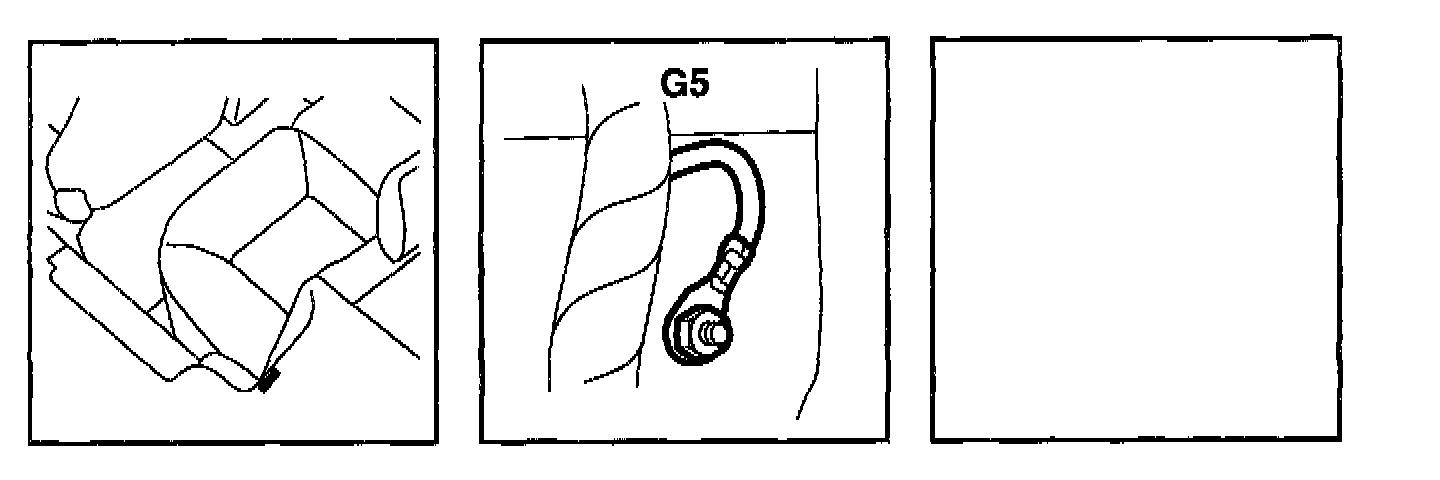

Grounding Point G5

The following components are connected to grounding point G5 under the left-hand corner of the rear seat:

64RL Heating pad, rear seat, LH
64RR Heating pad, rear seat, RH

Via crimp J93

209RL Lamp, courtesy light, rear, LH
323 Motor, fuel pump
