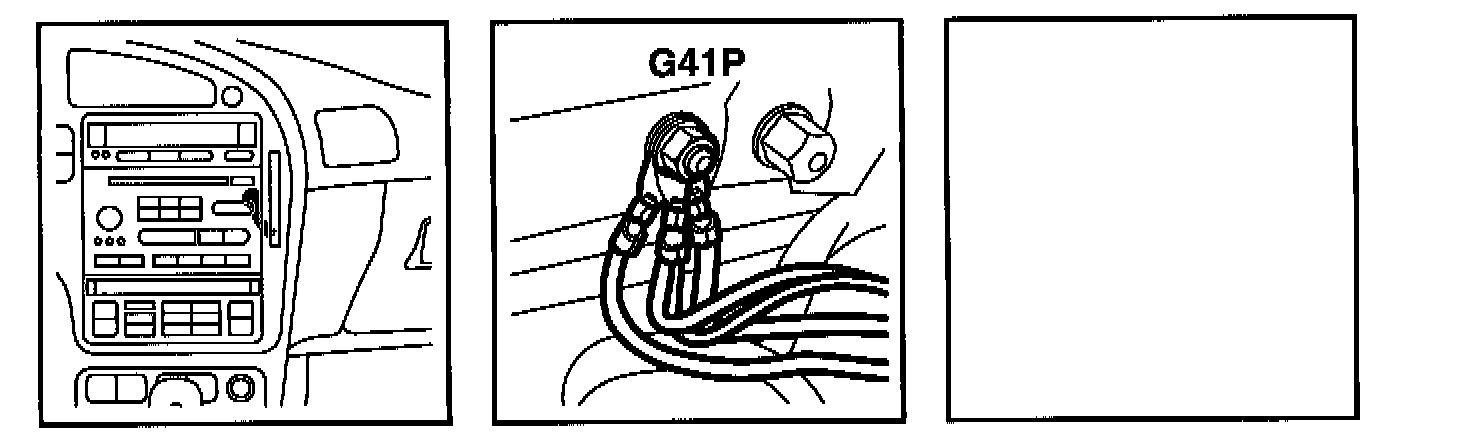

Grounding Point G41P

The following components are connected to grounding point G41P centre ground screw on centre of knee member (in compartment):


B. From Rev.1:
Via crimp J43

25 Switch, hazard flashers
61 Stalk switch, windscreen wipers
91 Lamp, selector lever position indicator lighting
252R Switch, electrically heated rear seat
375 Connector, mobile telephone
439 Solenoid, selector lever, SHIFT LOCK
445 Data link connector, 16-pin, CARB
615LH Switch, seat ventilation, LH seat
615RH Switch, seat ventilation, RH seat

Via crimp J45

48F Cigarette lighter, front
48R Cigarette lighter, rear (LHD)
148F Lamp, ashtray/cigarette lighter illumination, front
148R Lamp, cigarette lighter illumination, rear (LHD)
216 Control module, ACC
220 Fan control unit
504 Heater and ventilation control panel
