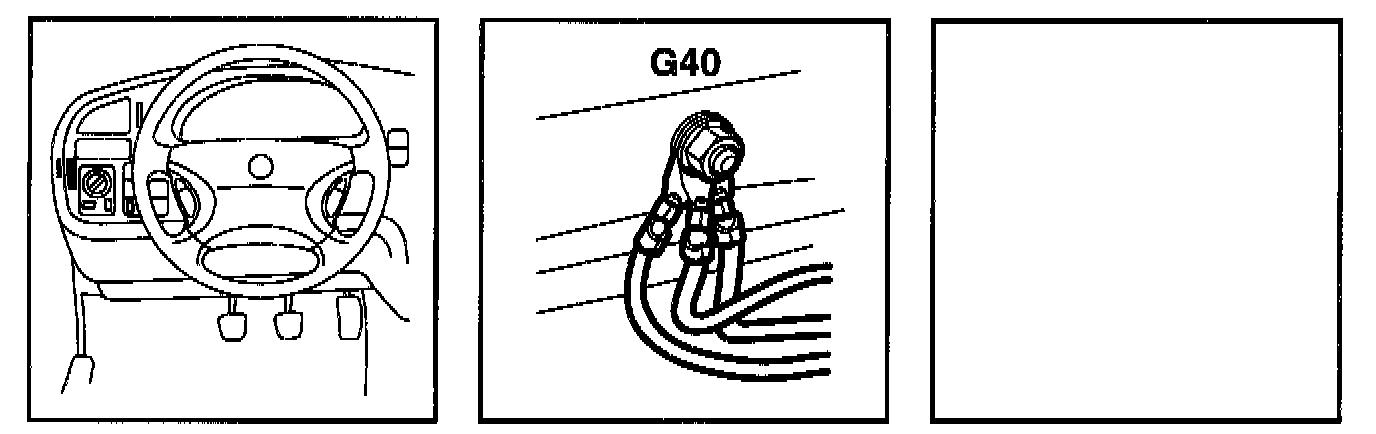

Grounding Point G40

The following components are connected to grounding point G40 in the compartment on LH side of knee member:


B. From Rev.1

G30 Grounding point in engine bay on side plate in front of LH wheel housing (LHD only)

Via crimp J42

10 Switch, lights
21 Relay, ignition switch
42 Level switch, brake fluid
242 Level switch, coolant
628 Control module, DICE

Via crimp J46 (RHD only)
19
267a Connector, radio, contact A
353 Main unit, audio system
354 Amplifier, audio system
359RH Lamp, vanity mirror, RH
613FL Lamp, floor lighting, front LH
613FR Lamp, floor lighting, front RH
