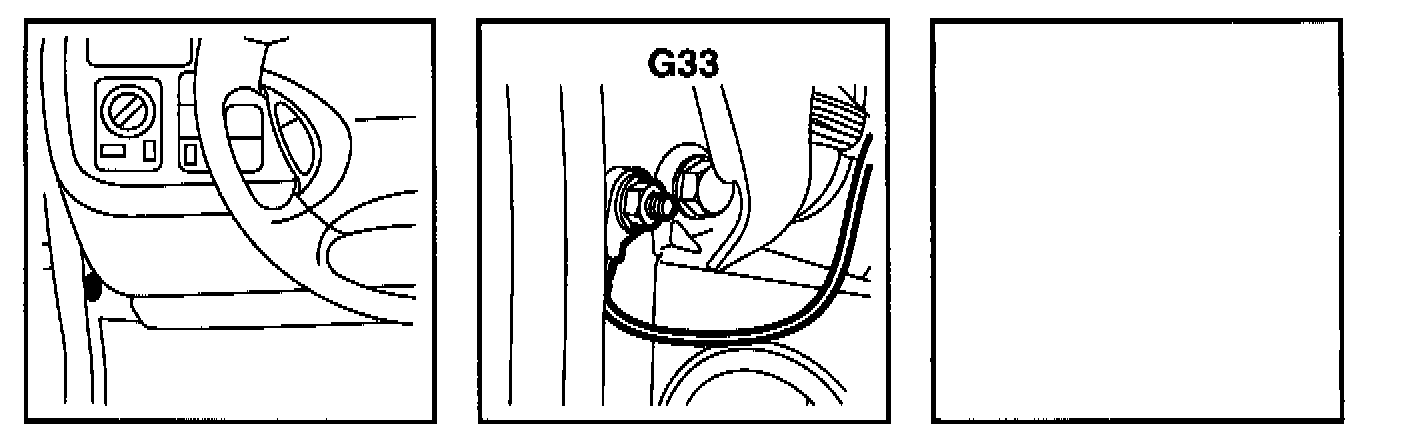

Grounding Point G33

The following components are connected to grounding point G33 in compartment under LH A-pillar:

Always connected:

181 Switch, electrically operated sunroof
182 Motor, electrically operated sunroof

Via crimp J90

30RC Lamp, high-level brake light
50C Lamp, roof lamp, centre
50F Lamp, roof light, front
89LH Lamp, side direction indicators, LH
359LH Lamp, vanity mirror, LH

B. Additional components for LHD cars:

Via crimp J130, which is connected to crimp J90

124 Switch, door mirrors
184D Motor, central locking, driver
207D Heating element, door mirror, driver's door
209D Lamp, courtesy light, driver's door
388 Switch, boot lid
623 Switch, filler cap lock
