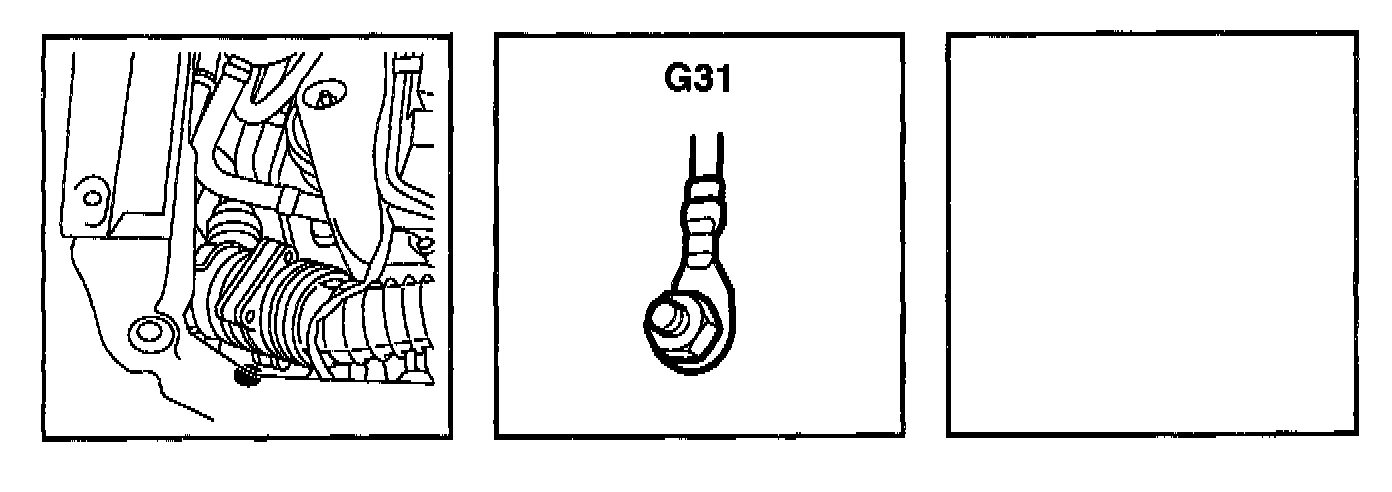

Grounding Point G31

The following components are connected to grounding point G31 on the right-hand structural member behind the headlamp:

Via crimp J1

11FR Lamp, main beam, RH
12FR Lamp, dipped beam, RH
13FR Lamp, parking light, front, RH
27FR Lamp, front direction indicator, RH
66FR Motor, headlamp wiper, RH
85FR Lamp, fog light, RH
118FR Lamp, corner light, RH
119FR Lamp, side reversing light, RH
280FR Motor, headlamp beam adjustment, RH
