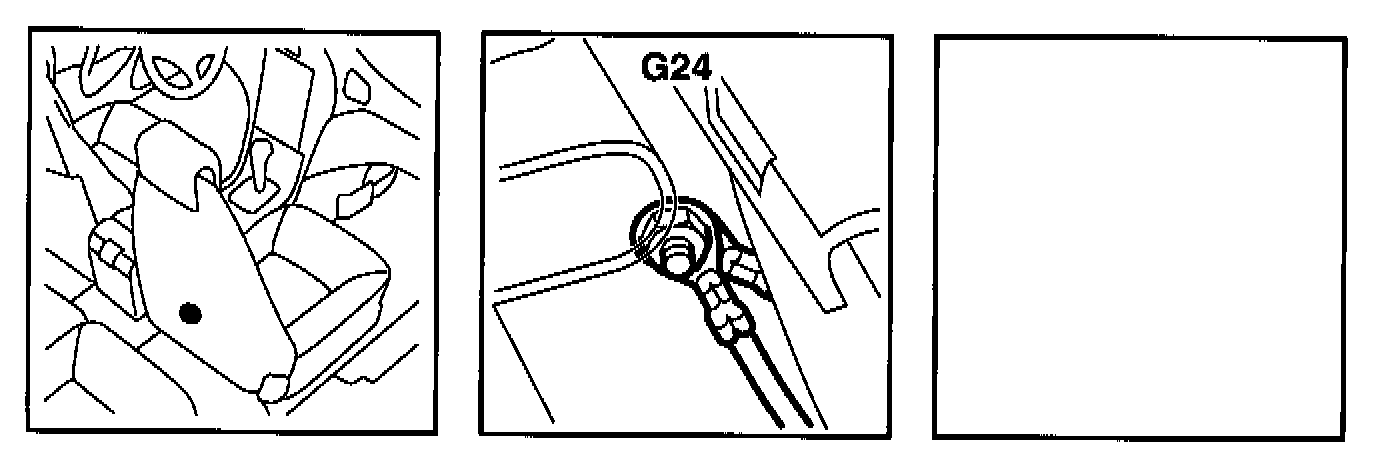

Grounding Point G24

The following components are connected to grounding point G24 on the seat member under the right- hand seat:

Via crimp J95

64FR Heating pad, RH seat
70 Seat-belt switch, RH seat
89RH Lamp, side direction indicators, RH
124 Switch, electrically adjustable door mirrors, driver's door (RHD)
184D Motor, central locking system, driver's door (RHD)
207 Heating element, door mirror, RH front door
209 Lamp, courtesy light, RH front door
209RR Lamp, courtesy light, RH rear door
254 Temperature sensor, heating pad, RH seat
357Dk Control module, electrically adjustable. seat with memory, driver's seat (RHD)
357P Switch, electrically adjustable seat, passenger (LHD)
386 Switch unit, electric window lifts
388 Switch, boot lid
623 Switch, filler cap lock (RHD)

Via crimp J117

463 Antenna unit, immobilizer
514a Switch, simultaneous central locking
611 PMM control module (LHD)
616RH Motor, backrest ventilation fan, RH seat (from Rev. 1)
617RH Motor, seat ventilation fan, RH seat (from Rev. 1)

Via crimp J119

616RH Motor, backrest ventilation fan, RH seat (to Rev. 1)
617RH Motor, seat ventilation fan, RH seat (to Rev.1)
