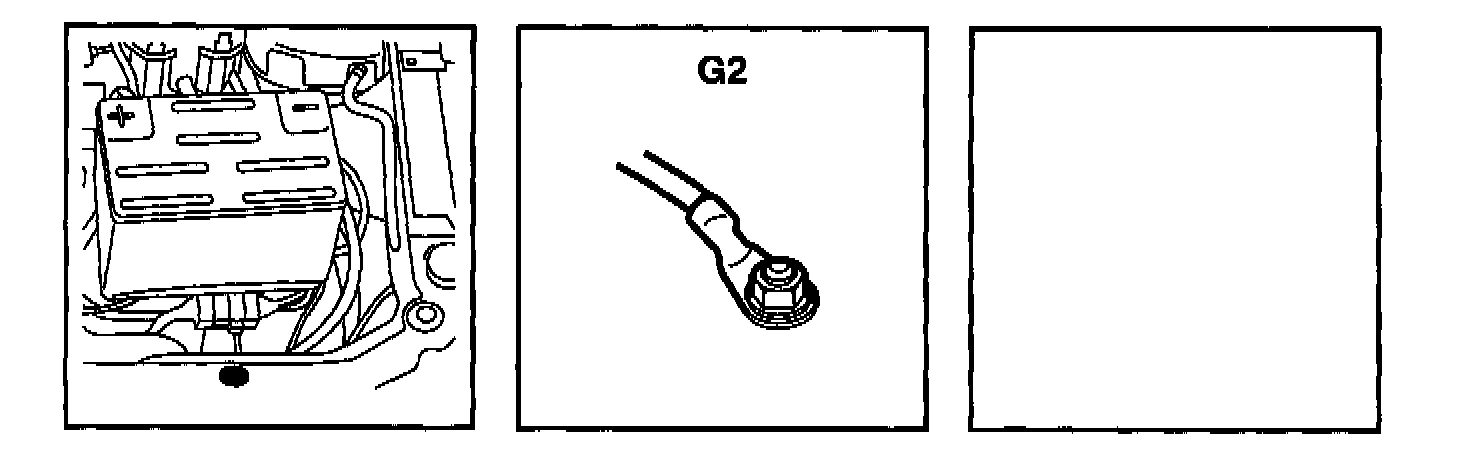

Grounding Point G2
The following components are connected to grounding point G2 on the left-hand structural member behind the headlamp (battery ground):
1 Battery
547 ABS control module (signal ground) via crimp J4
The following components are connected to grounding point G2 on the left-hand structural member behind the headlamp (battery ground):
1 Battery
547 ABS control module (signal ground) via crimp J4
