General

There are two main types of grounding point in the car; those having a component number and those where a component is grounded directly to the chassis, such as temperature sensors, oil pressure sensor, etc.

The car battery is connected to ground by means of two cables. One has a cross-section area of 25 sq.mm and goes straight to the gearbox (grounding point G25).

The other has a cross-section area of 16 sq.mm and goes to grounding point G2, which is located behind the battery on the left-hand wheel housing.

Between the gearbox and the right-hand wheel housing, there is a redundant ground with a 10 sq.mm cable. This is drawn as a lead between G2 and G25 on the service diagram.

Grounding points having a component number are covered in this section. A component can be connected to different grounding points depending on whether the car is left or right-hand drive. This is indicated in the relevant system diagram.

Many cables can be gathered together in a crimp connector just before a grounding point. This is indicated in the relevant grounding point list.

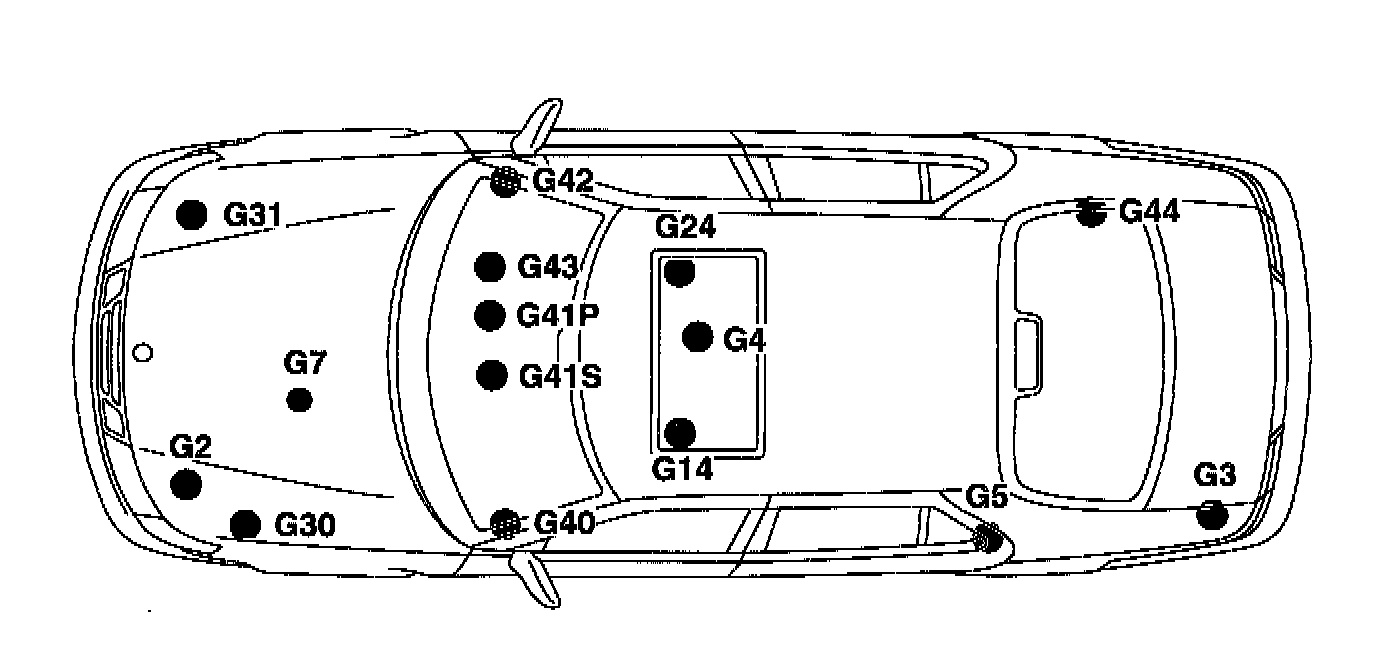

List Of Grounding Points

No. Location
G2 On LH structural member behind the headlamp (battery ground)
G3 In luggage compartment under LH light cluster
G4 On centre console between front seats
G5 Under LH corner of rear seat
G7 On the engine
G14 On seat member under left-hand seat
G24 Behind seat member under RH seat
G25 On gearbox (battery ground)
G30 In engine bay on side plate in front of LH wheel housing
G31 On RH structural member behind headlamp
G33 In compartment under LH A-pillar
G40 In compartment on LH side of knee member
G41P Centre ground screw in middle of knee member (in compartment).
G41S LH ground screw on middle of knee member (in compartment)
G42 In compartment on RH side of knee member
G43 Right-hand ground screw in middle of knee member (in compartment).
G44 Above parcel shelf by right-hand loudspeaker
