Grounding Point G33
Grounding Point G33
Location:
Under the left-hand A-pillar

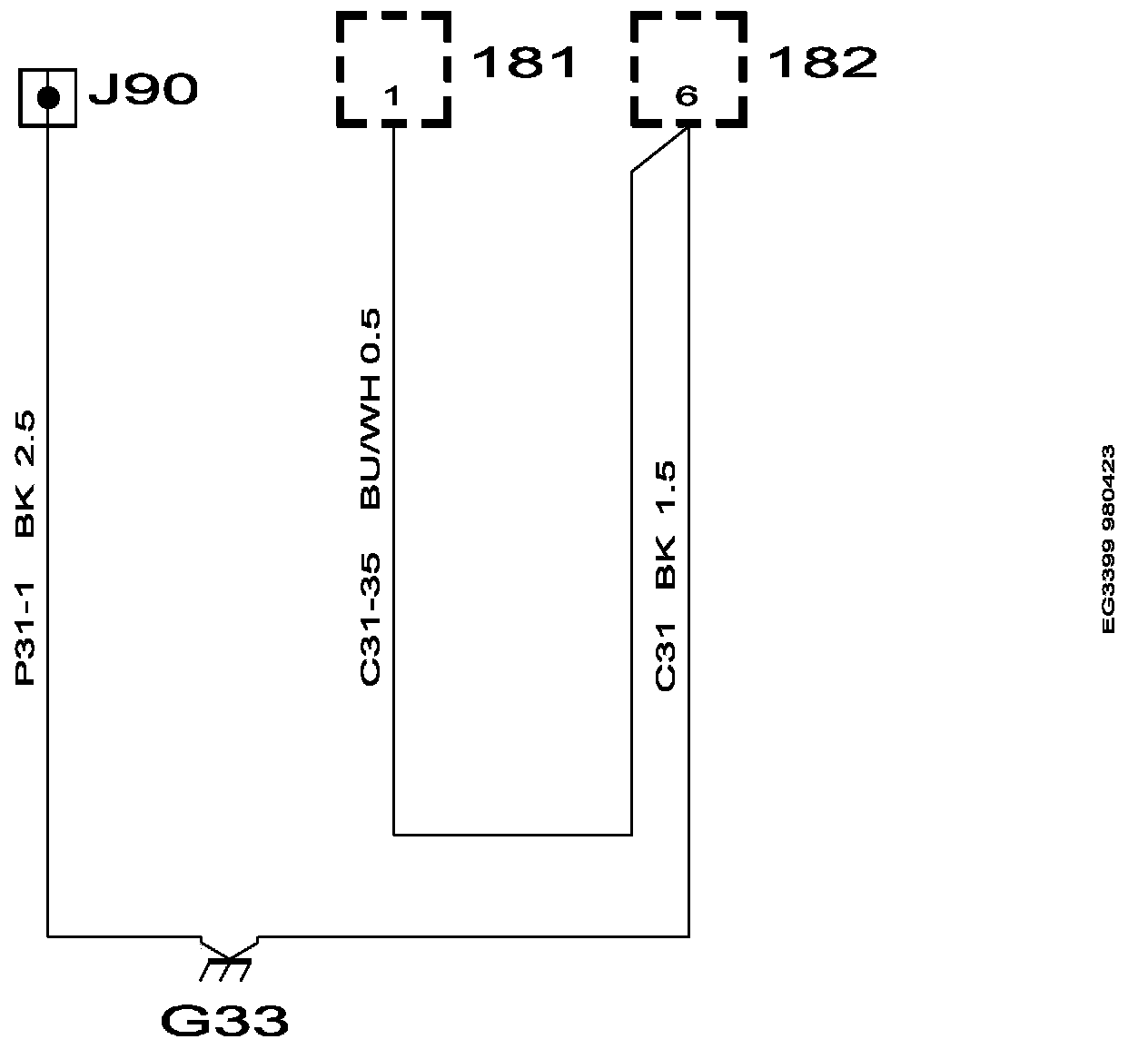

Grounding point G33:

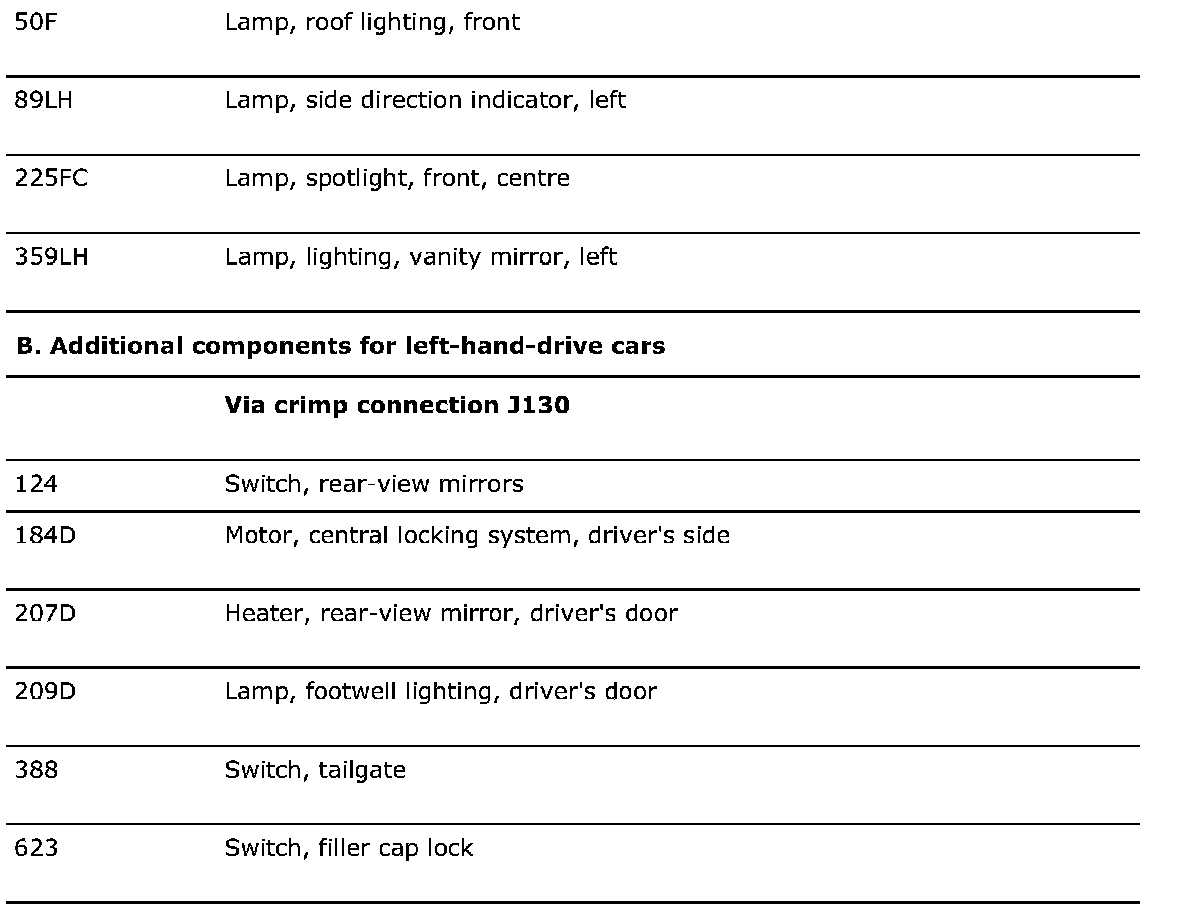

Connected Components (Part 1):
Connected Components (Part 2):
Connected Components (Part 3):
