Home >> Saab >> 1999 >> 9-5 Wagon (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse Block >> Application and ID >> Fuse Box 22A In the Dashboard

Fuse Box 22A In the Dashboard



Fuse Box 22a In The Dashboard

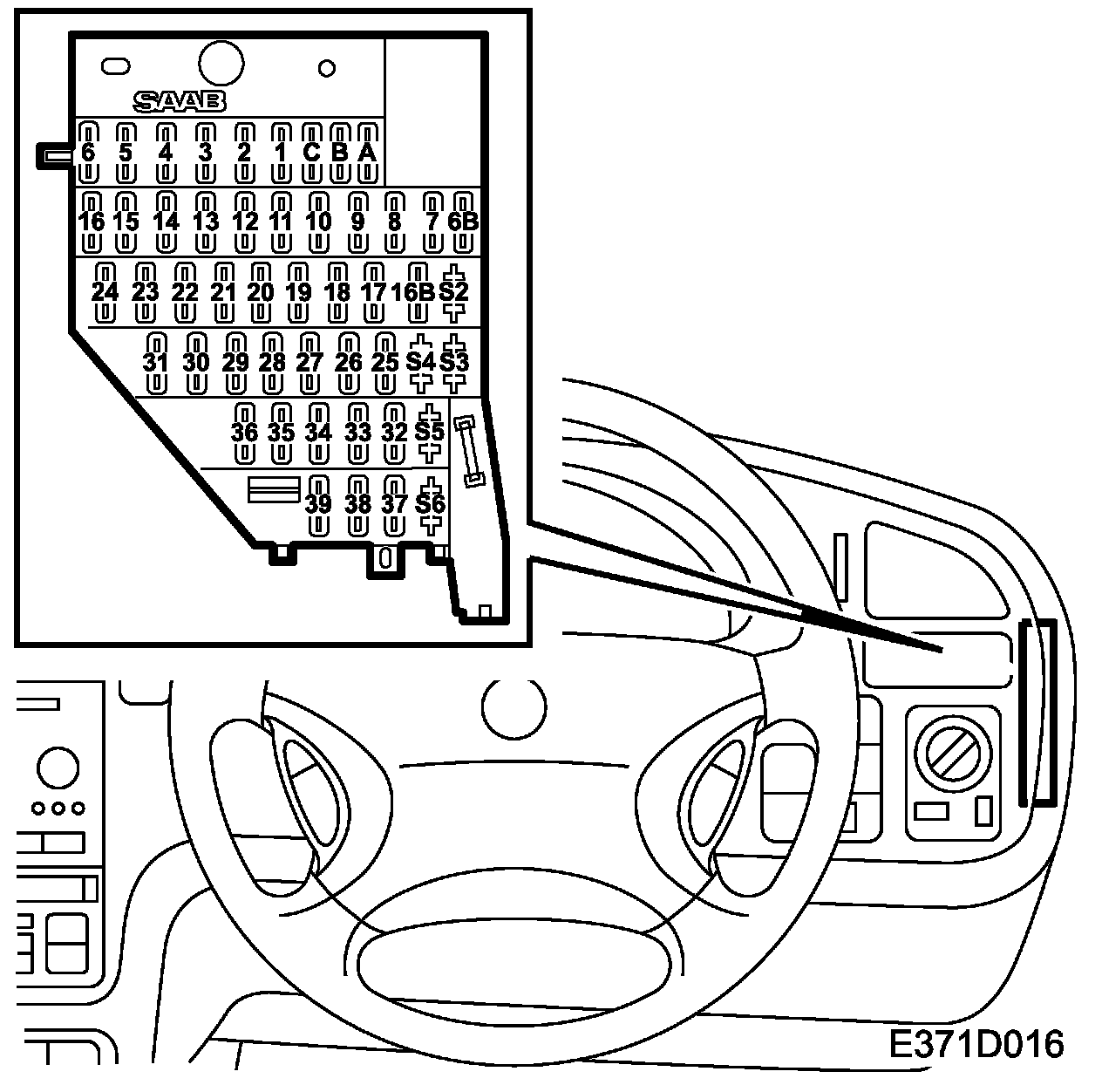

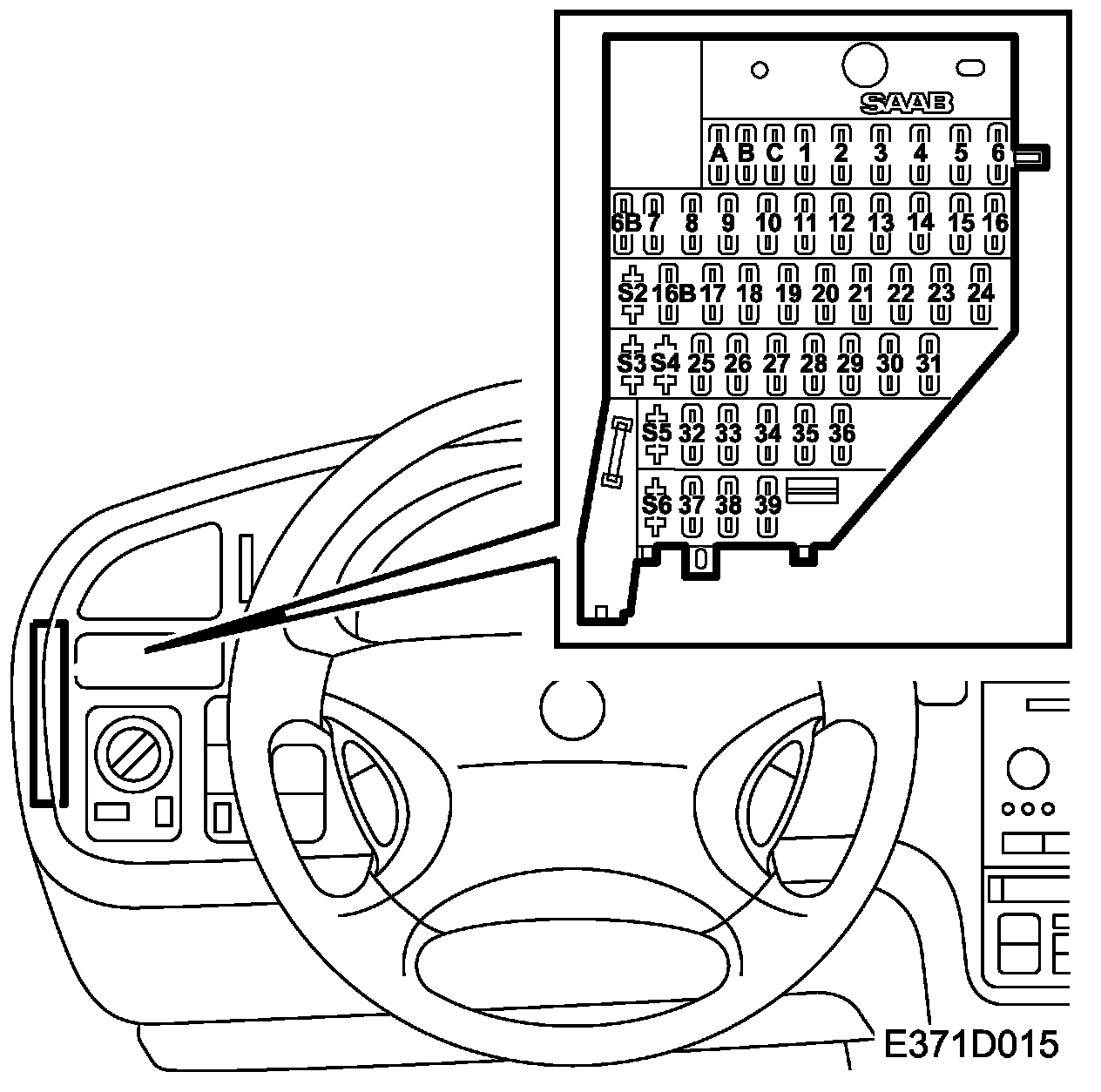

Location: On the short side of the dashboard by the driver's door.

The upper socket is for incoming voltage.
