Fuse Board Locations and Fuse Identification
>>
Fuse Board 501 For Maxi Fuses In Engine Bay
Fuse Board 501 For Maxi Fuses In Engine Bay
Fuse Board 501 For Maxi Fuses In Engine Bay

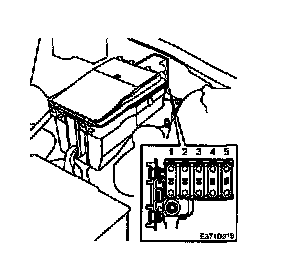

Behind the main fuse box in the engine bay

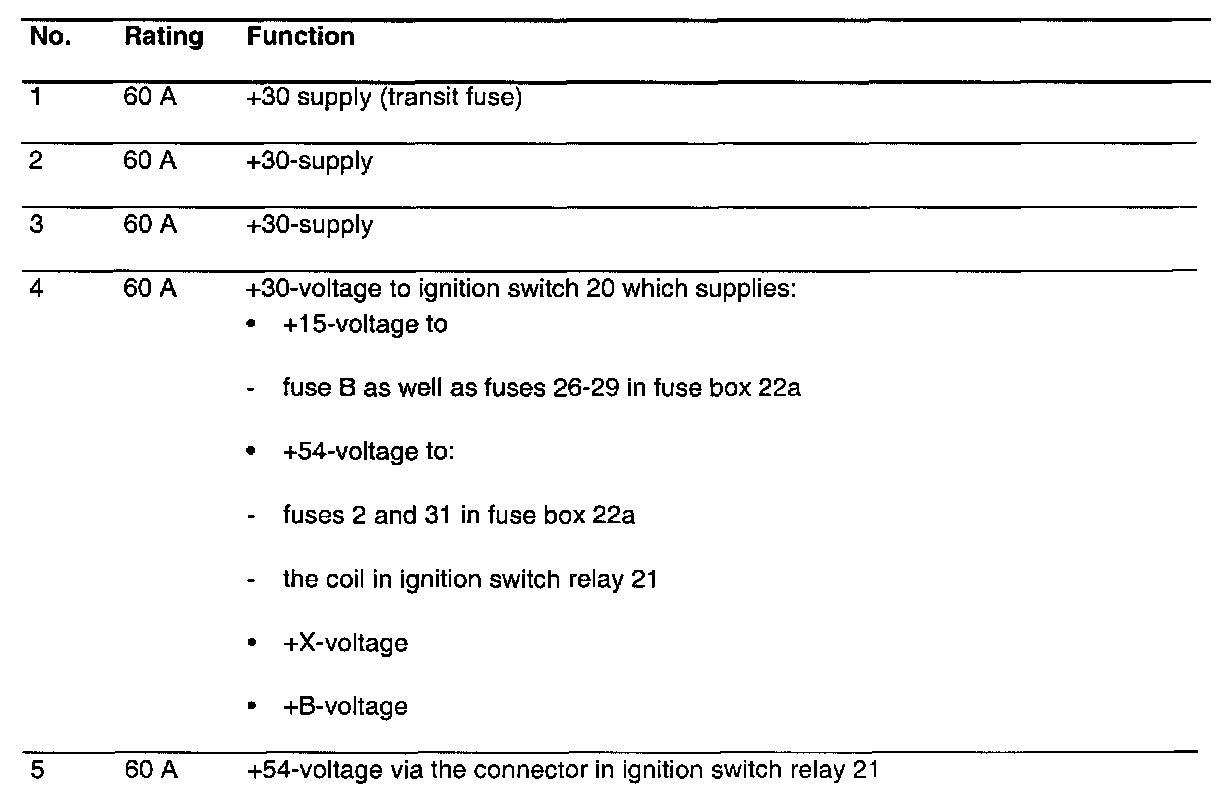

Fuses 1 - 5:
