Crimp Connection J45, Instrument Harness

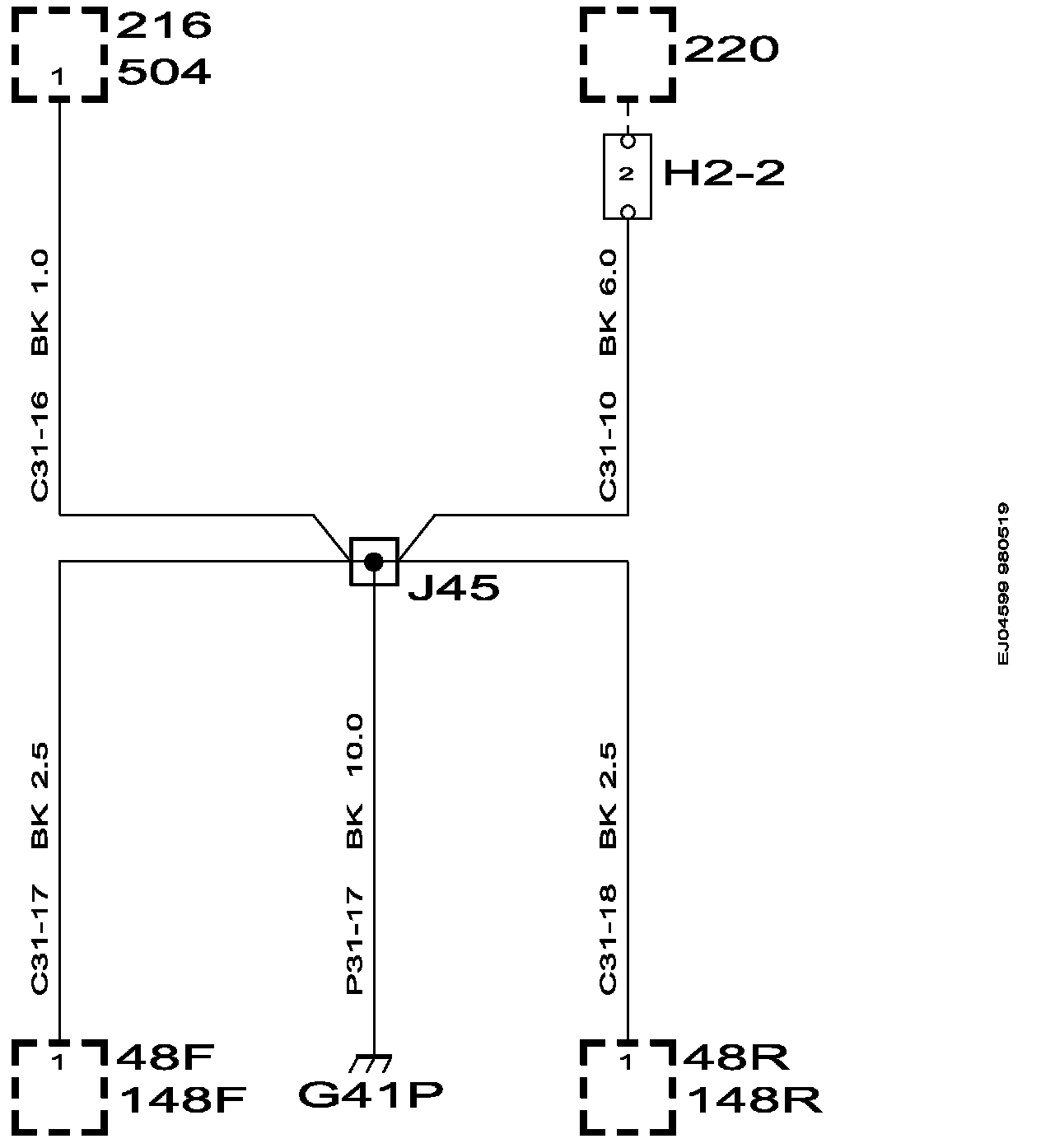

Crimp Connection J45, Instrument Harness:





Diagram Legend (List of Components): The names of the components shown on this diagram can be determined via their numbers at the vehicle level component locations. List of Components By Component Number
