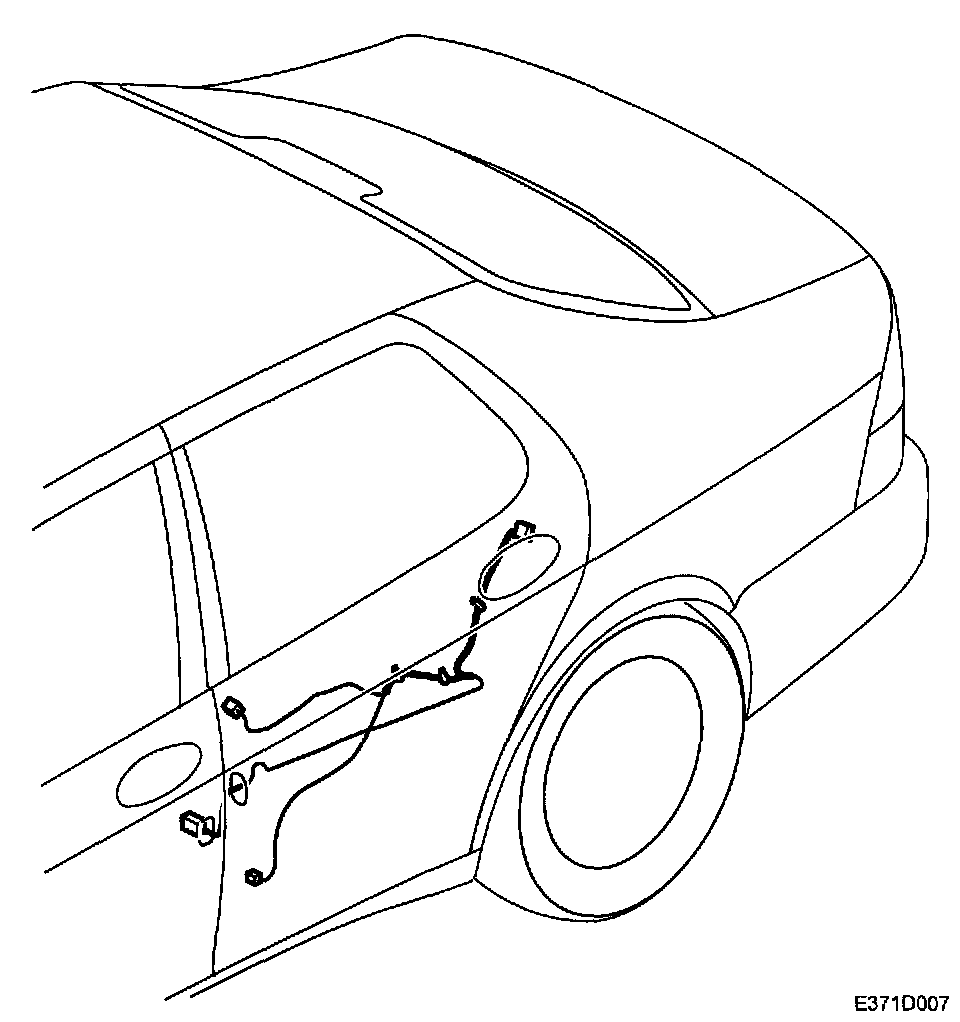

Wiring Harness, Rear Door

Wiring Harness, Rear Door:

Connected components:

SMS Component
164RL Motor, electric window lift, rear left
164RR Motor, electric window lift, rear right
184RL Motor, central locking system, rear left
184RR Motor, central locking system, rear right
190RL Switch, electric window lift, rear left
190RR Switch, electric window lift, rear right
209RL Lamp, footwell lighting, rear left
209RR Lamp, footwell lighting, rear right
266RPL Speaker, rear door, left
266RPR Speaker, rear door, right
