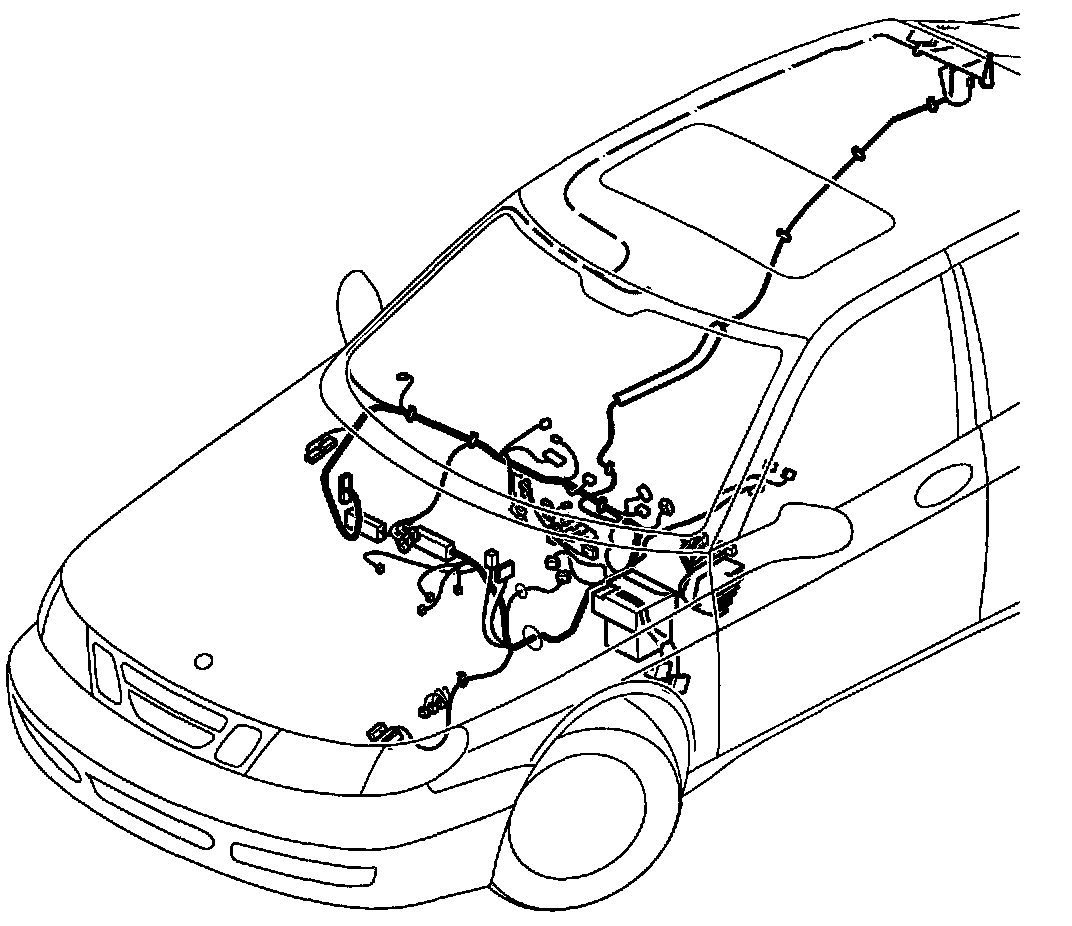

Wiring Harness, Dashboard

Wiring Harness, Dashboard:

Connected components:

SMS Component
Automatic transmission
Automatic transmission gear lever
Climate housing

10 Switch, lights, including
- 16 Rheostat
- 161 Rear fog light

19 - Lamp, glove compartment lighting
20 Ignition switch
22a Main fuse board, dashboard
22b Main relay board, dashboard
24 Switch, direction indicators
25 Switch, hazard warning flashers
29 Connector, brake lights
31 Connector, reversing lights
36 Motor, ventilation fan
38 Motor, air recirculation flap
41 Horn switch, via 336b
42 Level switch, brake fluid
43 Connector, handbrake
48F Cigarette lighter, front
48R Cigarette lighter, rear
54RR Door connector, rear, right
61 Switch, windscreen wipers
61a Switch, rear window wiper
62F Motor, windscreen wipers
88 Switch, fog lights
91 Lamp, lighting, selector lever position indicator
133 Connector, clutch, cruise control
134 Connector, brake, cruise control
141 Switch, cruise control
148F Lamp, lighting, ashtray/cigarette lighter, front
148R Lamp, lighting, ashtray/cigarette lighter, rear
215 Dipswitch, main/dipped beam
216 Control module, ACC
220 Control unit, ventilation fan
223 Solar sensor
242 Level switch, coolant
252FL Switch, heating pad, left-hand seat
252FR Switch, heating pad, right-hand seat
252R Switch, electrically heated rear seat
266FC Speaker, dashboard, center
266FL Speaker, dashboard, left
266FR Speaker, dashboard, right
266RR Speaker, parcel shelf, RH (4D) Speaker, subwoofer (5D)
276 Bonnet switch, anti-theft alarm
282 Switch, headlamp beam adjustment
305 LED, anti-theft alarm
326 Motor, secondary air injection pump
331 Control module, Supplementary Restraint System
333D Airbag, driver's side, via 336a
333P Airbag, passenger
336 Contact unit, steering wheel
353 Radio/cassette player, audio system
354 Amplifier, audio system
354h Connection, amplifier, audio system
355ha Connection, CD changer
359RH Lamp, lighting, vanity mirror, right
375 Connection, mobile phone
411 Starting interlock contact, clutch pedal
434a Solenoid, fuel filler flap
445 Data link connector, 16-pin, CARB
449 Switch, TCS OFF
451 Glass breakage sensor
453 Motor, pump, engine coolant circulation
456 Antenna, anti-theft alarm remote control
461 Connection, electronic road tolls
501 Main fuse box, maxi fuses
502 Control module, TCM
504 Control panel, heating and ventilation
540 Main instrument display panel
541 Control module, SID
581 Solenoid valve, heat exchanger
613FL Lamp, floor lighting, front, left
613FR Lamp, floor lighting, front, right
615LH Switch, seat ventilation, left-hand seat
615RH Switch, seat ventilation, right-hand seat
618 Rheostat, intermittent wiper
619 Connection ON STAR
621 Temperature sensor, A/C evaporator
624 Aerial amplifier, radio
628 Control module, DICE
633 Switch unit, steering wheel, via 336b
634 Microphone, mobile phone
637 ADM control module
638 Switch, ADM
