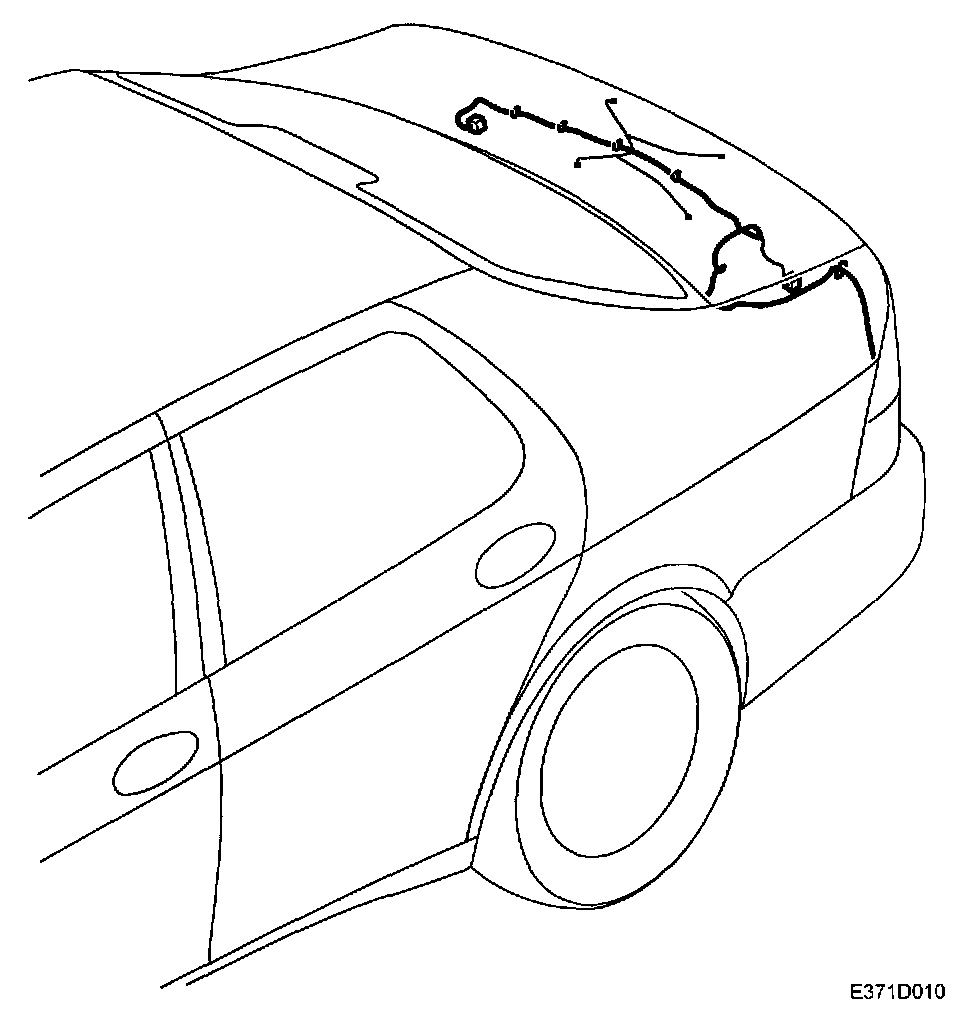

Wiring Harness, Boot lid 4D

Wiring Harness, Boot Lid 4D:

Connected components:

SMS Component
15 Lamp, lighting, number plate
32/33HL Lamp, reversing light/fog light, left
32/33HR Lamp, reversing light/fog light, right
56 Connector, luggage compartment illumination
184H Motor, central locking system, tailgate
622 Microswitch, tailgate lock
