Electrical Diagrams

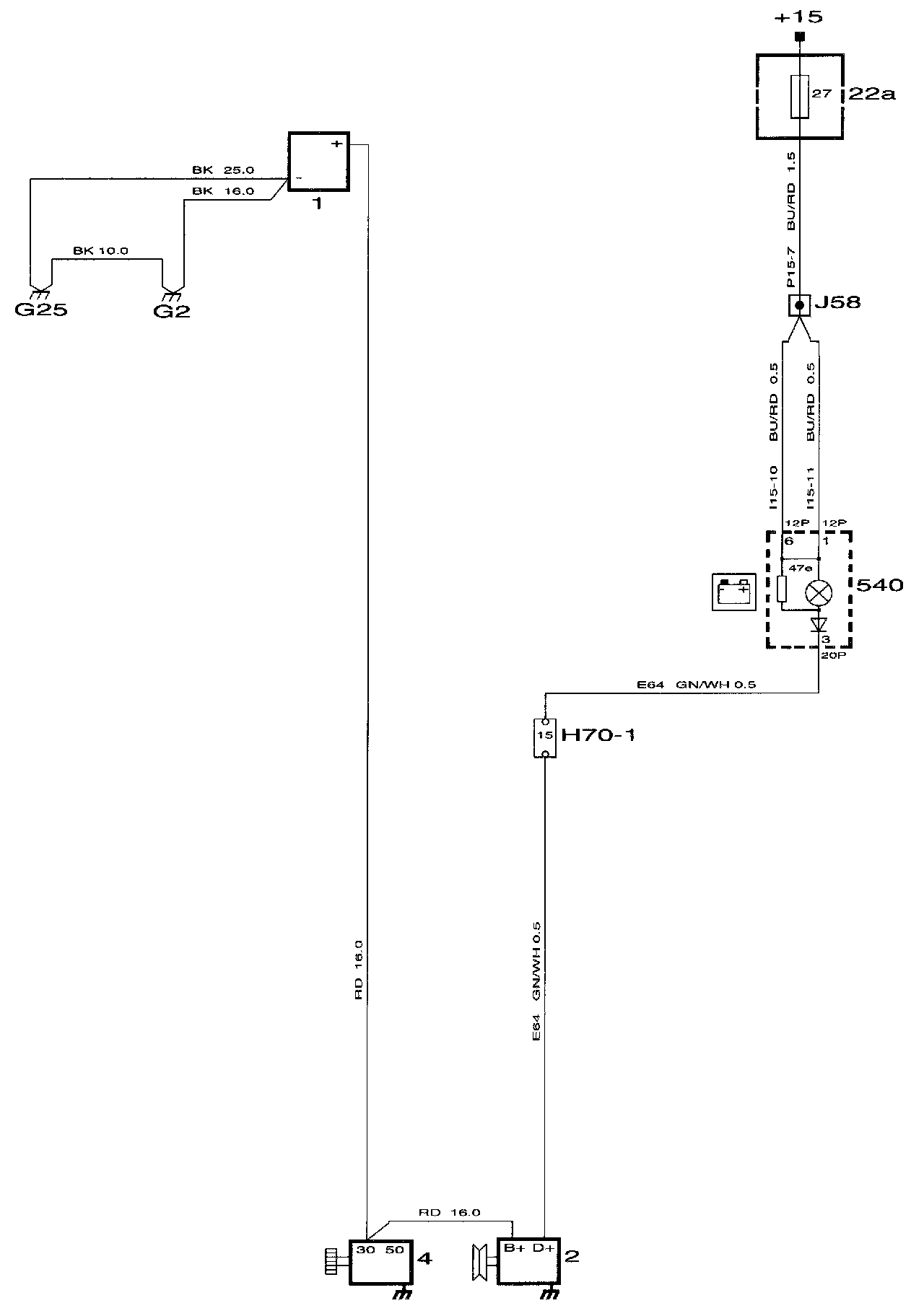

Charging System Wiring Diagram


Components
1 Battery in the engine bay
2 Generator on rear side of engine
4 Starter motor on rear side of engine
22a Main fuse board, dashboard on the side of the dashboard by the driver's door
540 Main instrument unit in the dashboard in front of the driver

Connectors
H70-1 In centre of bulkhead partition (engine-bay side)

Crimp connections
J58(RHD) Approx. 100 mm from MIU (12 pin connector) branching point towards the heater housing
J58(LHD) Approx. 50 mm from MIU (12 pin connector) branching point towards the diagnostic tool

Grounding points
G2 On left-hand side of the structural member behind the headlamp
G25 On the gearbox
