Cylinder Head Torque

FRONT:

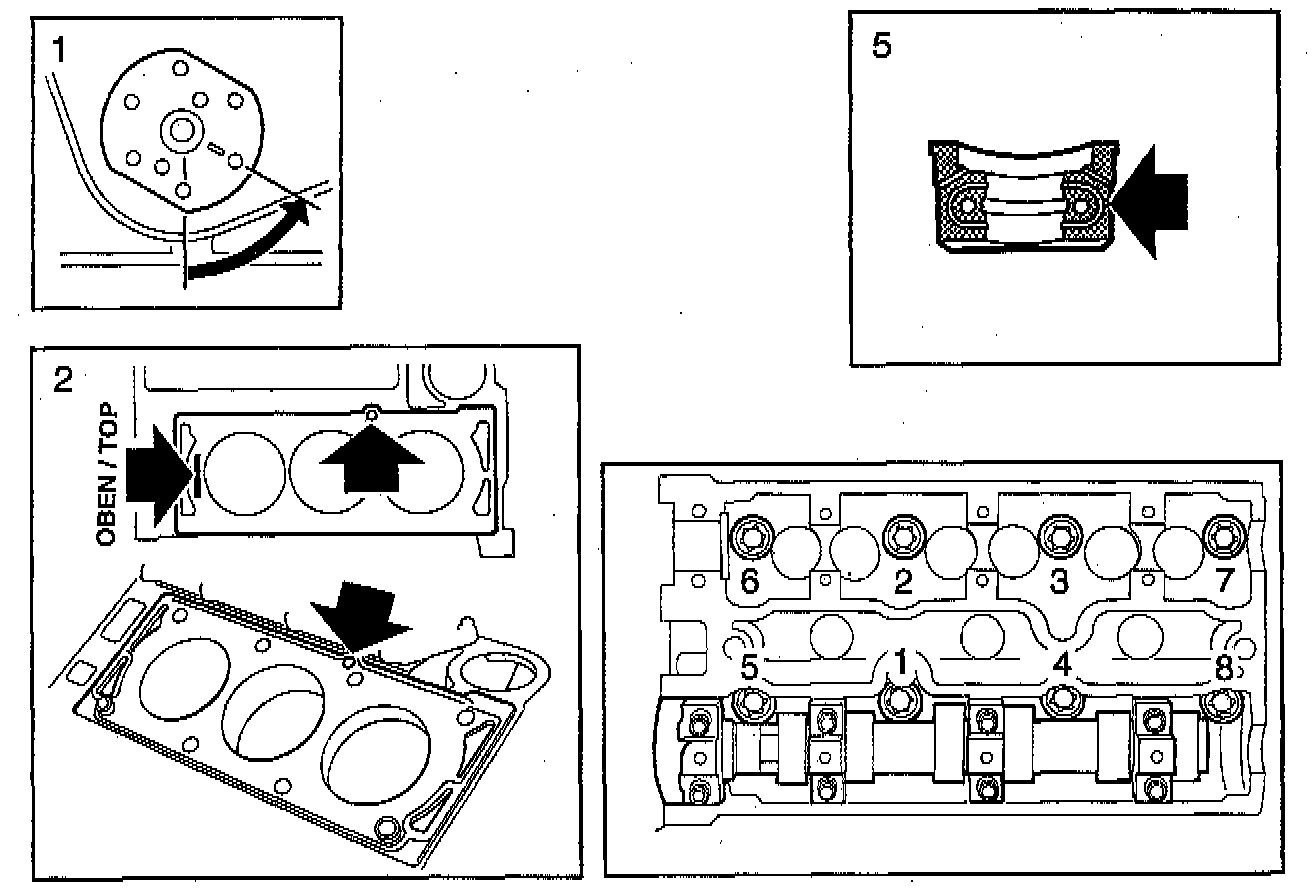

Place the cylinder head in position. Use new bolts. Tighten in the order shown.
^ Stage 1: 25 Nm (18.5 ft. lbs.)
^ Stage 2: Tighten to 90°
^ Stage 3: Tighten to 90°
^ Stage 4: Tighten to 90°





REAR:
Place the cylinder head in position. Use new bolts. Tighten in the order shown.
^ Stage 1: 25 Nm (18.5 ft. lbs.)
^ Stage 2: Tighten to 90°
^ Stage 3: Tighten to 90°
^ Stage 4: Tighten to 90°

DIMENSIONS:
Total Height: 134.0 mm
Maximum Distortion: 0.02 mm/100 mm length
