Light Switch


Light Switch

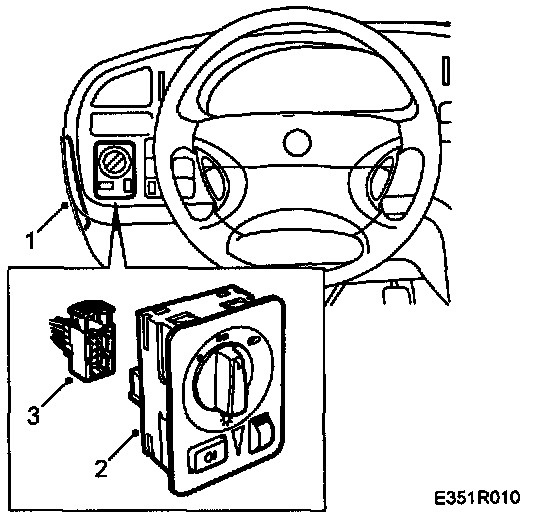

To Remove





1. Remove the main fuse box cover.
2. Insert one hand into the main fuse box hole and press out the light switch from inside.
3. Unplug the connectors.

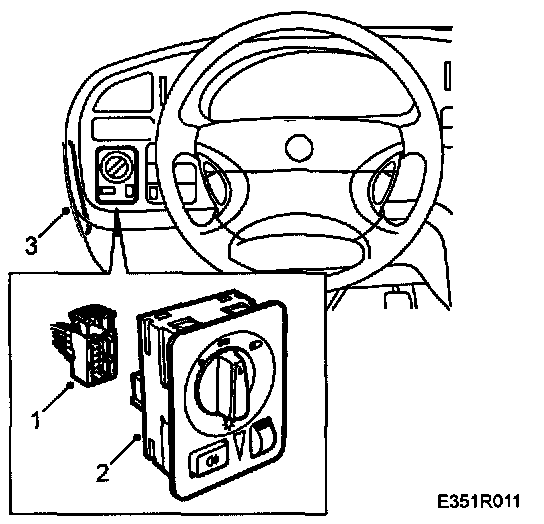

To Fit





1. Spray with "kontakt 61."
2. Connect the new light switch.
3. Press the light switch into the panel.
4. Fit the main fuse box cover.
