Fuel Gauge Sender: Specifications







Tank Sensor Resistance

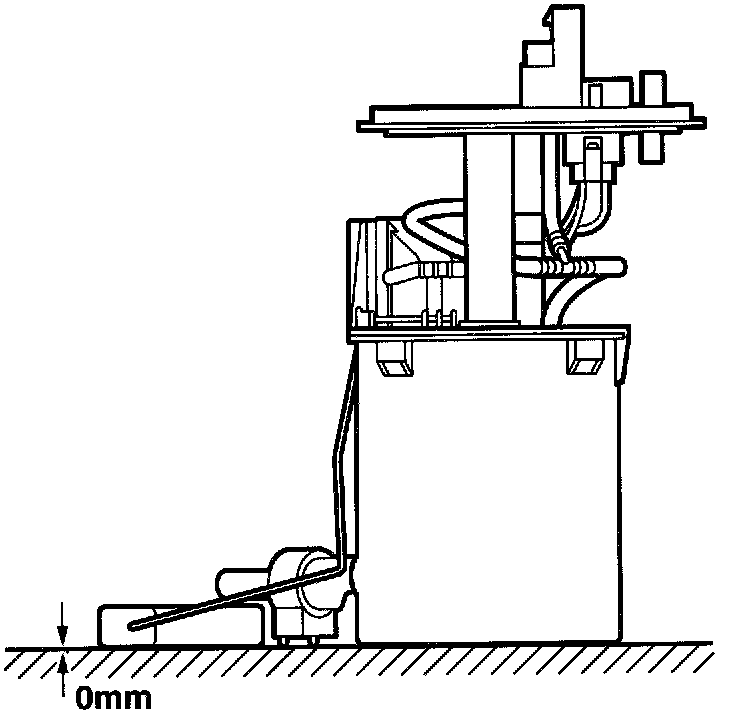

Resistance, empty tank ohm 50 ±1.5
Resistance, full tank ohm 425 ±6.5
