Clutch Switch: Service and Repair

Clutch Pedal Switch

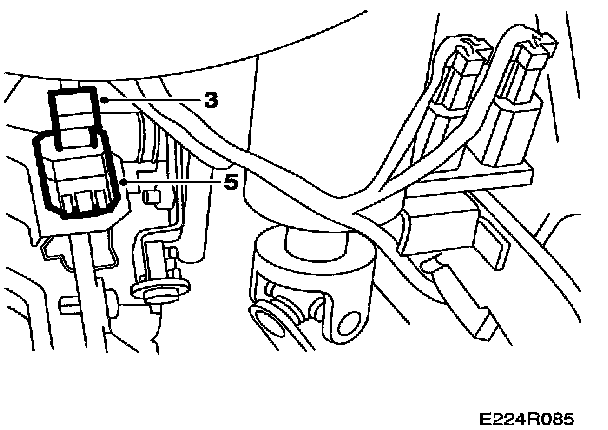

To remove





1 Remove the pedal bracket's cover by undoing the 3 screws and clip. Bend the cover down and carefully withdraw it. Mind the leads running to the data link connector and the wiring for the lighting.
2 Depress the clutch pedal.





3 Extract the switch's red sleeve until it clicks.
4 Remove the switch by pressing in the catches with an electrician's screwdriver or the like.
5 When the switch has been removed, unplug the connector.

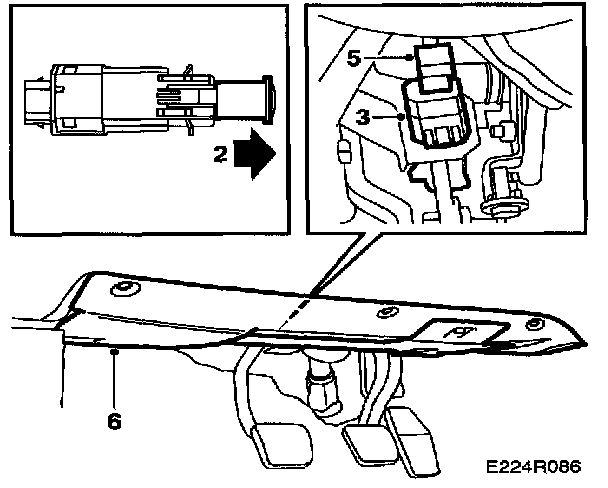

To fit





1 Spray the connector with Kontakt 61 contact cleaner (part No. 30 21 763).
2 Make sure that the switch is fully withdrawn.
3 Depress the clutch pedal and press the switch into its holder.
4 Carefully release the pedal.
5 Plug in the connector.
6 Fit the pedal bracket's cover in reverse order.
