Control Module Inputs, Bus

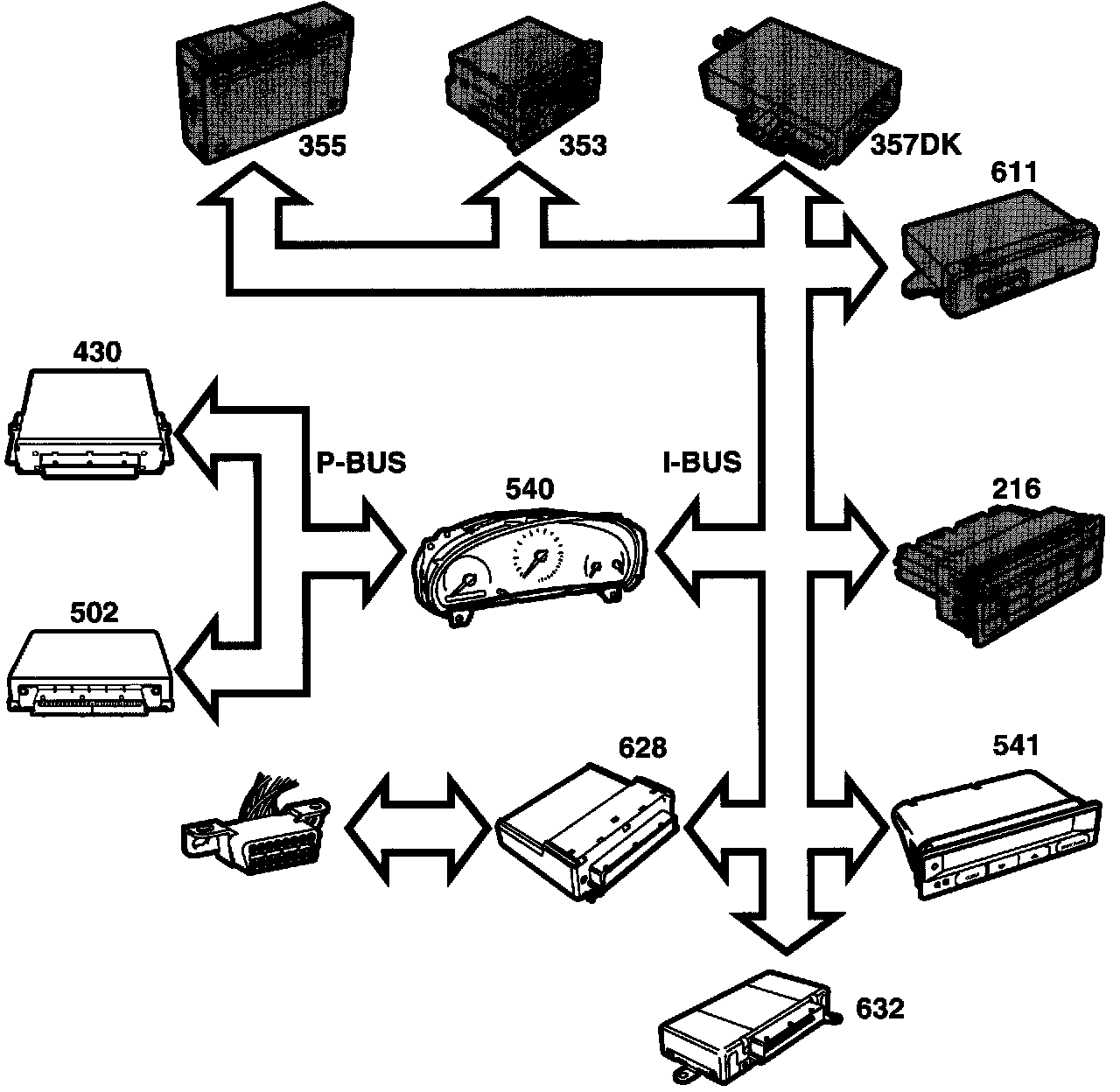

Control Module Inputs, Bus, Part 1 of 3
^ Engine speed information from Trionic (430), see description, "Tachometer."
^ Coolant temperature information from Trionic (430), see description, "Coolant temperature."
^ Fuel consumption information from Trionic (430), see description, "Fuel gauge."
^ Rheostat value from the SID unit (541), see description, "Warning and indicator lamps."
^ Display lighting value from the SID unit (541), see description, "Instrument and display lighting."
^ Value of light intensity in cabin from the SID unit (541), see description, "Instrument and display lighting."
^ INFO DISPL indicator lamp from the SID unit (541), see description, "Warning and indicator lamps."

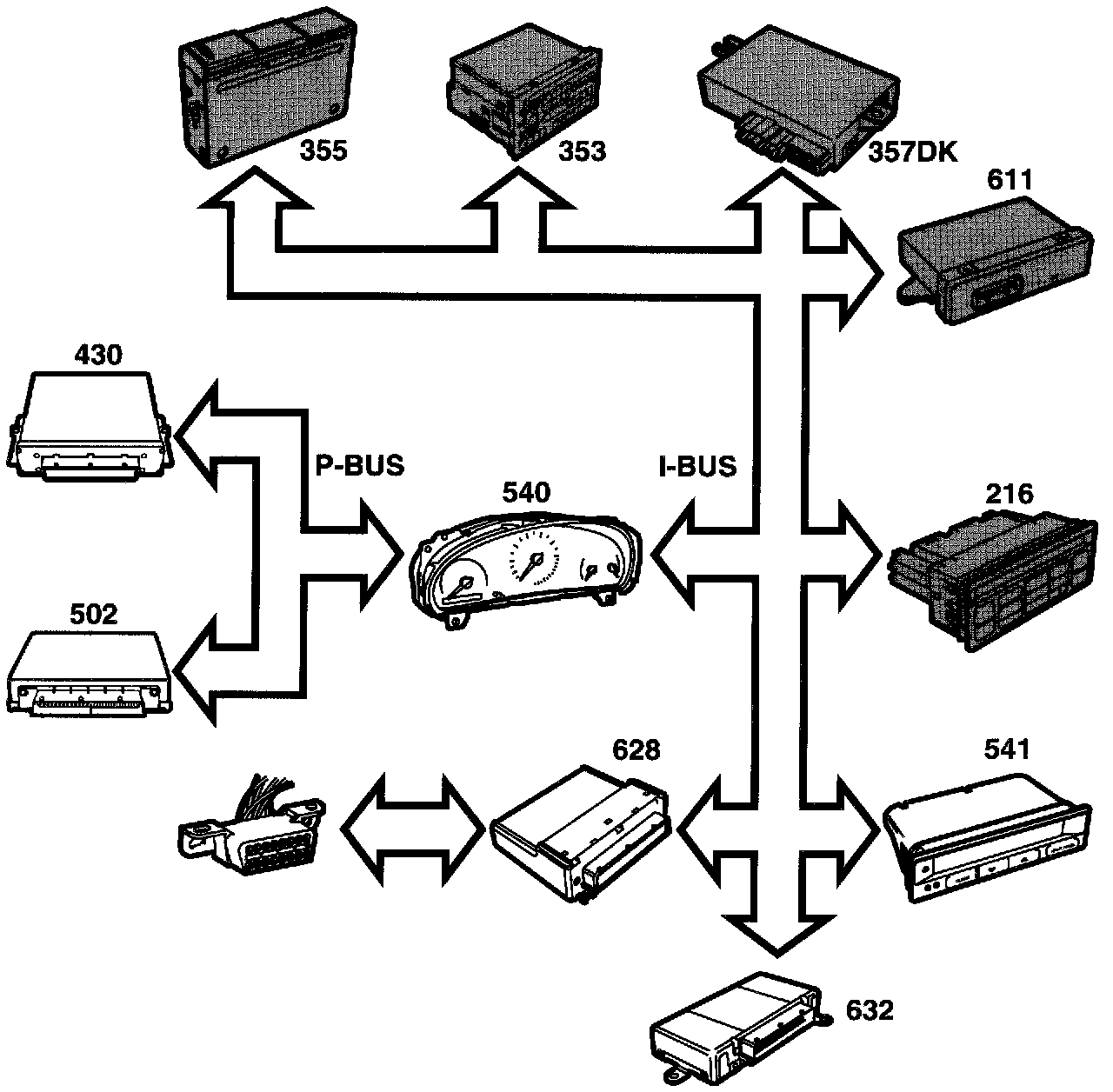

Control Module Inputs, Bus, Part 2 of 3
^ NIGHT PANEL from the SID unit (541), see description, "NIGHT PANEL."
^ Selector lever position indicator from the transmission control module (502), see description, "Warning and indicator lamps."
^ CHECK ENGINE indicator lamp from Trionic (430), see description, "Warning and indicator lamps."
^ CHECK GEARBOX indicator lamp from the transmission control module (502), see description, "Warning and indicator lamps."
^ SPORT indicator lamp from the transmission control module (502), see description, "Warning and indicator lamps."
^ WINTER indicator lamp from the transmission control module (502), see description, "Warning and indicator lamps."

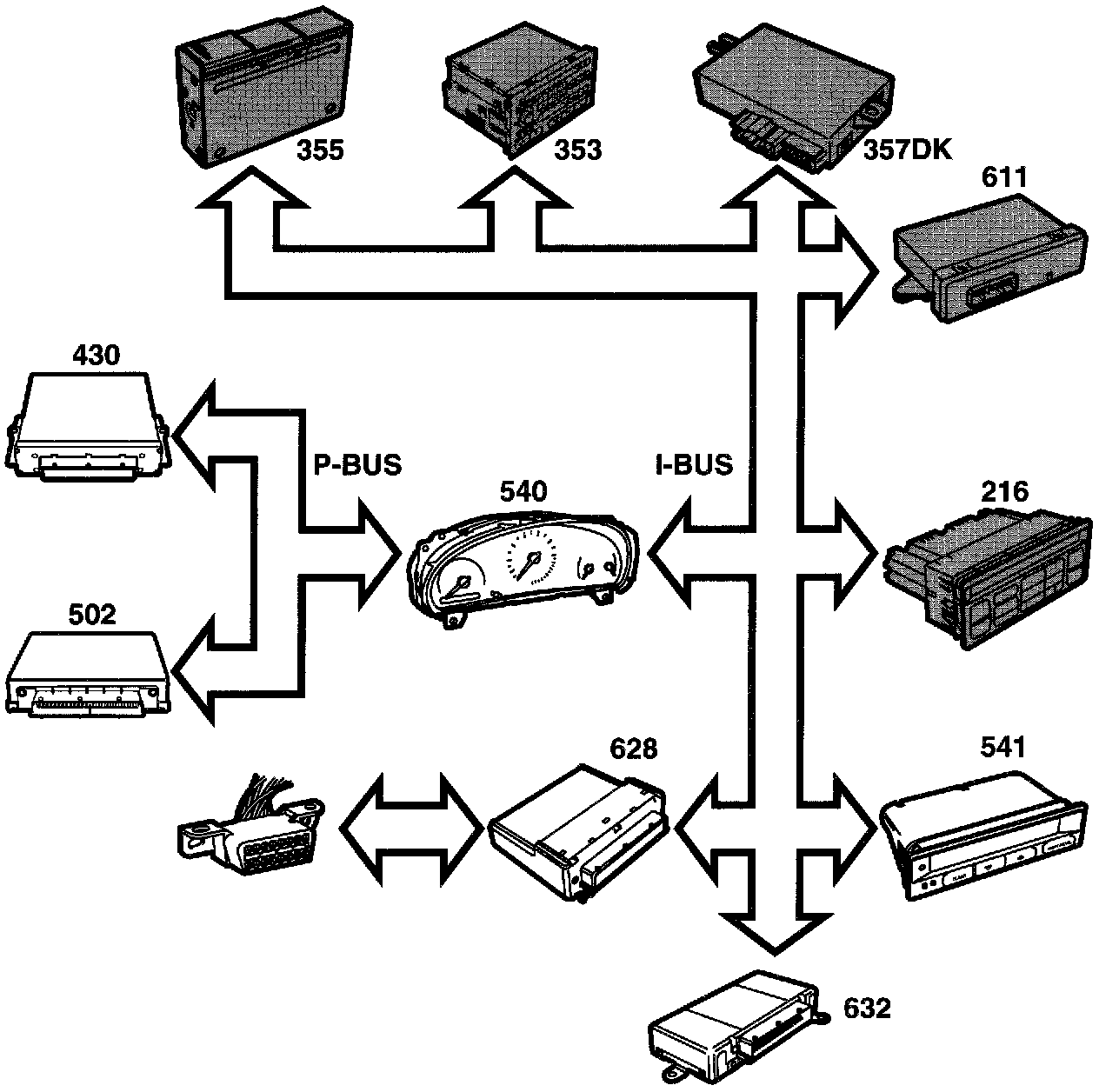

Control Module Inputs, Bus, Part 3 of 3
^ "Door open" indicator lamp from the TWICE control module (632), see description, "Warning and indicator lamps."
^ Left-hand direction indicator repeater lamp from the DICE control module (628), see description, "Warning and indicator lamps."
^ Right-hand direction indicator repeater lamp from the DICE control module (628), see description, "Warning and indicator lamps."
^ Rear fog light indicator lamp from DICE (628), see description, "Warning and indicator lamps."
^ CRUISE indicator lamp from Trionic (430), see description, "Warning and indicator lamps."
^ Shift-up indicator lamp from Trionic (430), see description, "Warning and indicator lamps."
