Control Module Inputs

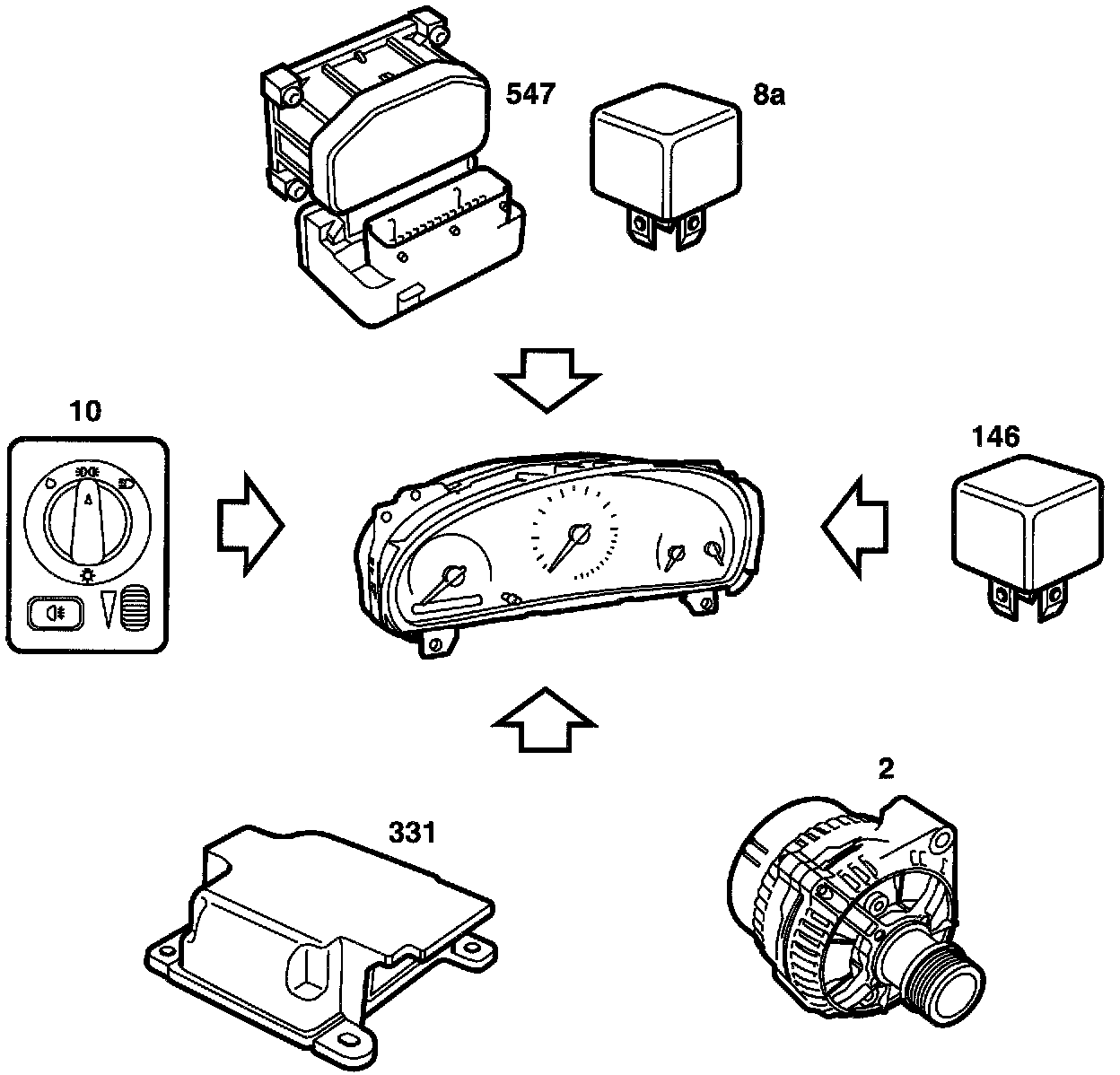

Control Module Inputs, Part 1 of 2

^ Vehicle speed signal from the ABS control module (547), see description, "Speedometer with odometer and trip meter."
^ ABS warning lamp (ANTI LOCK) from the ABS control module (547), see description, "Warning and indicator lamps."
^ AIRBAG warning lamp from the airbag control module (331), see description, "Warning and indicator lamps."
^ AIRBAG 2 warning lamp (Central warning lamp) (331), see description, "Warning and indicator lamps."
^ Charge warning lamp (2), see description, "Warning and indicator lamps."
^ EXH warning lamp from the EXH relay (146), see description, "Warning and indicator lamps."
^ Lights-on indicator lamp from the lights switch (10), see description, "Warning and indicator lamps."
^ Main beam indicator light from the main beam relay (8a), see description, "Warning and indicator lamps."

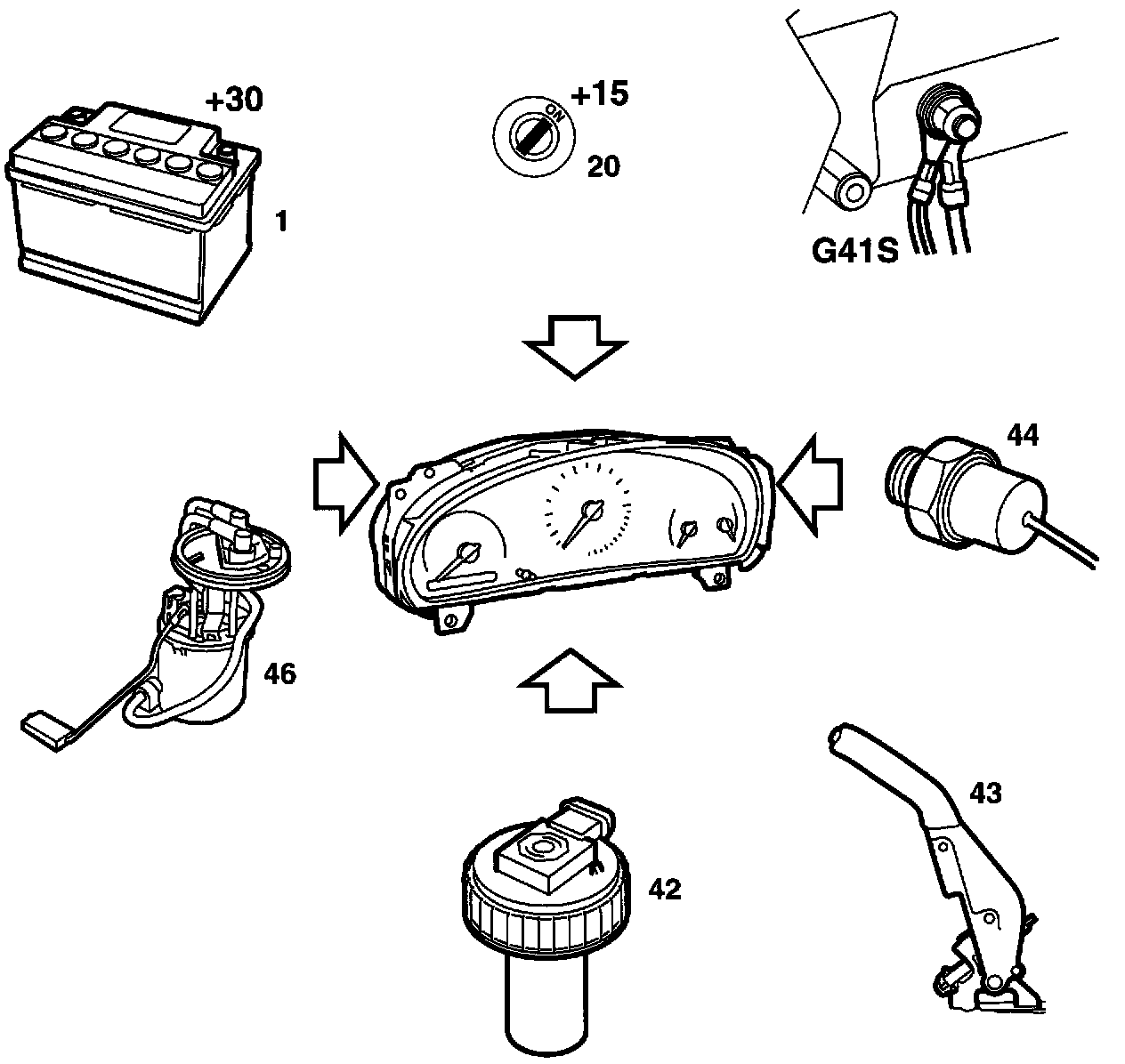

Control Module Inputs, Part 2 of 2

^ Battery voltage (+30 circuit) (1), see description, "Power supply and grounding."
^ Battery voltage (+15 circuit) (20), see description, "Power supply and grounding."
^ Ground connection (G41S), see description, "Power supply and grounding."
^ Engine oil pressure warning lamp from the oil pressure sensor (44), see description, "Warning and indicator lamps."
^ Brake fluid level warning lamp from the brake fluid level sensor (42), see description, "Warning and indicator lamps."
^ Handbrake warning lamp (43), see description, "Warning and indicator lamps."
^ Fuel level from the fuel level sensor (46), see description, "Fuel gauge."
^ Low fuel level indicator lamp (46), see description, "Warning and indicator lamps."
