Ignition Discharge Module, Rear

To remove







1 Remove the engine cover.

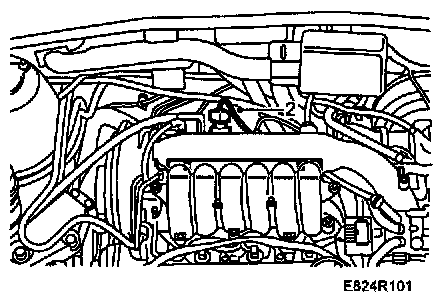

2 Unplug the connector to the pressure sensor on the intake manifold.

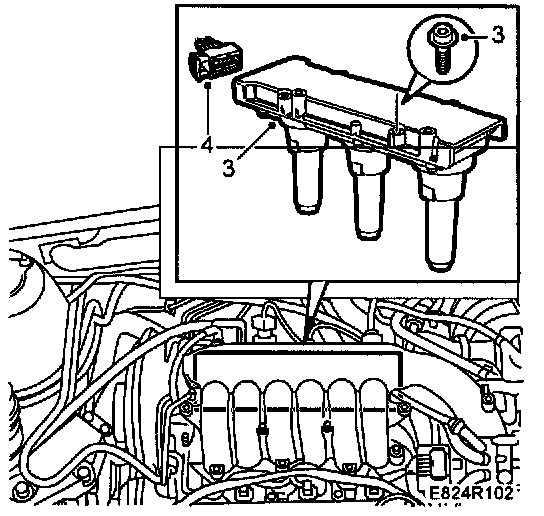

3 Remove the ignition discharge module.







4 Unplug the ignition discharge module connector.

To fit







1 Coat the rubber seals with Krytox (part No.30 19 312).
2 Spray the connectors with kontakt 61 (part no.30 04 520). Plug the connectors into the ignition discharge module.
3 Fit the ignition discharge module.
4 Plug in the connector to the pressure sensor on the intake manifold.







5 Fit the cover.
