Throttle Cable/Linkage: Adjustments

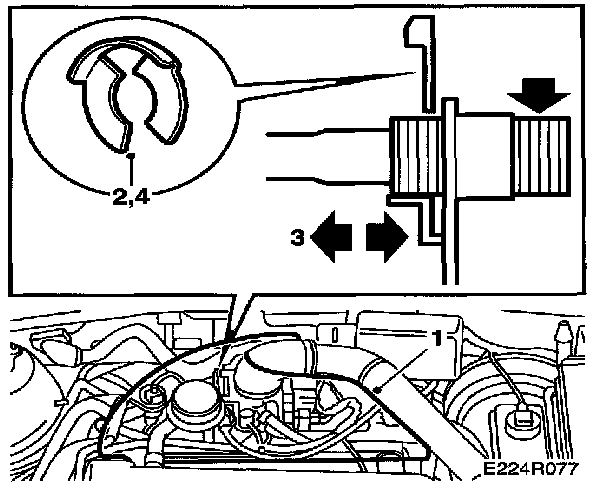

Adjustment of throttle cable







1 Remove the engine cover.
2 Remove the cable adjustment retaining clip.
3 Adjust the free play in the cable by holding the pedal arm in the fully spring-loaded return position with one hand while moving the cable towards a taut position with the other hand. Then slacken it to the sleeve's nearest groove.
4 Fit the retaining clip.
