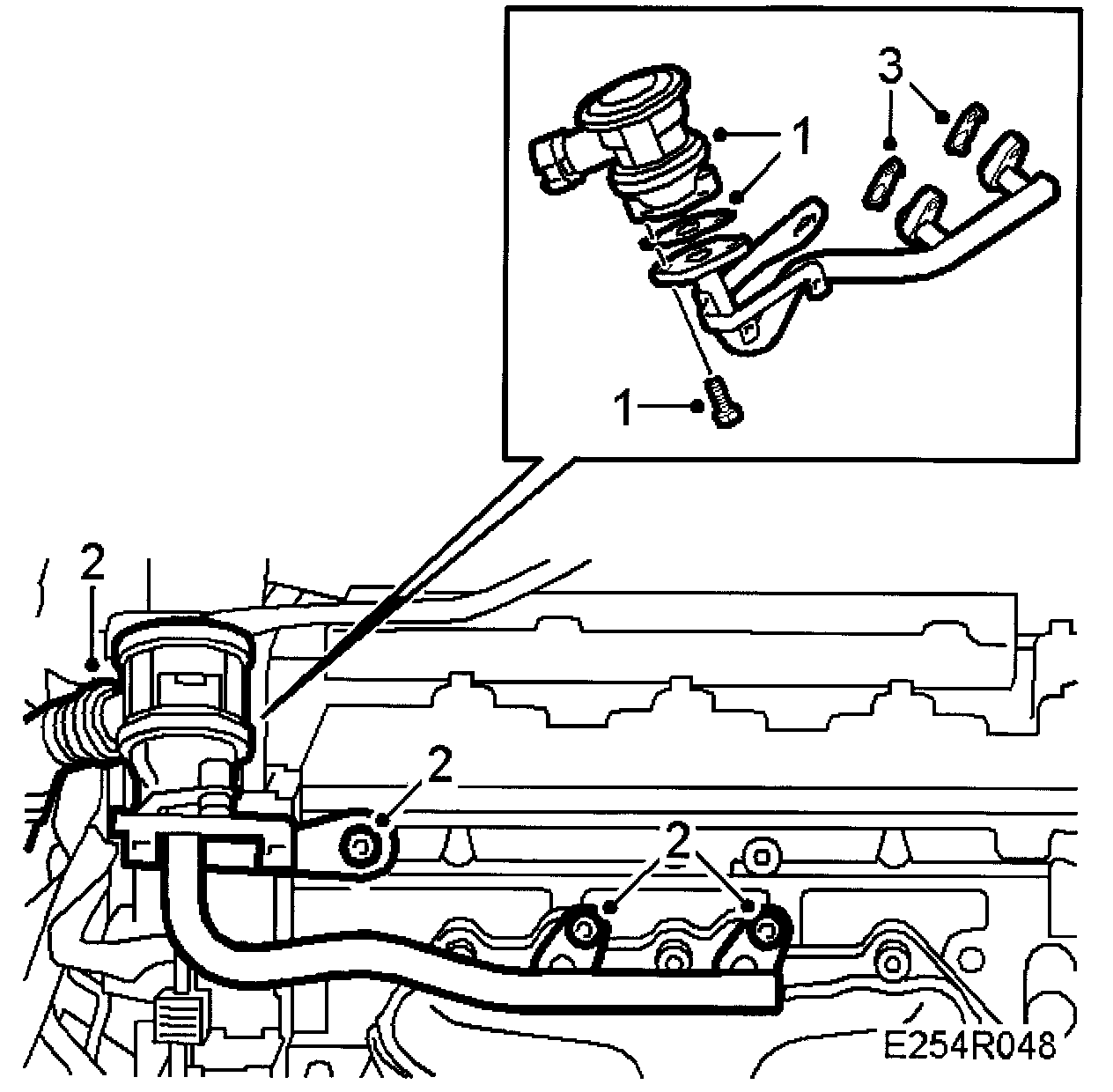

Rear Inlet Pipe, SAI

To remove
1 Detach the oxygen sensor connectors from the holder on the rear SAI valve by releasing the catch and pushing them down.





2 Undo the SAI pipe mounting on the cylinder head. Undo the connections to the exhaust manifold.





3 Undo the hose connections for the SAI valve and remove the pipe with valve.
4 Remove the valve

To fit
1 Fit the SAI valve on the pipe. Use a new gasket.





2 Connect the hose and check the connection.
3 Fit the SAI pipe with new gaskets to the exhaust manifold and cylinder head.
4 Fasten the oxygen sensor connectors to the holder.
