Checking the Fuel Supply



Checking The Fuel Supply

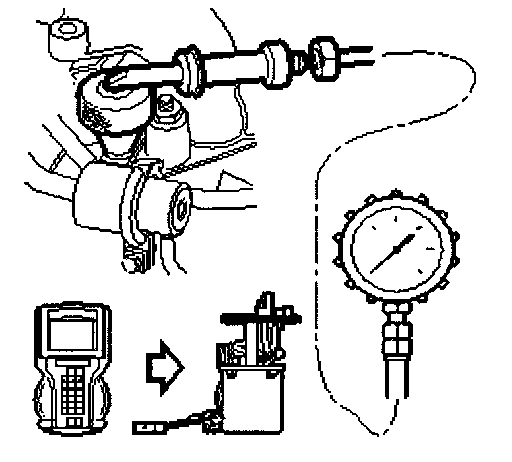

- Check fuel pressure as described in 'Adjustment/replacement'.

Is the fuel pressure OK?

NO - Checking the Fuel Pump Flow Rate

YES - Checking Injector Flow Rate
