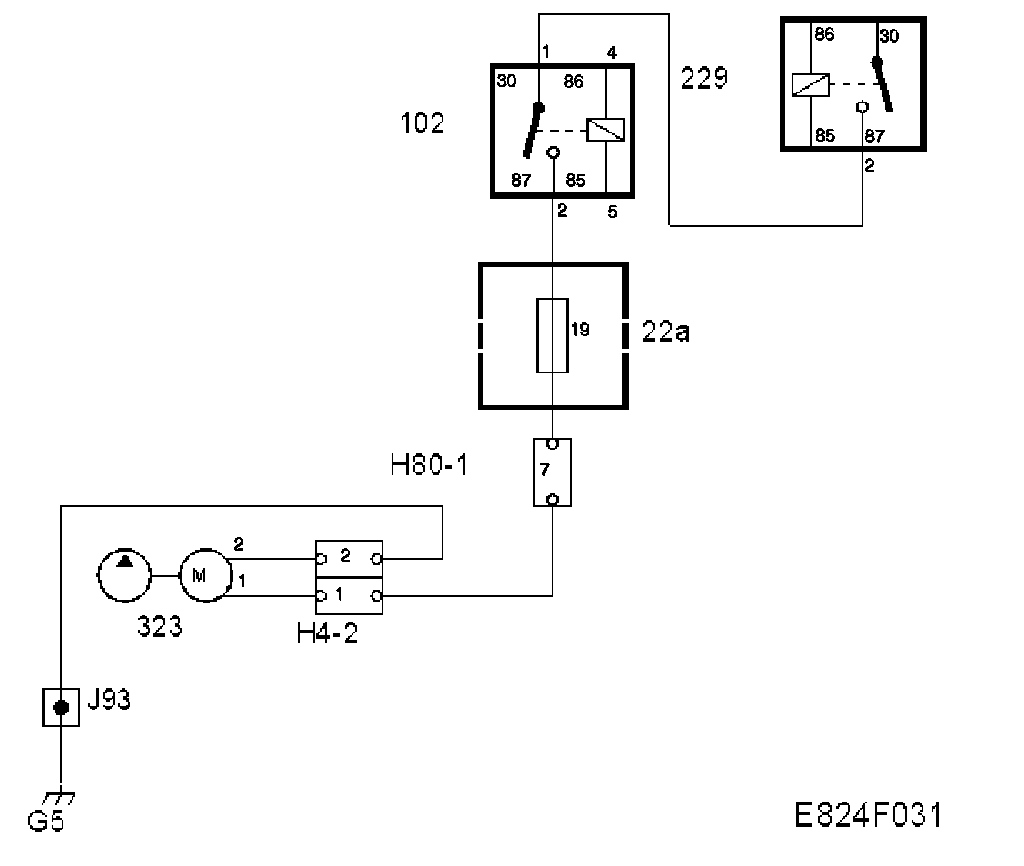

Check the Lead to the Pump

Check The Lead To The Pump









Unplug the connector:
- Fuel pump

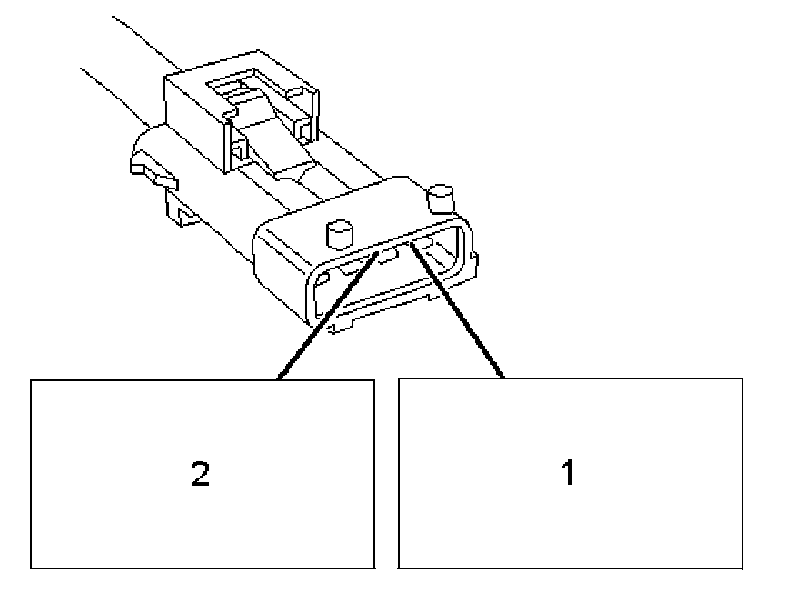

- Connect test lamp 86 11 857 to pins 1 and 2 of the male connector.





- Turn the ignition switch to the OFF position.





- Turn the ignition switch to the ON position.

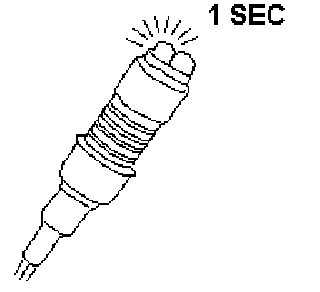

- The test lamp should light for 1 second.

Is the function correct?

NO - Rectifying the Lead - III

YES - Checking the Wiring Harness Up to the Fuel Pump
