Implementation of Driving Cycle

Implementation of Driving Cycle

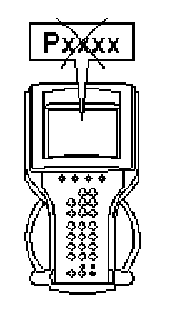

- Clear diagnostic trouble codes

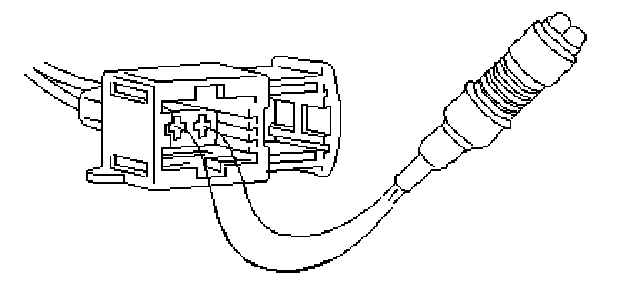

Unplug the connector:
- EVAP canister purge valve (321)
- Connect test lamp 86 11 857 to the female connector.

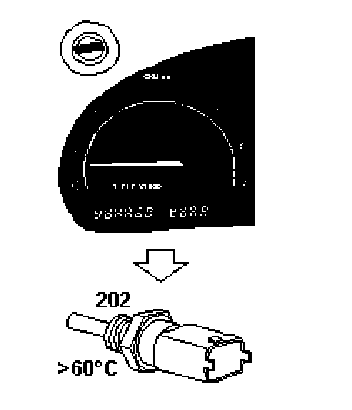

- Start the engine and let it idle until the coolant temperature exceeds 60°C.
- Read value: Purge Adaptation (Trionic).
- State what the diagnostic tool shows:

-15% to +15% - Performing A Driving Cycle (Continued)

Other value - Fault Not Rectified - II
