Trionic T7 V6 OBD II (B308E) VIN:- 039999
>>
Menu "Activation"
Menu "Activation"
Menu "Activation"

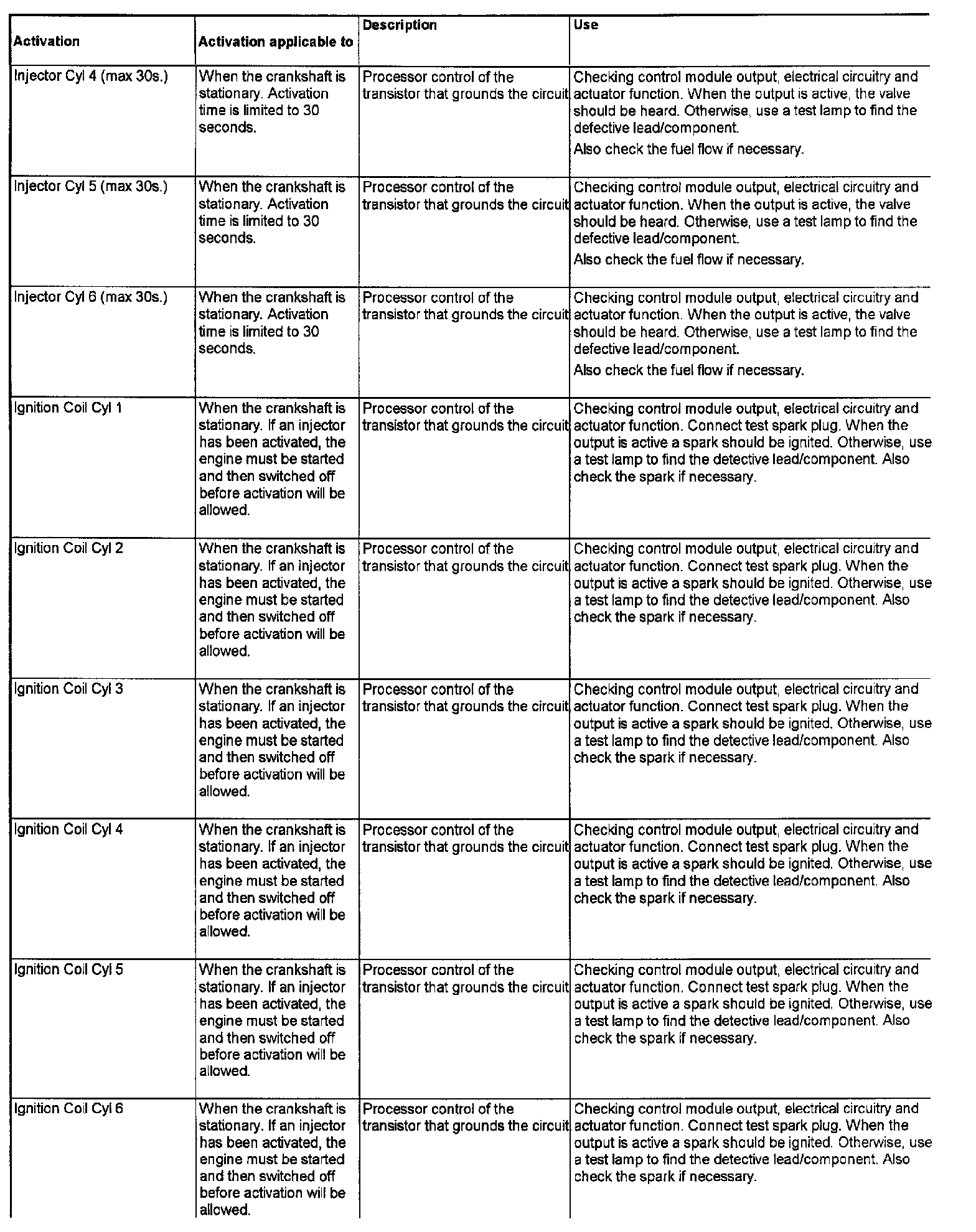

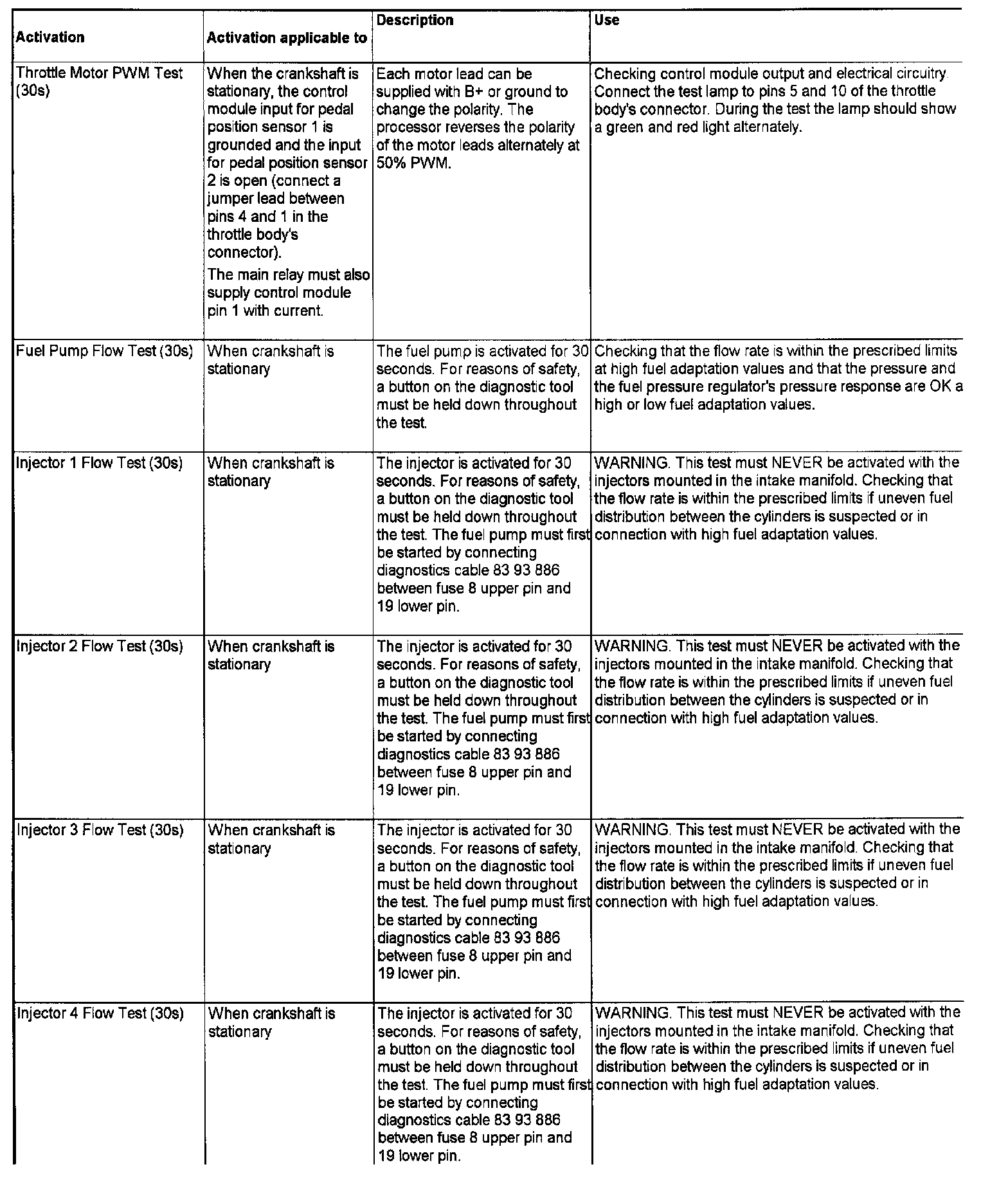

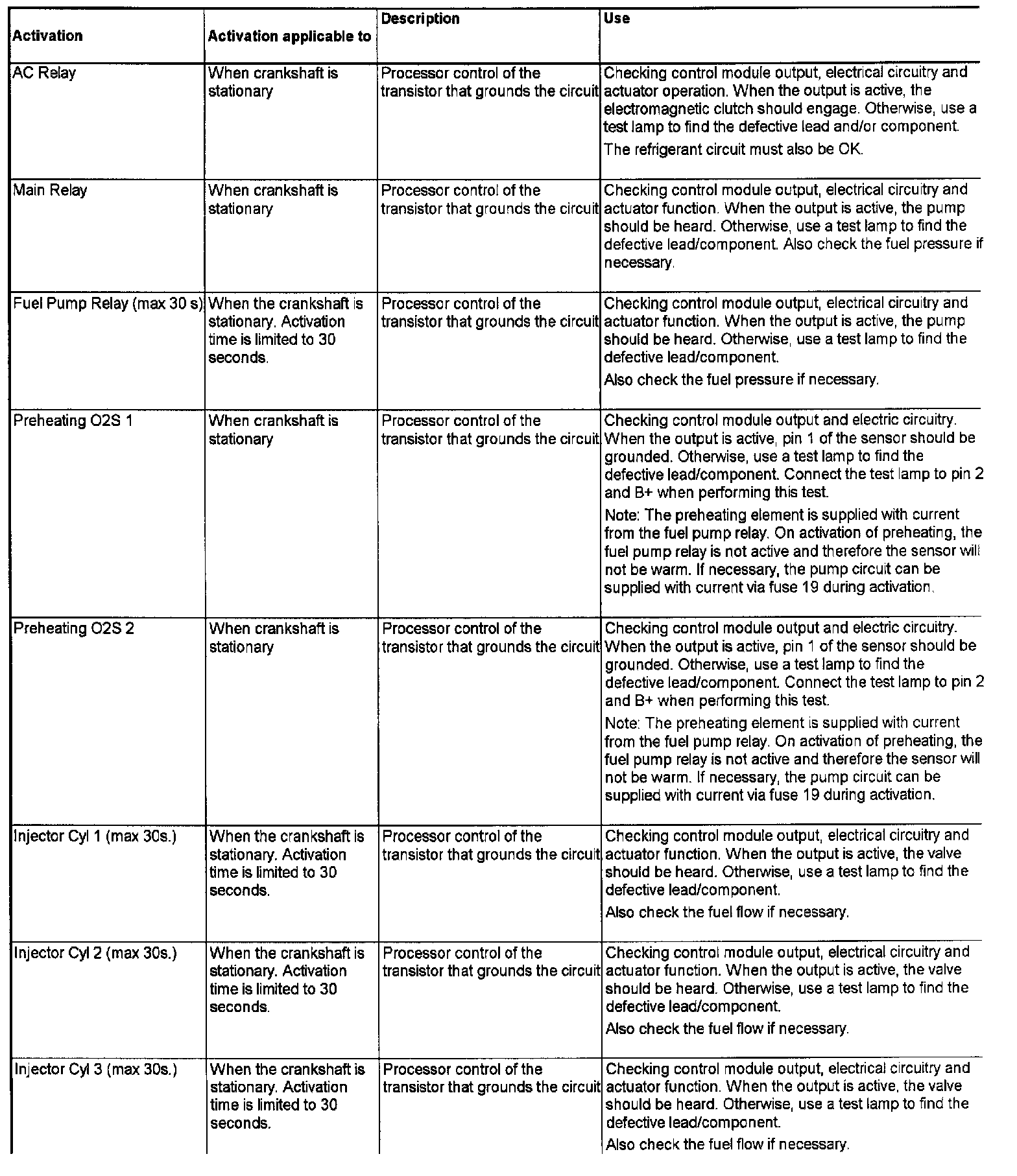

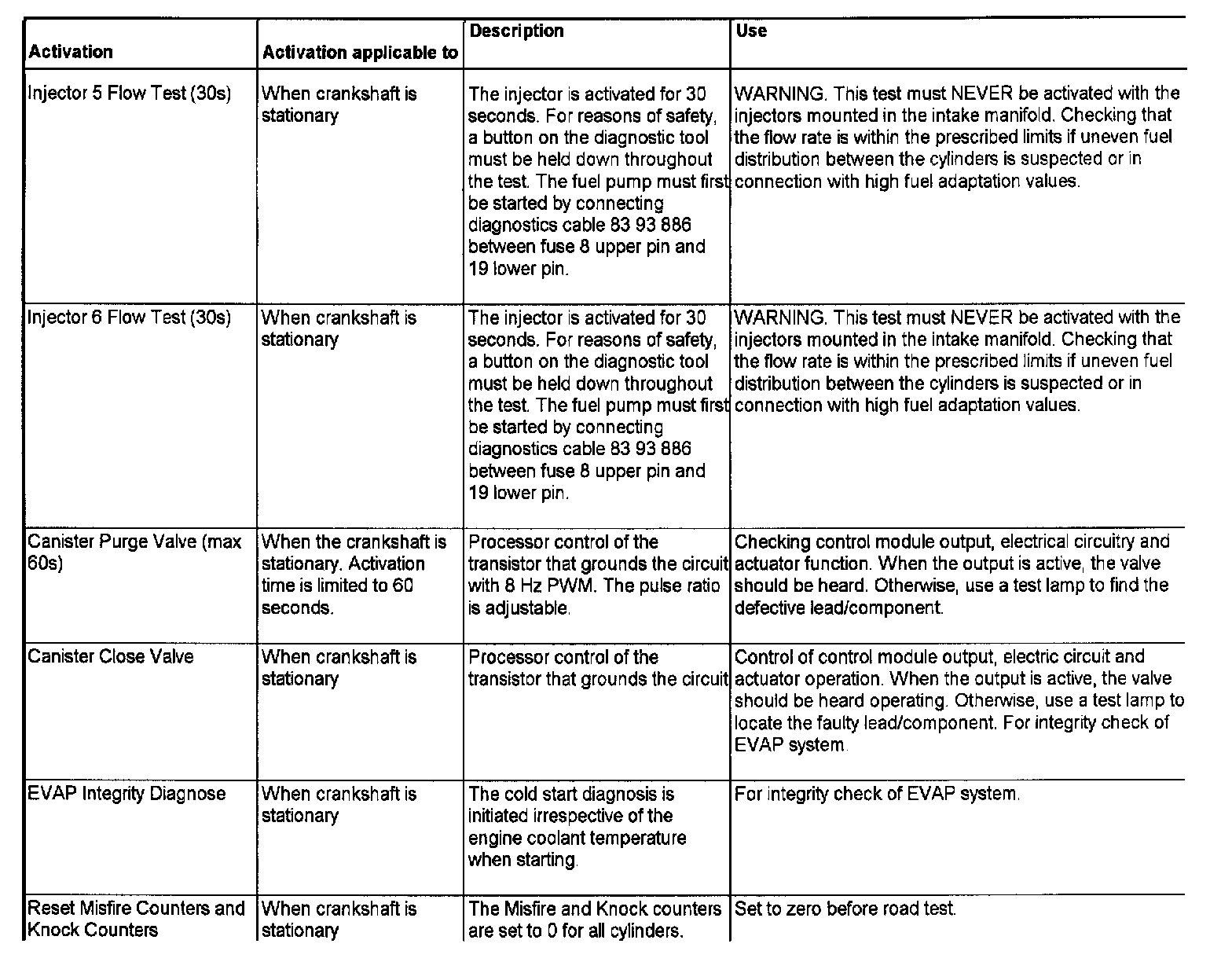

Chart 1 of 4
Chart 2 of 4
Chart 3 of 4
Chart 4 of 4
