Relay, Limp-Home Solenoid

To remove

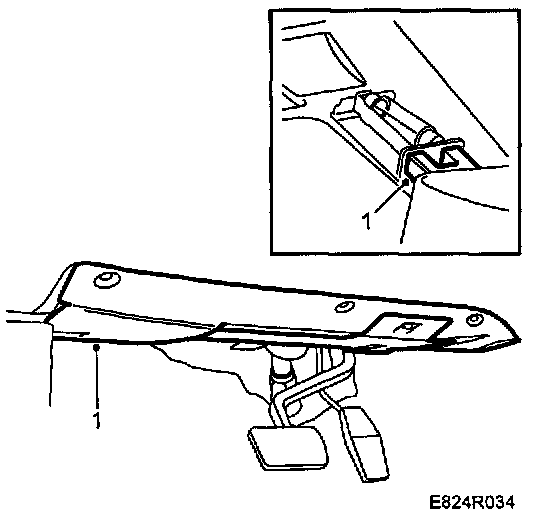

1 Remove the pedal bracket's cover by undoing the 3 screws and clip. Bend the cover down and carefully withdraw ii. Mind the leads running to the data link connector and the wiring for the lighting.

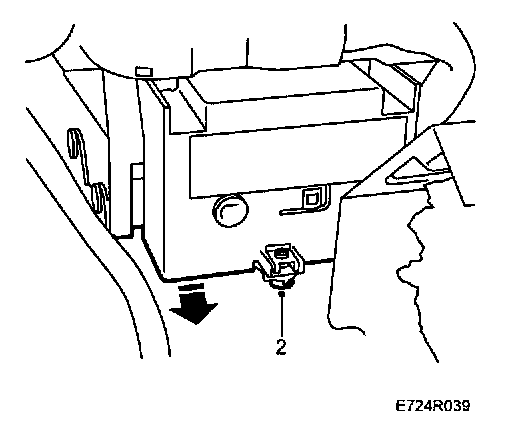

2 Remove the screw securing the relay box.





3 Bend the relay holder downwards.

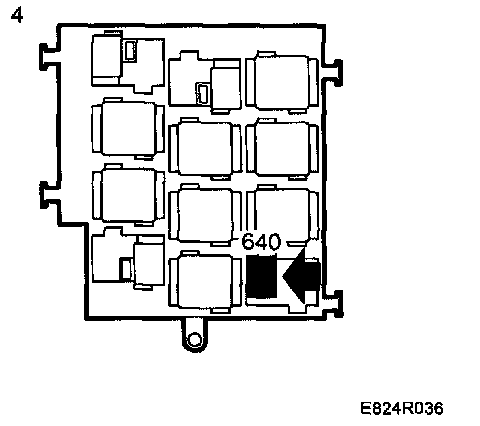

4 Carefully bend the relay catch aside and remove the relay.





To fit





1 Spray the contacts in the relay holder with Kontakt 61 (pan no.30 04 520) and fit the relay.
2 Bend the relay holder upwards to close the cover.





3 Tighten the screws to the relay box.





4 Replace the cables to the data link connector and diagnostic tool and the wiring to the lighting. Position the pedal bracket cover and tighten the 3 screws and clip.
