Brake Pedal Switch

To remove
1 Remove the pedal bracket's cover by undoing the 3 screws and clip. Bend the cover down and carefully withdraw it. Mind the leads running to the data link connector and the wiring for the lighting.





2 Carefully turn switch 1 90 ° clockwise and pull it out of the holder.





3 Unplug the connector.

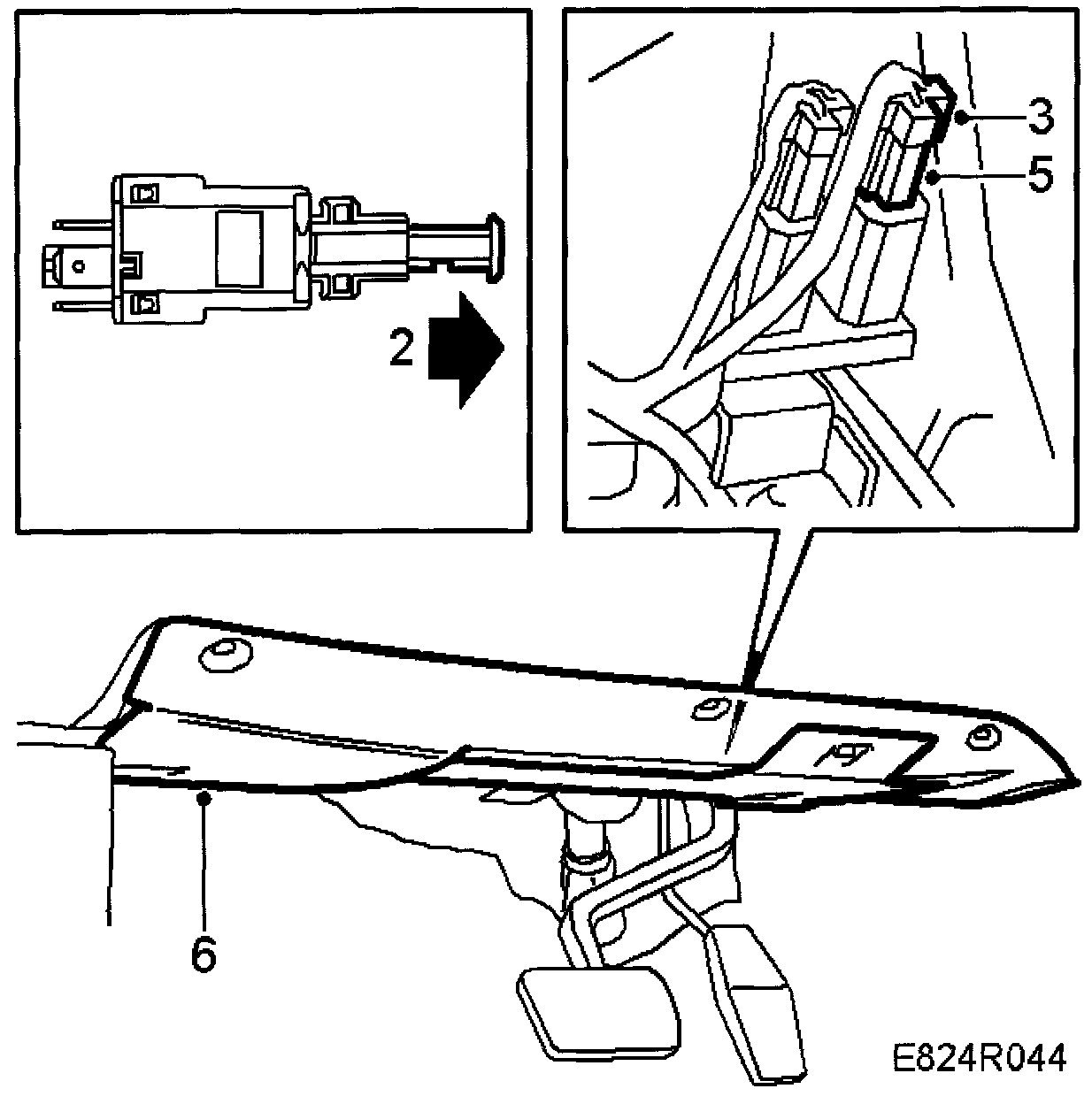

To fit





1 Spray the connector with kontakt 61 ( part no.30 04 520).
2 Carefully pull out the switch's pushrod to its stop position.
3 Depress the brake pedal and fit the switch.
4 Carefully release the pedal.
5 Plug in the connector.
6 Fit the pedal bracket's cover in reverse order.
