Home >> Saab >> 1999 >> 9-5 Wagon (9600) V6-3.0L Turbo (B308) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Exhaust Temperature Sensor >> Diagrams >> Electrical Diagrams >> EXH Temperature Sensor

EXH Temperature Sensor

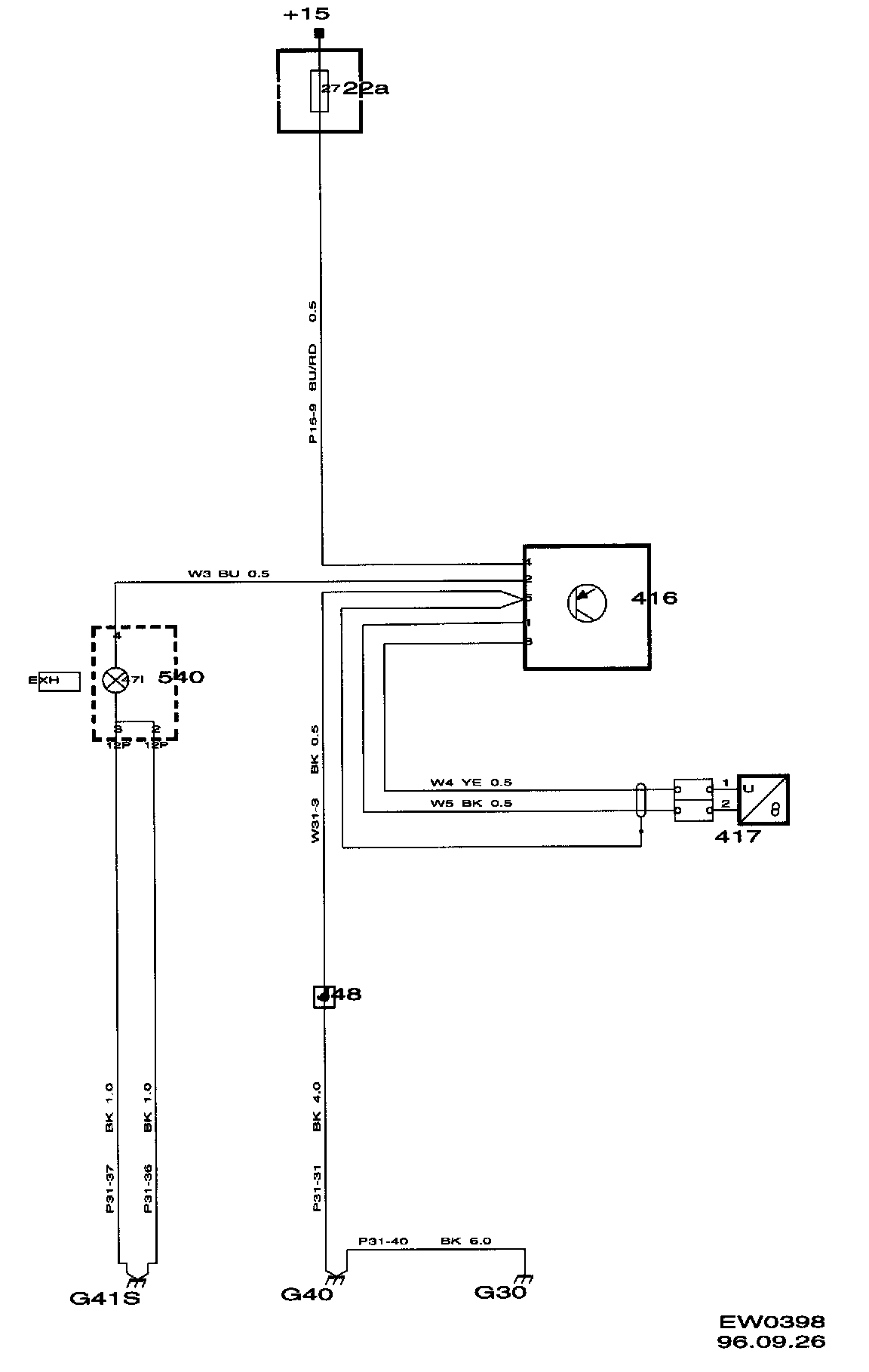

EXH Temperature Sensor Wiring Diagram
