Trionic T7 V6 LEC

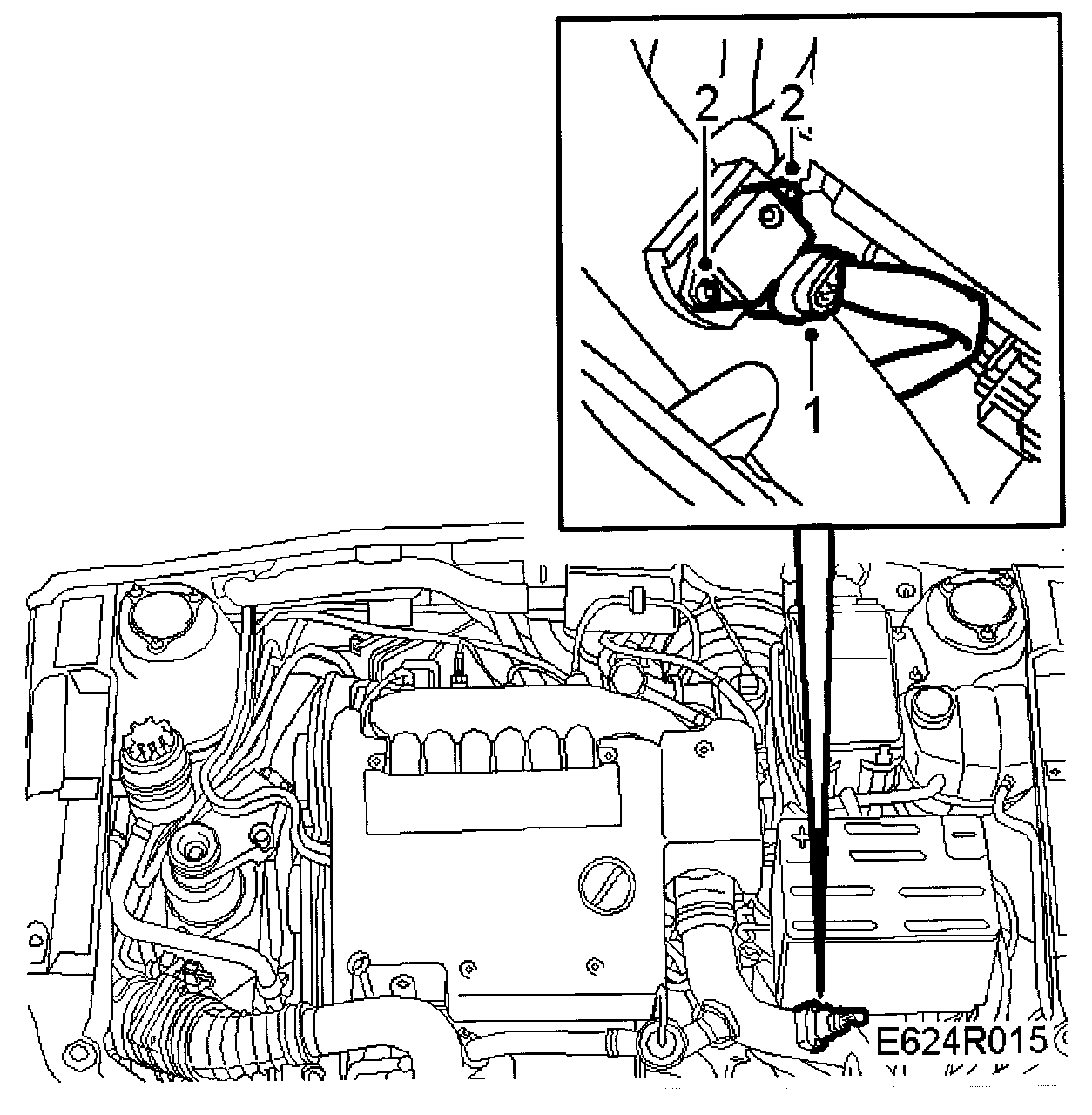

To remove





1 Unplug the sensor's connector.
2 Remove the sensor.

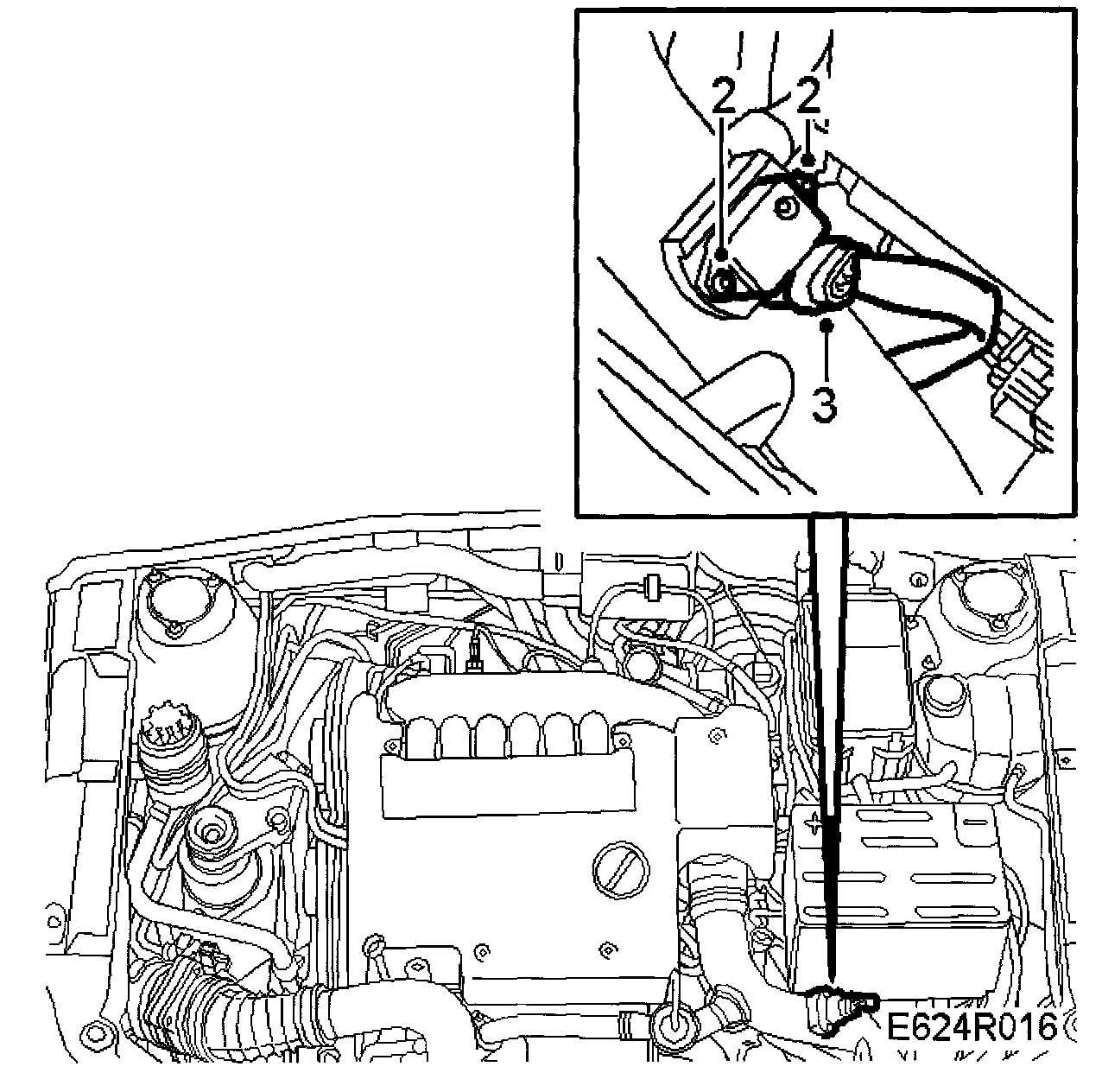

To fit





1 Check the O-rings and fit new ones if necessary.
2 Lubricate the threads of the sensor with Vaseline or the like. Fit the sensor.
3 Spray the connector with Kontakt 61, part no. (16) 30 04 520.
Plug in the connector.
