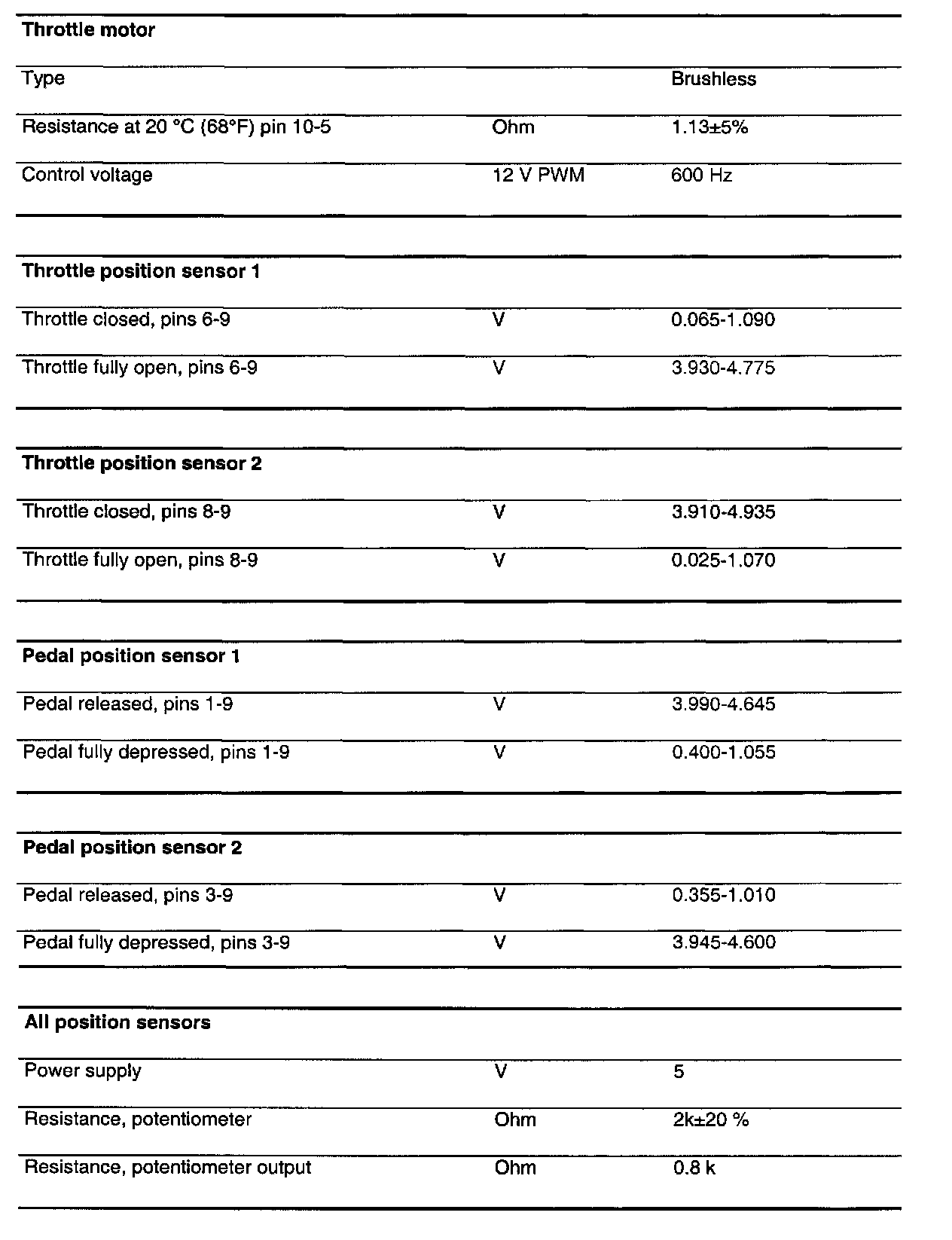

Electronic Throttle Actuator: Specifications

All potentiometers are connected in parallel between 5V and ground. The total resistance is therefore about 500 ohms ± 20%.
Resistance measurement should be avoided when carrying out fault diagnosis. Use the voltages for the position sensor concerned instead.
