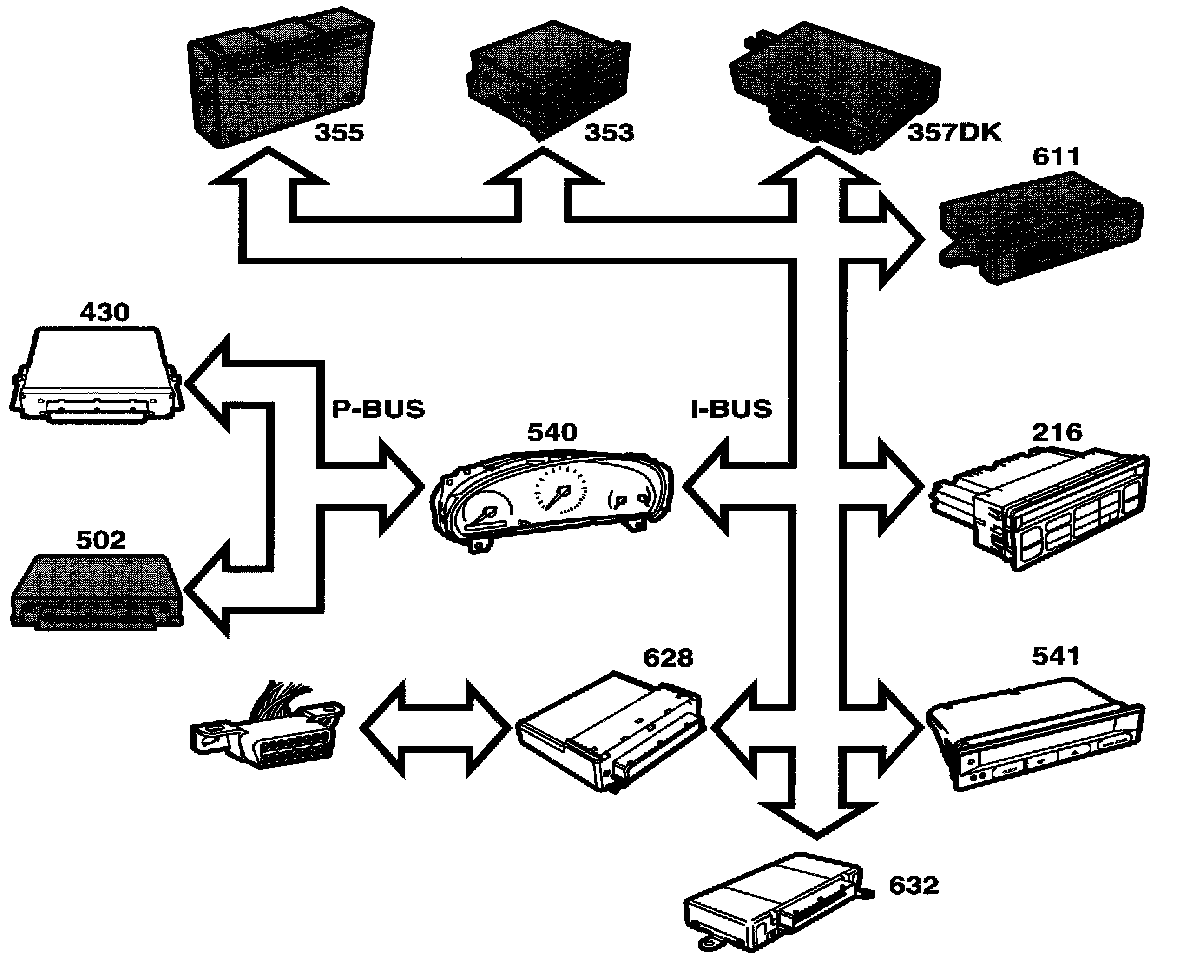

Control Module Inputs, Bus

Control Module Inputs, Bus

- Rear lights LH (on/off) from TWICE (632)
- Rear lights RH (on/off) from TWICE (632)
- Driver's door (open/closed) from TWICE (632)
- Passenger door (open/closed) from TWICE (632)
- Read door LH (open/closed) from TWICE (632)
- Read door RH (open/closed) from TWICE (632)
- Boot lid/tailgate (open/closed) from TWICE (632)
- Hazard flashers (on/off) from TWICE (632)
- A/C (on/off) from ACC (216)
- Electrically heated rear window (on/off) from ACC (216)
- Vehicle speed (km/h) from MIU (540)
- Rheostat value (%) from SID (541)
- Rheostat Night Panel (%) from SID (541)
- Night Panel (on/off) from SID (541)
- Outside temperature (°C) from SID (541)
- Engine running (on/off) from TRIONIC (430)
- Coolant temperature (°C) from TRIONIC (430)
- Diagnostics communication
