Exterior Lighting Module: Description and Operation

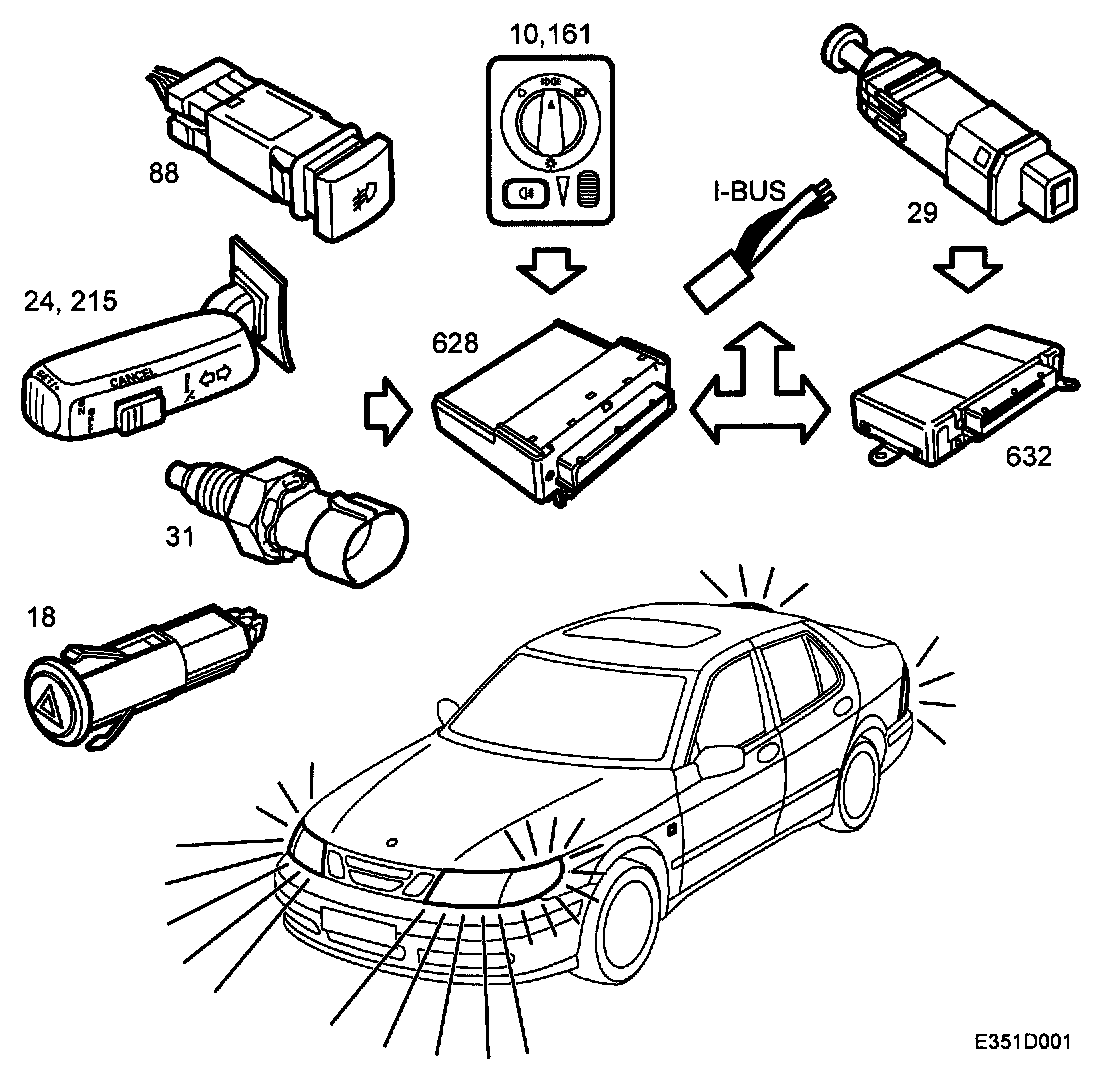

System Overview, External Lighting
^ Switch, front fog lights (88)
^ Light switch (10)
^ Switch, rear fog lights (161)
^ Dipswitch (24, 215)
^ Reversing-light switch (31)
^ Control module, DICE (628)
^ Control module, TWICE (632)
^ Brake light switch (29)
^ Switch, hazard flashers (18)

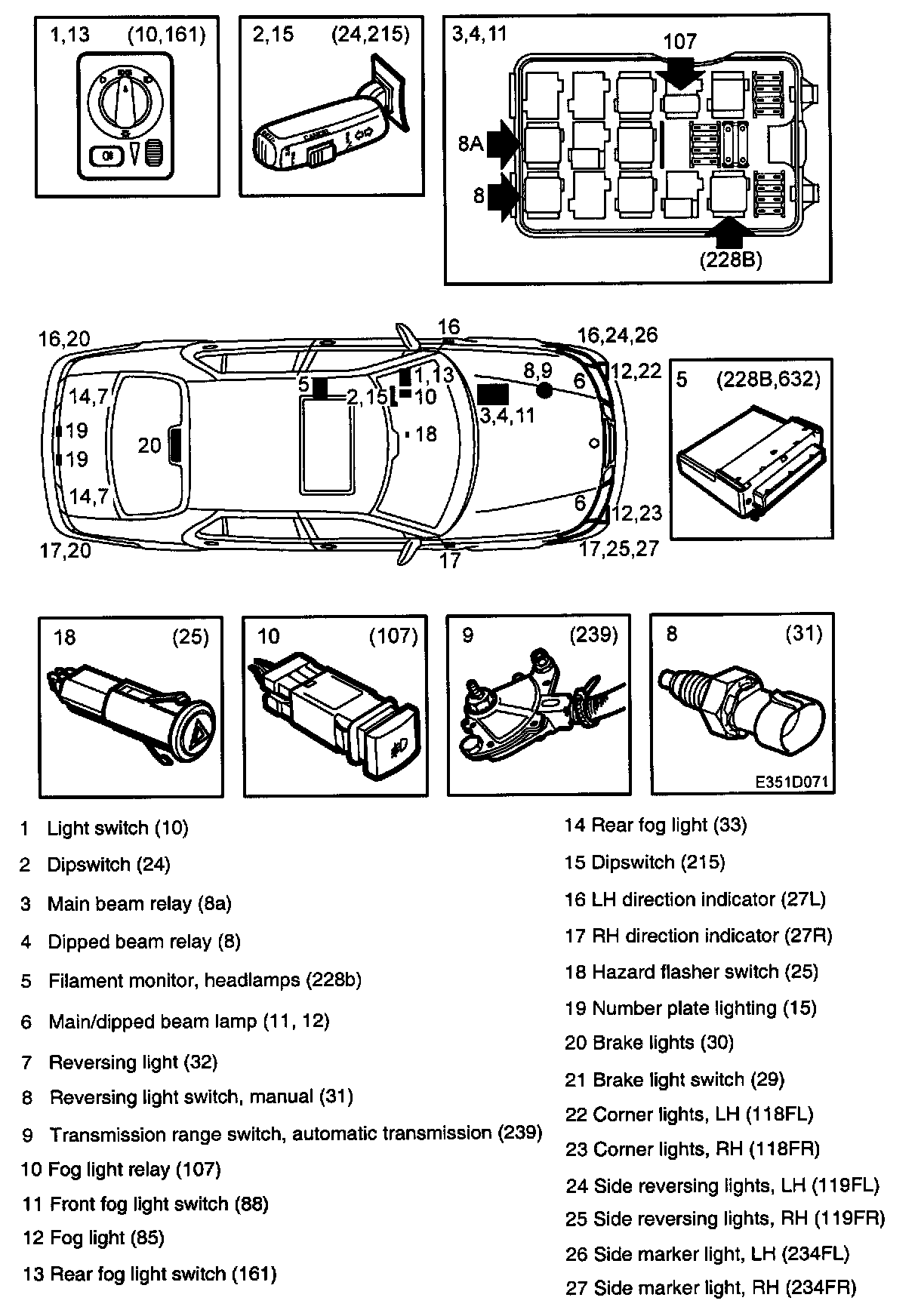

Main Components, Exterior Lighting 4D:
Main Components, Exterior Lighting 5D:
