Fog Lights

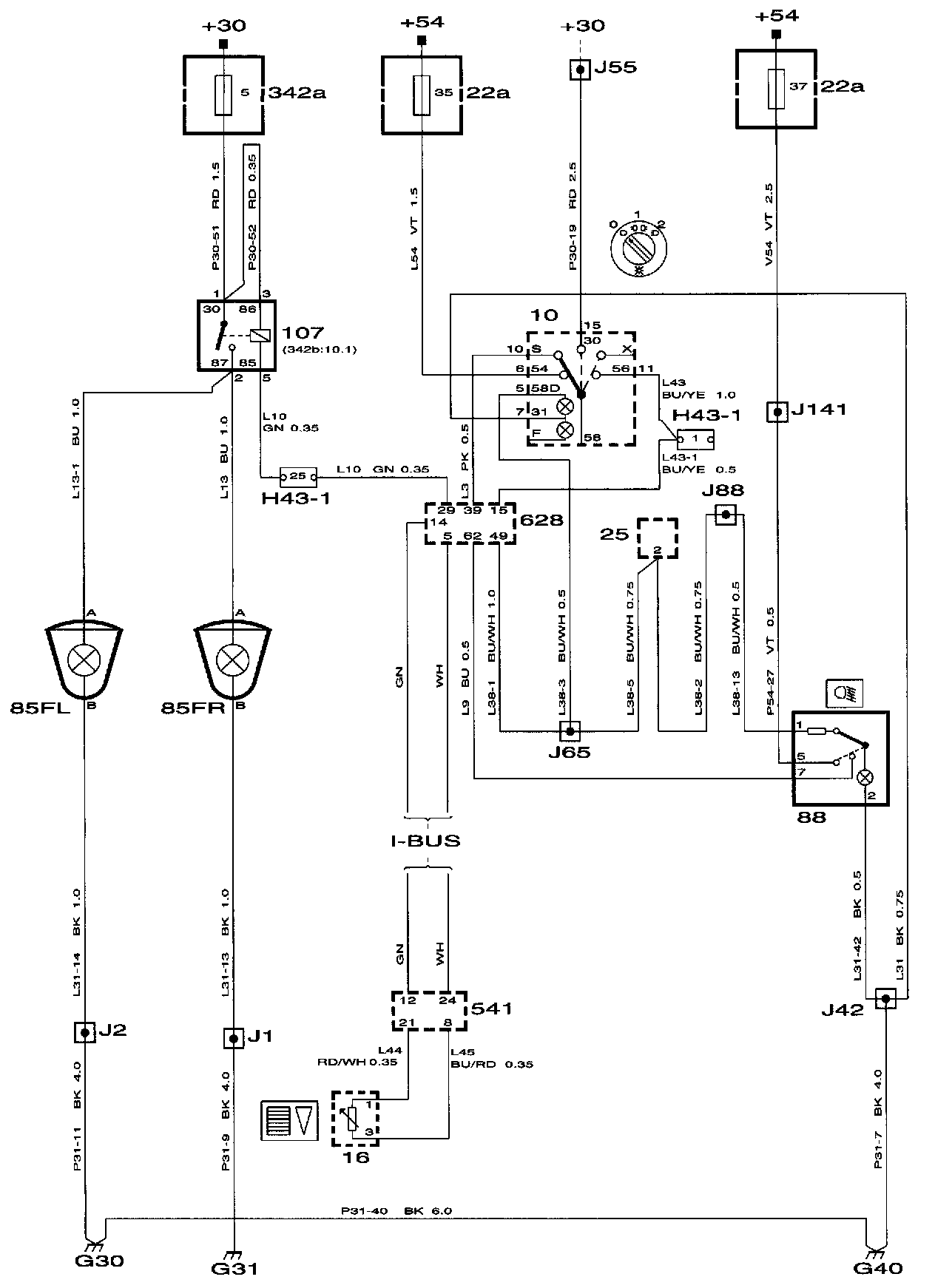

Fog Lights Wiring Diagram

Components
10 Lights switch on dashboard between steering wheel and driver's door
16 Rheostat for instrument lighting in light switch panel between steering wheel and driver's door
22a Main fuse board on side of dashboard by driver's door
25 Hazard flasher switch by centre dashboard outlet
85FL Fog light lamp in LH side of spoiler
85FR Fog light lamp in RH side of spoiler
88 Fog light switch in 3-switch panel between steering wheel and driver's door
107 Fog light relay on main relay board in engine bay
342a Main fuse board behind battery
541 SID in centre of dashboard
628 DICE control module on main relay board in dashboard

Connectors
H43-1 White connector in connector bracket under LH A-pillar

Crimp connections
J1 Approx. 160 mm from grounding point G31
J2 Approx. 50 mm from grounding point G30 branching point towards ABS control module
J42 (LHD) Approx. 50 mm from grounding point G40 branching point towards light switch
J42 (RHD) Approx. 200 mm from light switch branching point towards grounding point G42
J55 (LHD) Approx. 125 mm from DICE branching point towards H43-1
J55 (RHD) Approx. 130 mm from grounding point G42 branching point towards DICE
J65 (LHD) Approx. 40 mm from MIU (20-pin connector) branching point towards its 12-pin connector
J65 (RHD) Approx. 210 mm from MIU (12 pin connector) branching point towards the heater housing
J88 (LHD) Approx. 10 mm from grounding point G41S branching point towards SID
J88 (RHD) Approx. 90 mm from hazard flasher switch branching point towards MIU
J141 (LHD) Approx. 60 mm from LH speaker branching point in dashboard towards main fuse board
J141 (RHD) Approx. 180 mm from MIU (20-pin connector) branching point towards DICE

Grounding points
G30 On side plate in front of LH wheel housing
G31 On RH structural member behind headlamp
G40 In cabin on LH side of knee member
