Tech 2 Menu Structure, Values, Activate, Adj, Program, Sys Info

Tech 2 menu structure
Diagnostic Trouble Codes (DTC)
Read Values / Activate
Adjustment
Programming
System Information

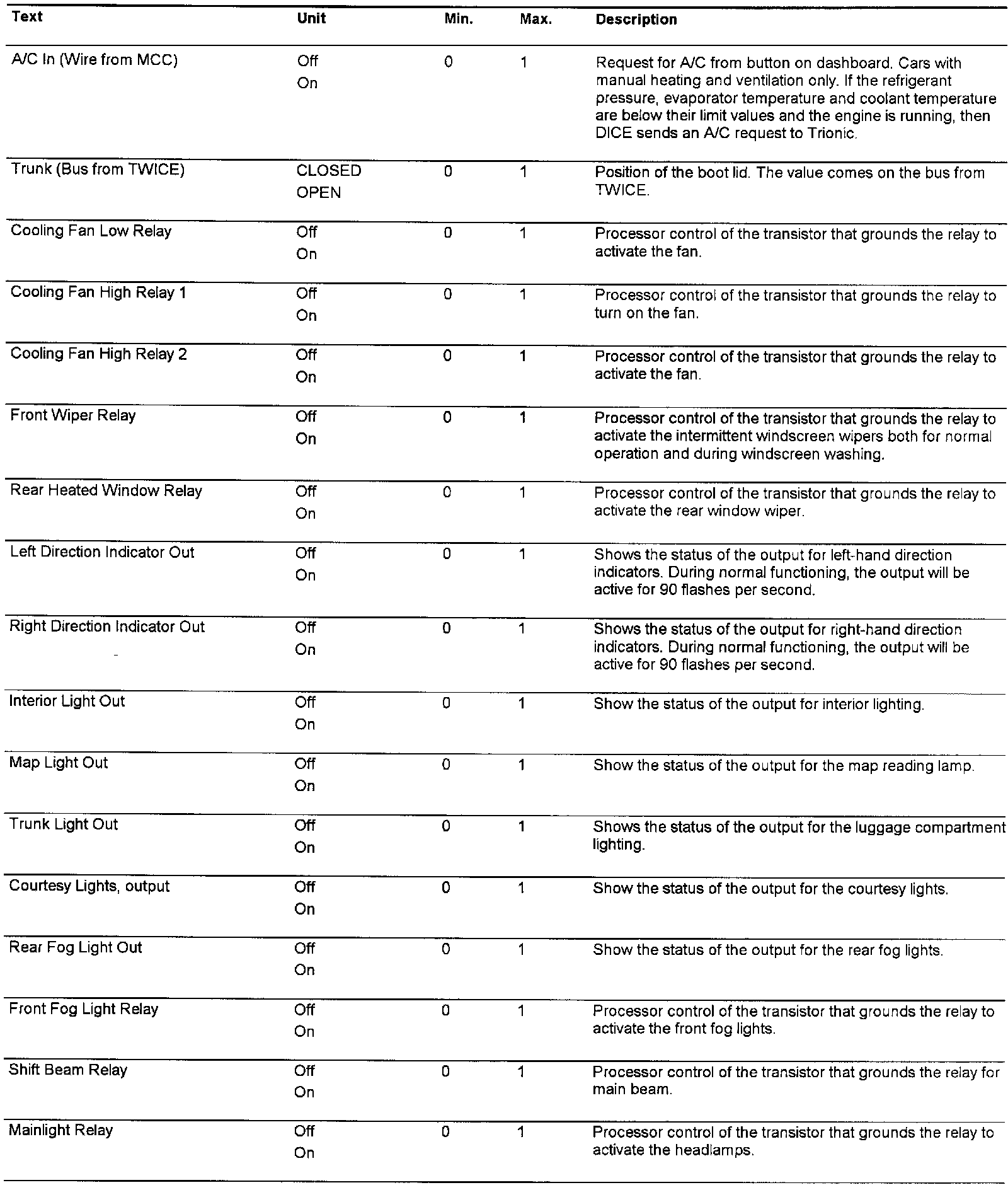

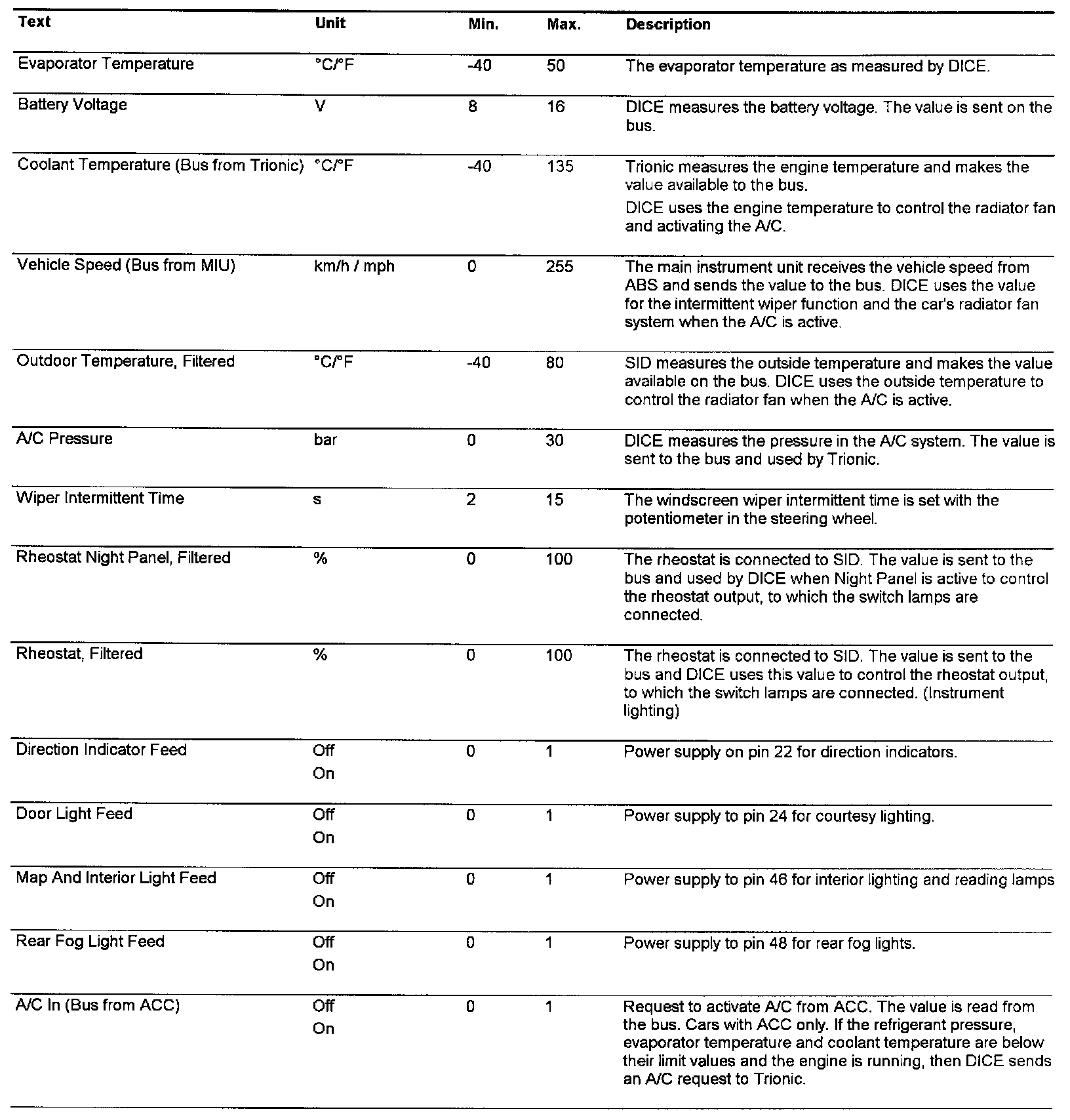

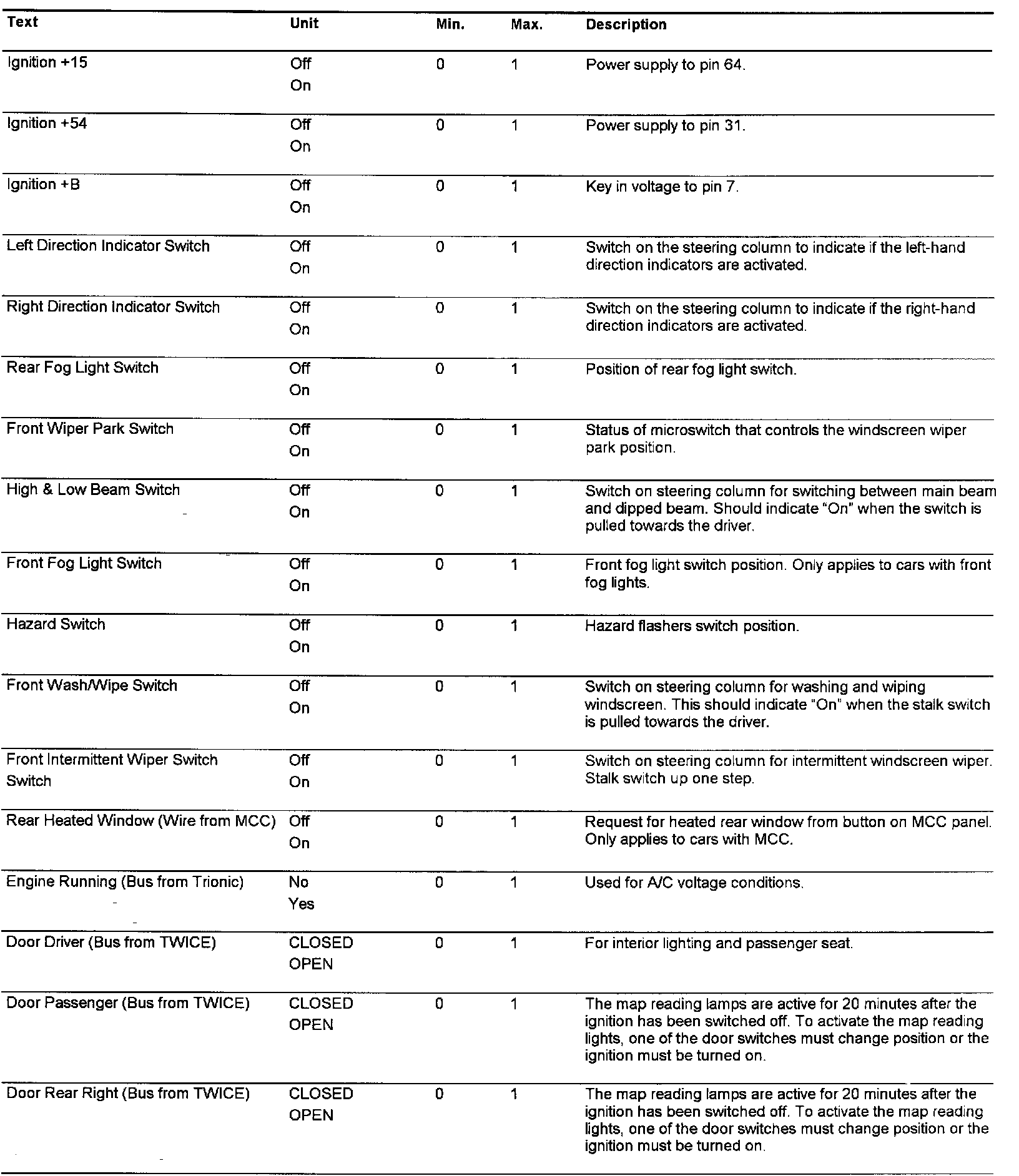

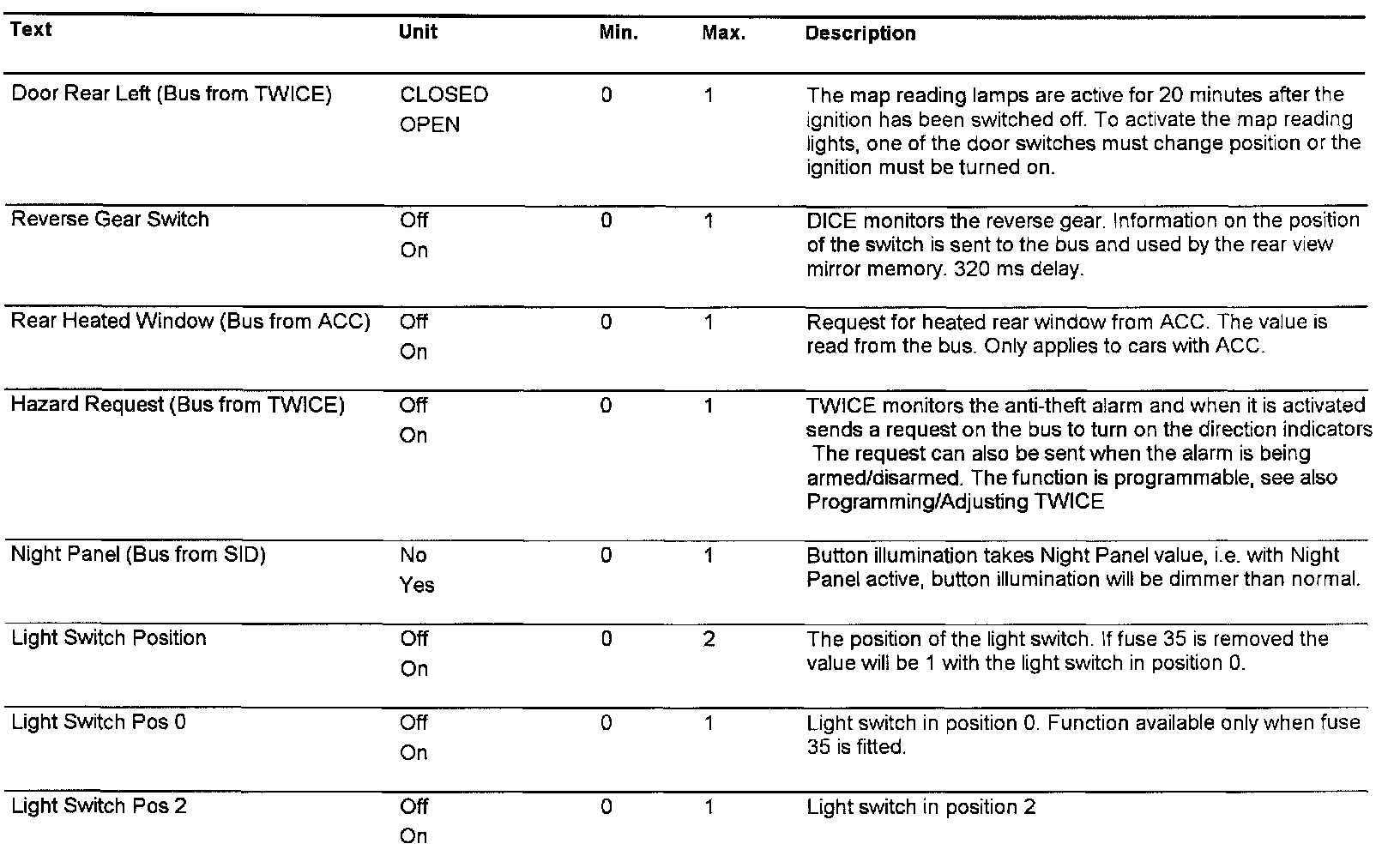

Menu "Read Values"

Part 1:

Part 2:

Part 3:

Part 4:

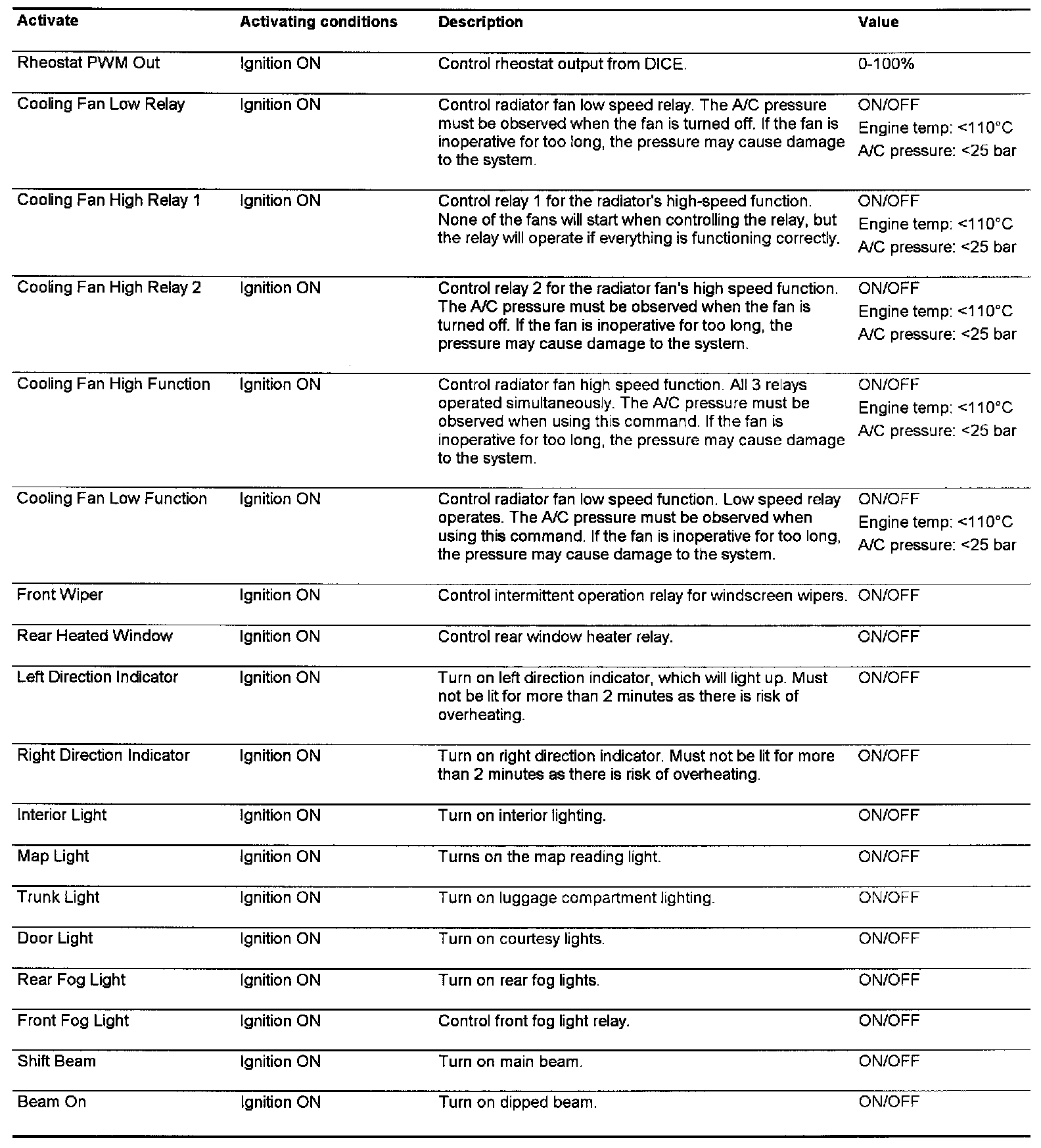

Menu "Activate"





Menu "Adjustment"

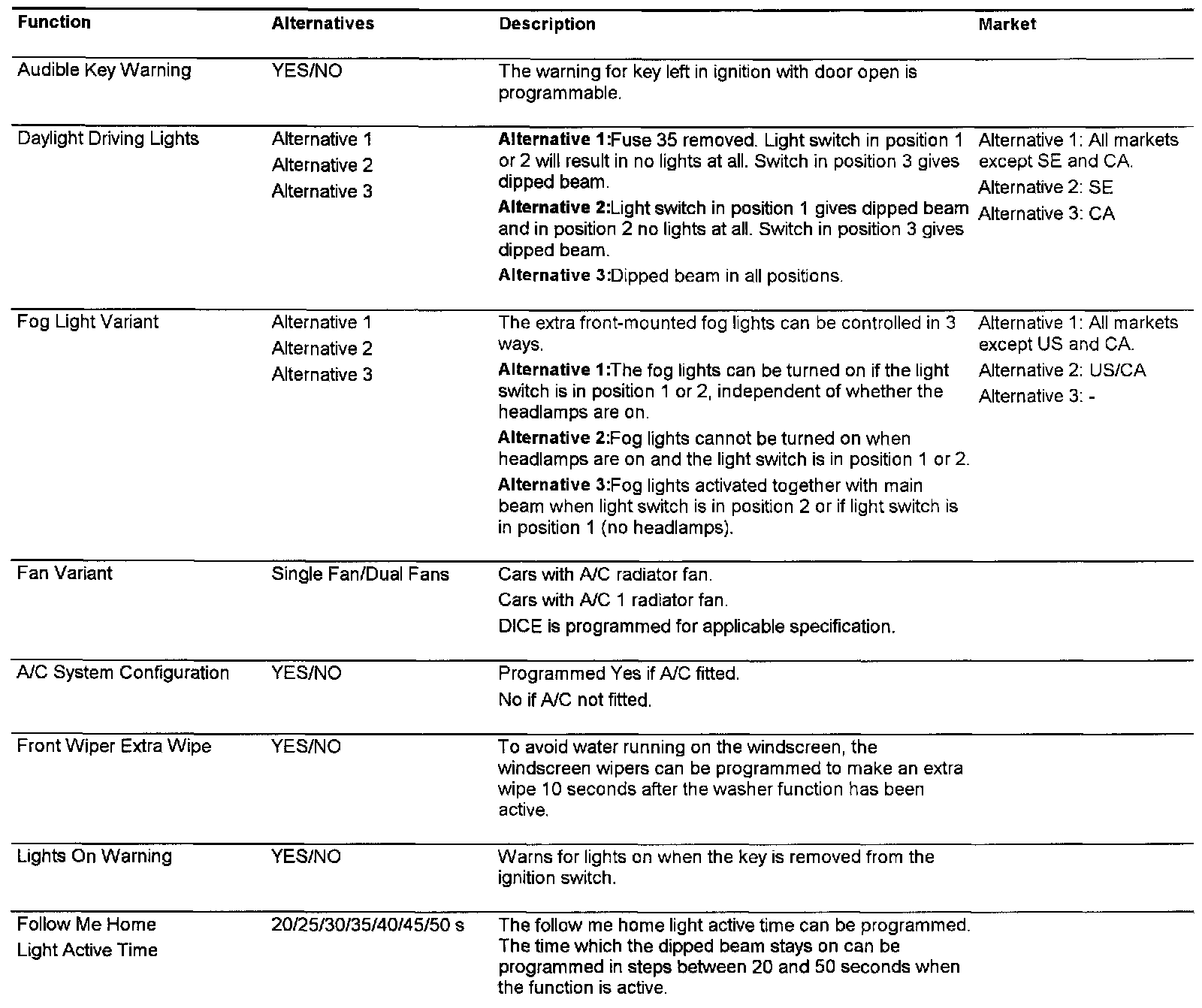

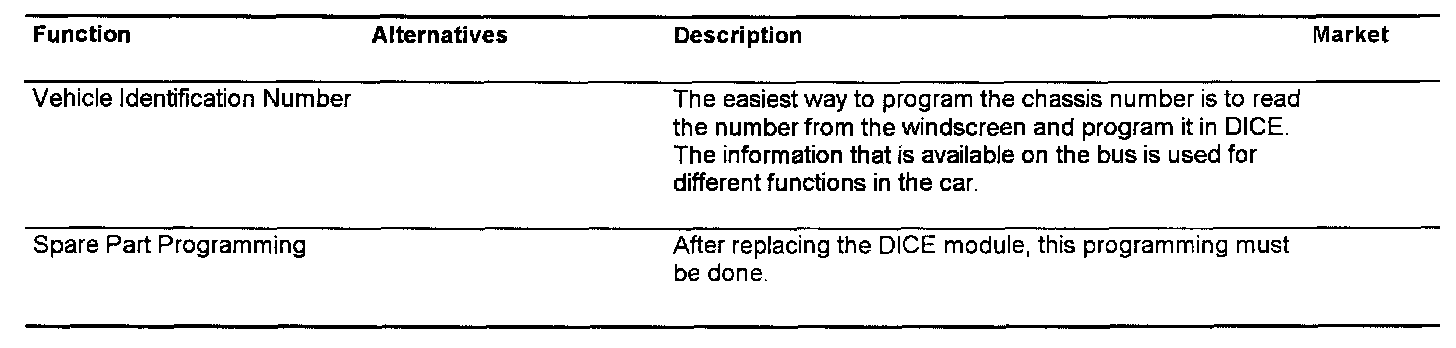

Menu "Programming"





Menu "System Information"

Text Function
Saab Pan Number Shows the SAAB 7-digit part number for the control module.
Vehicle Identification Number Displays SAAB's 17 digit chassis number.
Hardware Version Number: Displays the control module's x digit version number.
Software Version Number: Displays the software version.
