Electronic Unit

Electronic Unit

To Remove





1 Remove the main instrument unit.

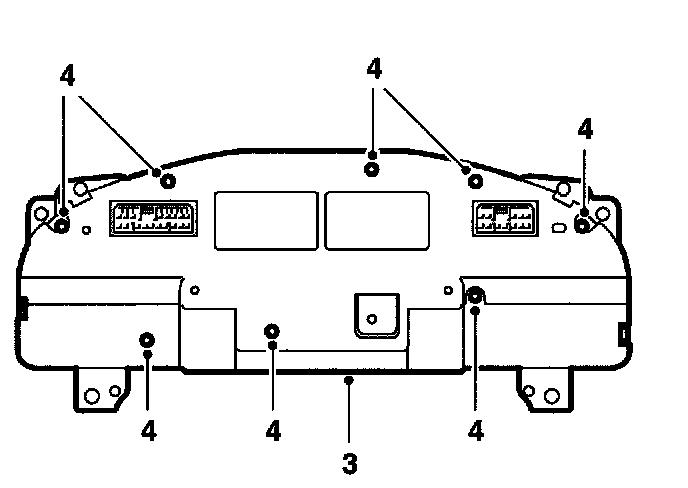

2 Undo the eight screws securing the covers over the back section. Note the locations of the four long screws and the four short screws.
3 Release the retainer (two clips) for the back section cover and remove the cover.

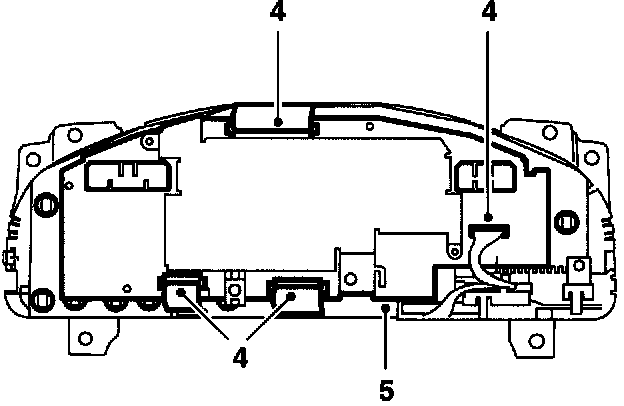

4 Unplug the connector and the three contact foils.
5 Remove the electronic unit.

To Fit





1 Fit the electronic unit.

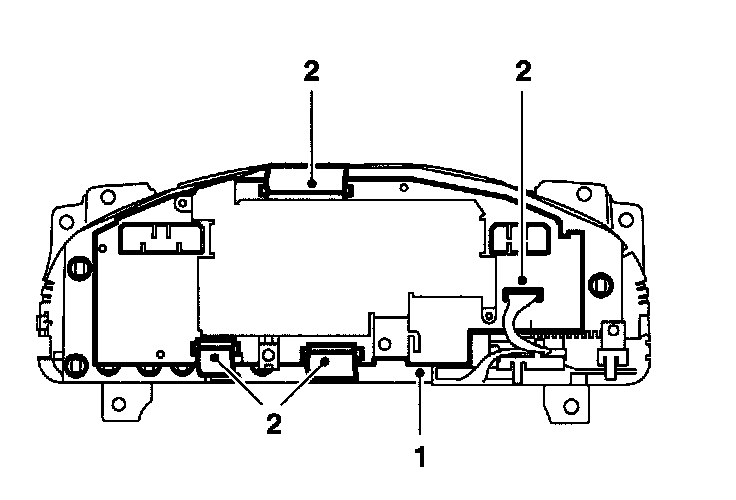

2 Plug in the foils and the connector

NOTE: Make sure no cables are pinched.





3 Fit the electronic unit.
4 Fit the cover over the electronic unit, eight screws.
5 Fit the main instrument unit.
