DICE Control Module

Control Module

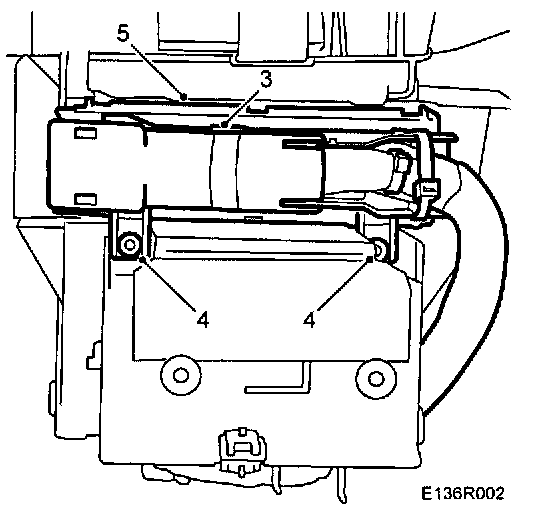

To remove

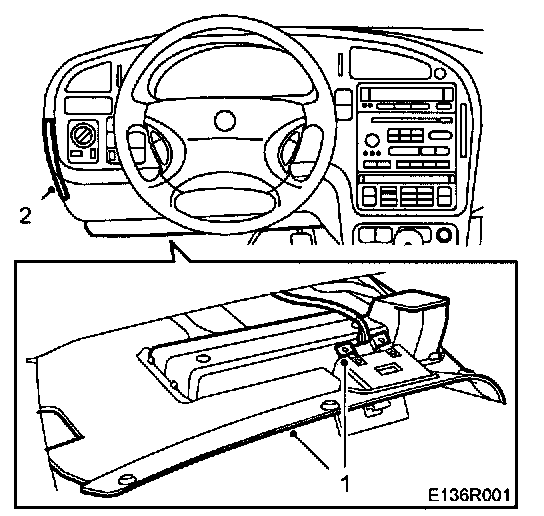

1. Remove lower panel from driver's side.
2. Remove fuse cover.
3. Unplug the connector from on the control module.





4. Remove 2 screws holding DICE.
5. Pull the DICE control module straight out.

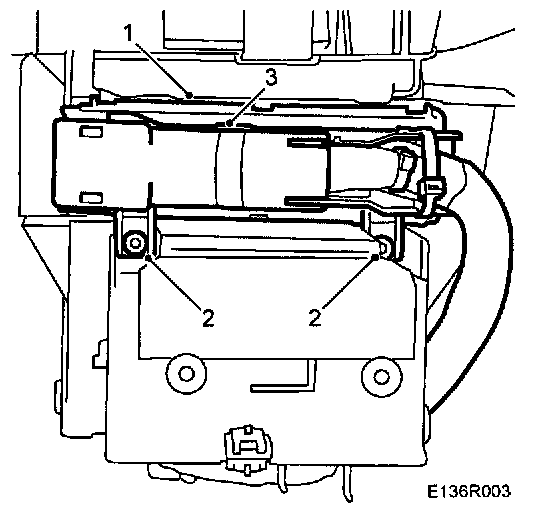

To fit





1. Fit the control module in place.
2. Screw tight with 2 screws.
3. Plug in the connector to the control module.
4. Refit the fuse cover.





5. Refit the lower panel.
6. Once the DICE control module has been changed, it must be programmed in the car. See Programming.
